Fuel Pump Control Circuit: Wiring Diagram

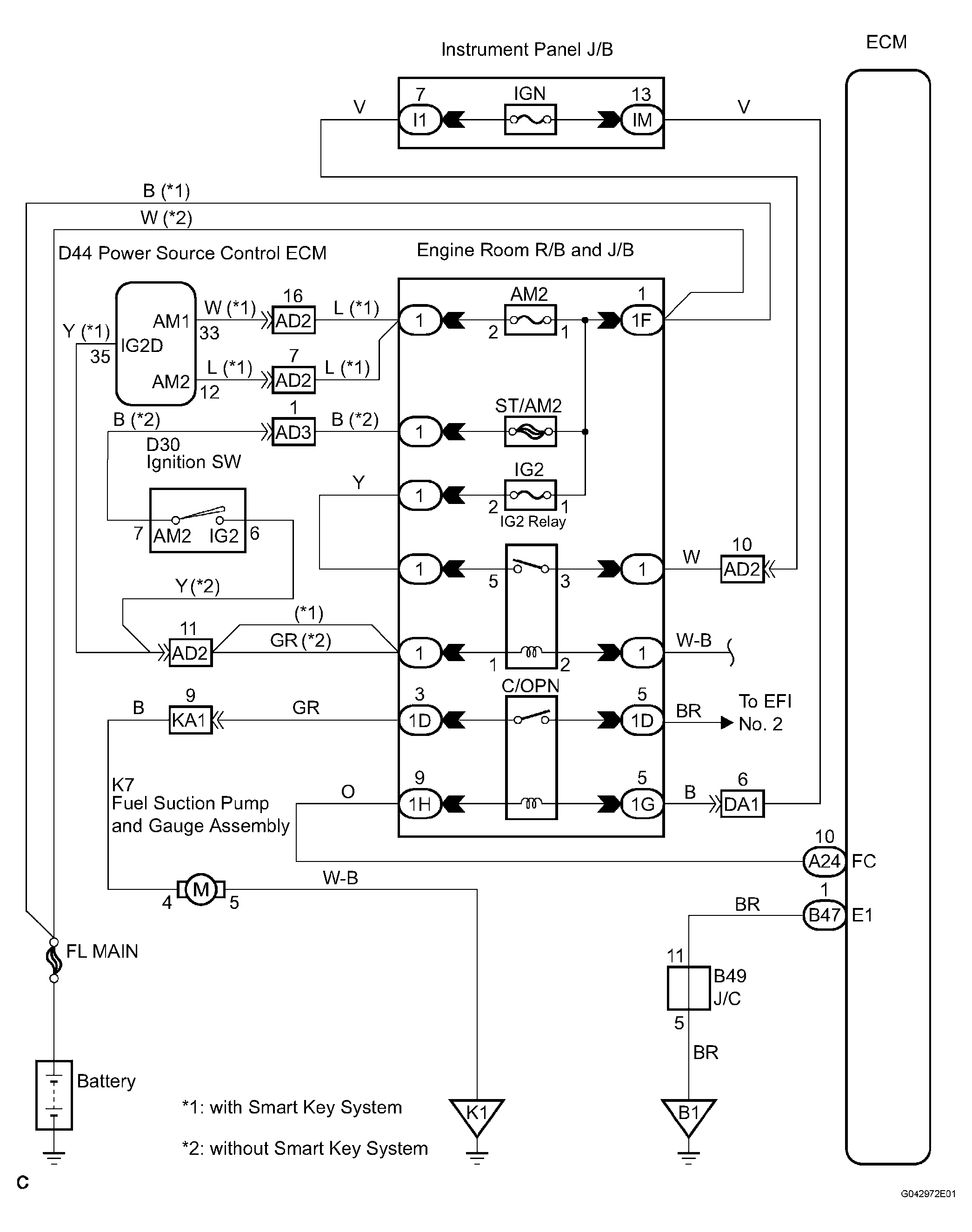

Fig 1: Fuel Pump Control Circuit Wiring Diagram

G04375211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
