Fuel Injector, Intake Manifold: Removal

PREVENT GASOLINE FROM SPILLING OUT
DISCONNECT BATTERY NEGATIVE TERMINAL
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See REMOVAL )
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER RH (See REMOVAL )
REMOVE WINDSHIELD WIPER MOTOR & LINK ASSEMBLY (See REMOVAL )
REMOVE COWL TOP PANEL OUTER (See step 5 under REMOVAL )
REMOVE V-BANK COVER SUB-ASSEMBLY

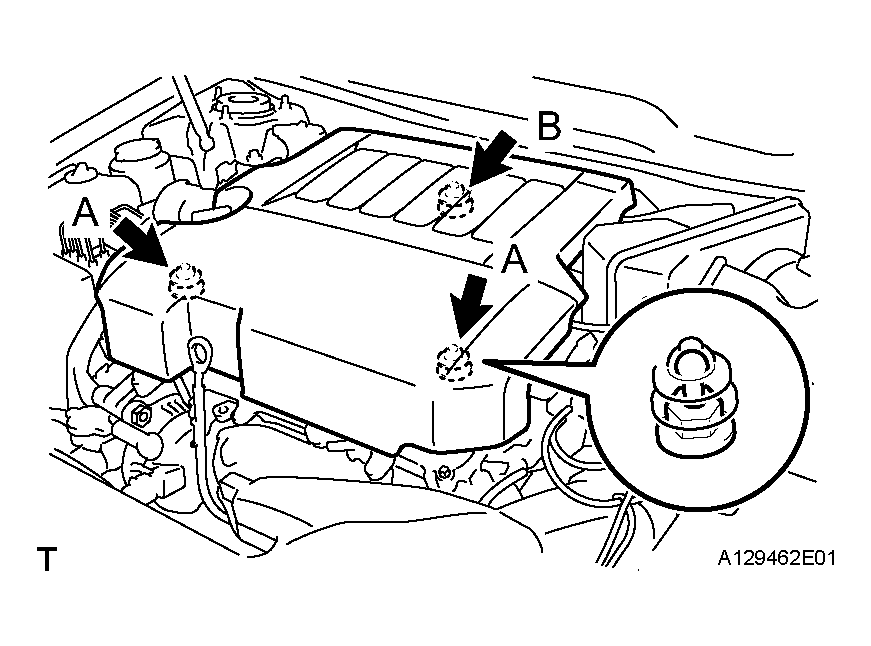

1. Disengage the 3 clips and remove the v-bank cover.
  NOTE: Be sure to disengage the clips in the order from A to B.

  Fig 1: Removing Clips And V-Bank Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

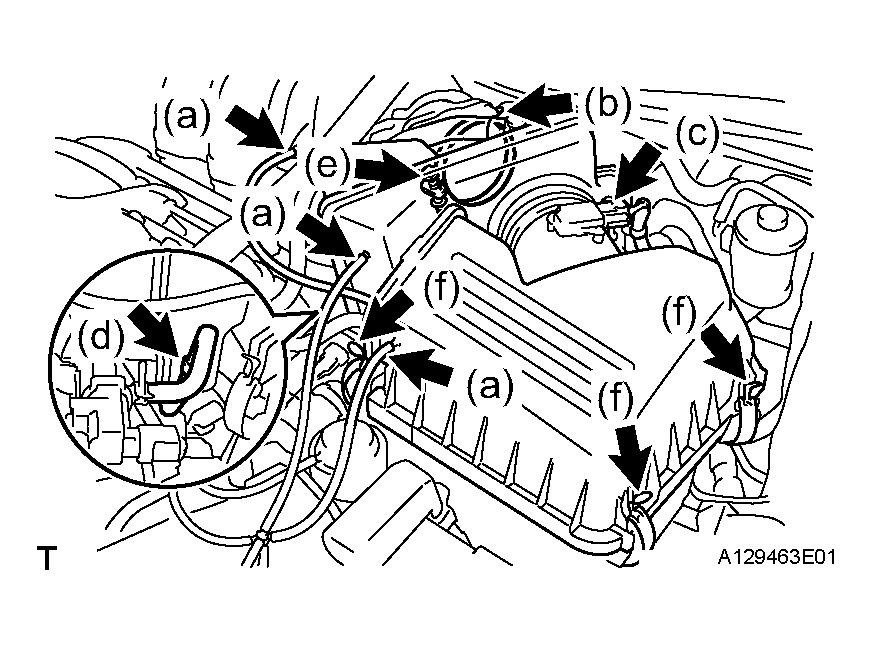

REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Disconnect the 3 vacuum hoses.
2. Disconnect the ventilation hose No.1.
3. Disconnect the air flow meter connector.
4. Separate the fuel vapor feed hose No.1.
5. Loosen the hose clamp bolt.
6. Remove the 3 clamps and air cleaner cap with air cleaner hose.
REMOVE INTAKE AIR SURGE TANK

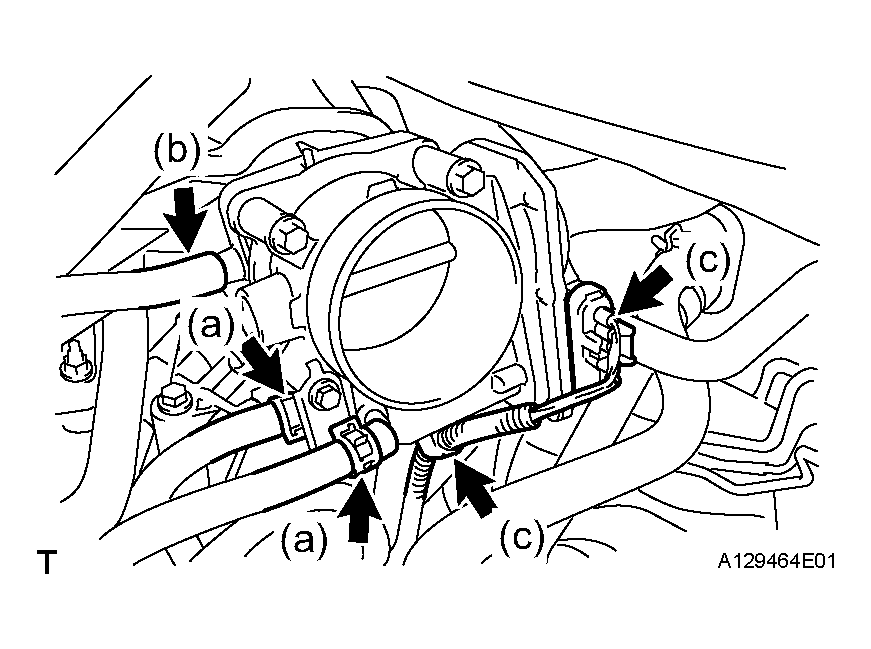

1. Disconnect the 2 water by-pass hoses from the throttle w/ motor body assembly.
2. Disconnect the vapor feed hose.
3. Disconnect the throttle w/ motor body assembly connector and clamp.

  Fig 3: Disconnecting Water By-Pass Hoses From Throttle W/ Motor Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

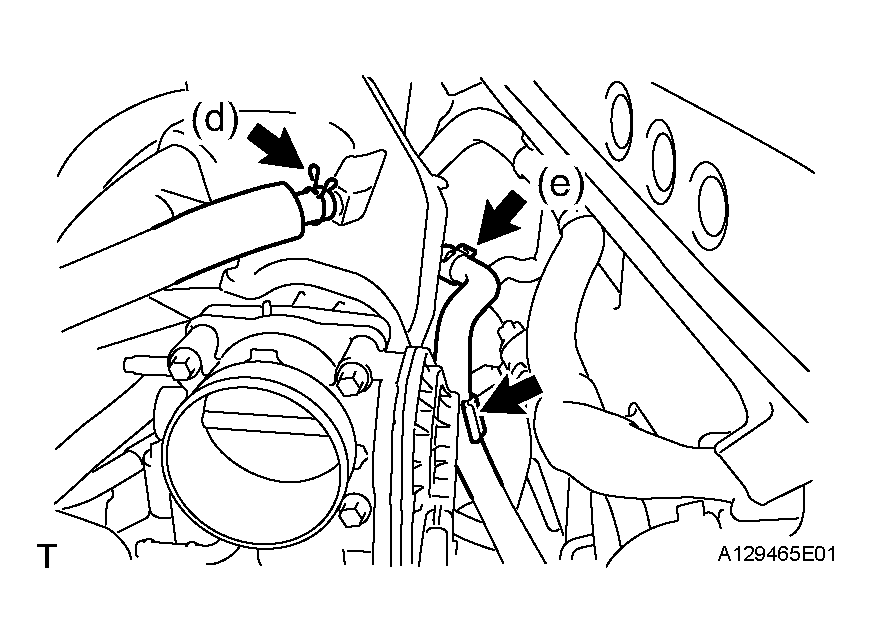

4. Disconnect the ventilation hose No.2.
5. Disconnect the union to check valve hose.

  Fig 4: Disconnecting Ventilation Hose No. 2 And Union To Check Valve Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

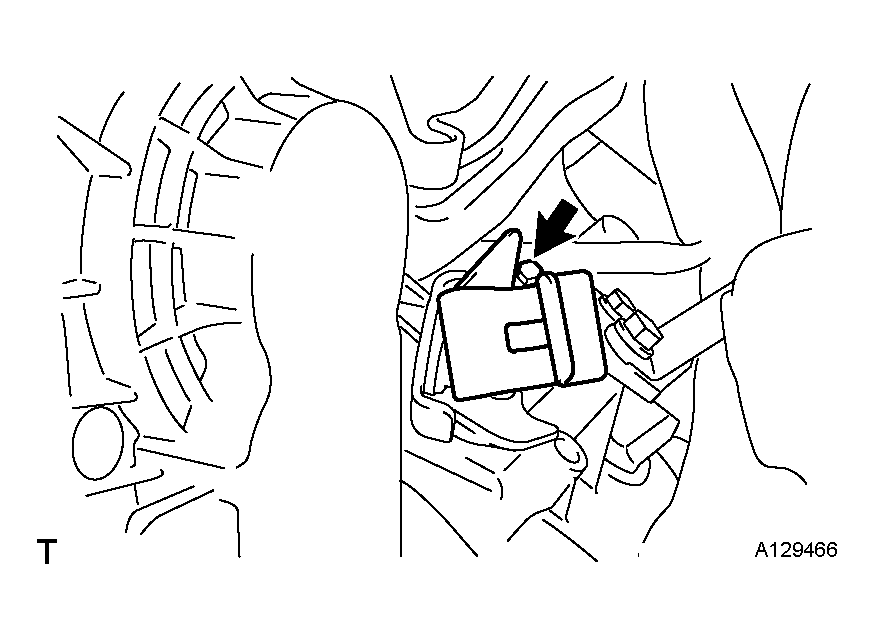

6. Remove the bolt and vacuum hose clamp.

  Fig 5: Removing Bolt And Vacuum Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

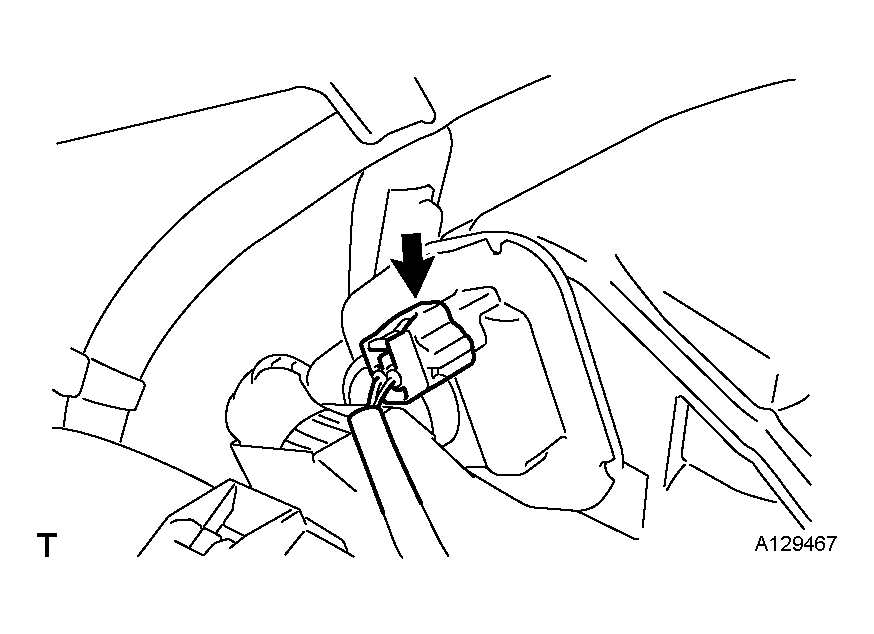

7. Disconnect the connector.

  Fig 6: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

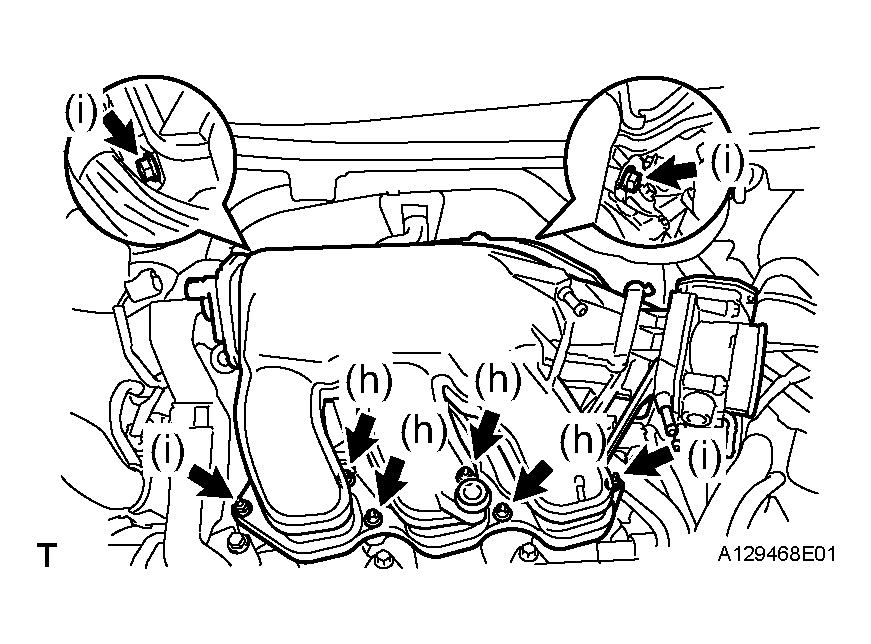

8. Using a 5 mm socket hexagon wrench, remove the 4 bolts.
9. Remove the 2 nuts, 2 bolts and intake air surge tank.
10. Remove the gasket from the intake air surge tank.

  Fig 7: Removing Nuts, Bolts And Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL TUBE SUB-ASSEMBLY

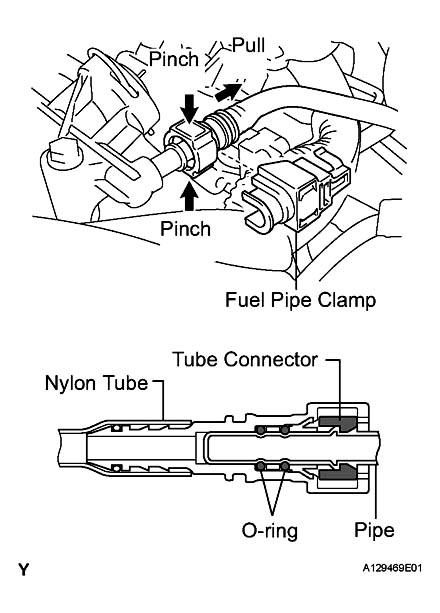

1. Remove the fuel pipe clamp No.2.
2. Pinch the tube connector and then pull out the fuel pipe.
  NOTE:
  - Check that there is no dirt or other foreign objects around the connector before this operation and clean the connector as necessary.
  - Be careful of mud because the quick connector has O-rings which seal the pipe and connector that can be contaminated.
  - Do not use any tools in this operation.
  - Do not bend or twist the nylon tube. Protect the connector by covering it with a plastic bag.
  - When the pipe and the connector are stuck, push and pull the connector to release and pull the connector out carefully.

    Fig 8: Disconnecting Fuel Tube Sub-Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL INJECTOR ASSEMBLY

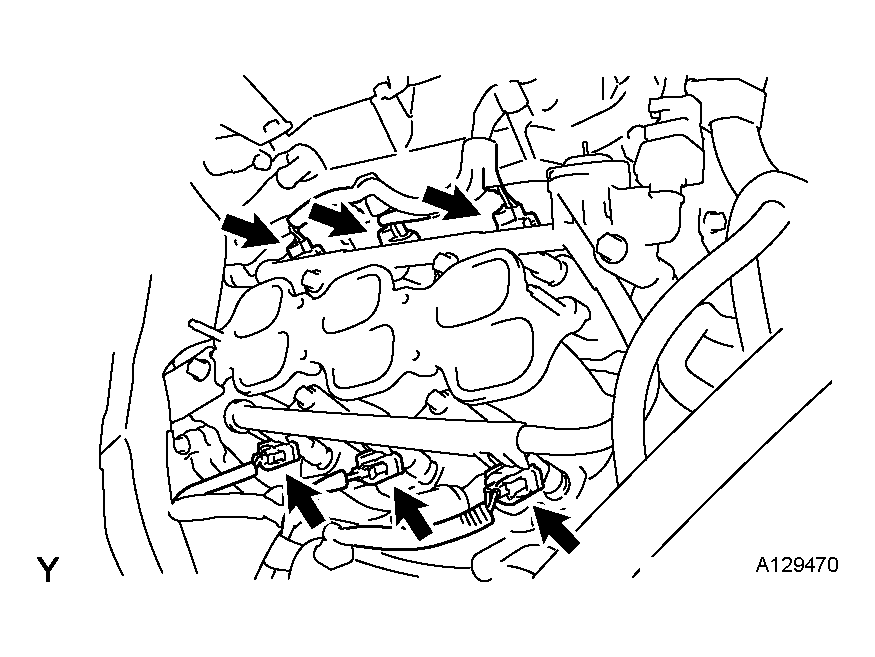

1. Disconnect the 6 fuel injector connectors.

  Fig 9: Disconnecting Fuel Injector Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

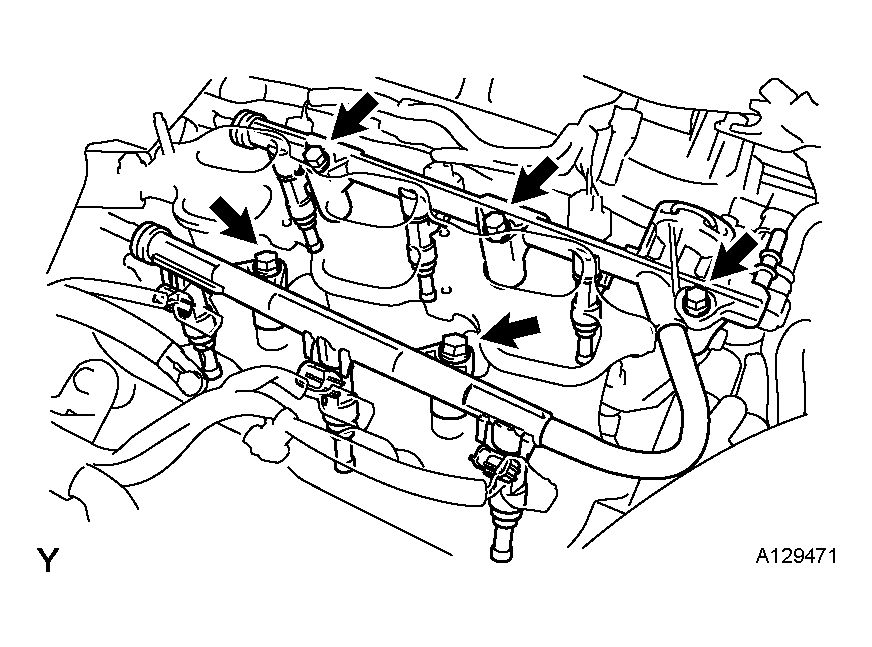

2. Remove the 5 bolts and fuel delivery pipe together with the 6 fuel injectors.
  NOTE: Be careful not to drop the fuel injectors when removing the fuel delivery pipe.

  Fig 10: Removing Bolts And Fuel Delivery Pipe Together Fuel Injectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

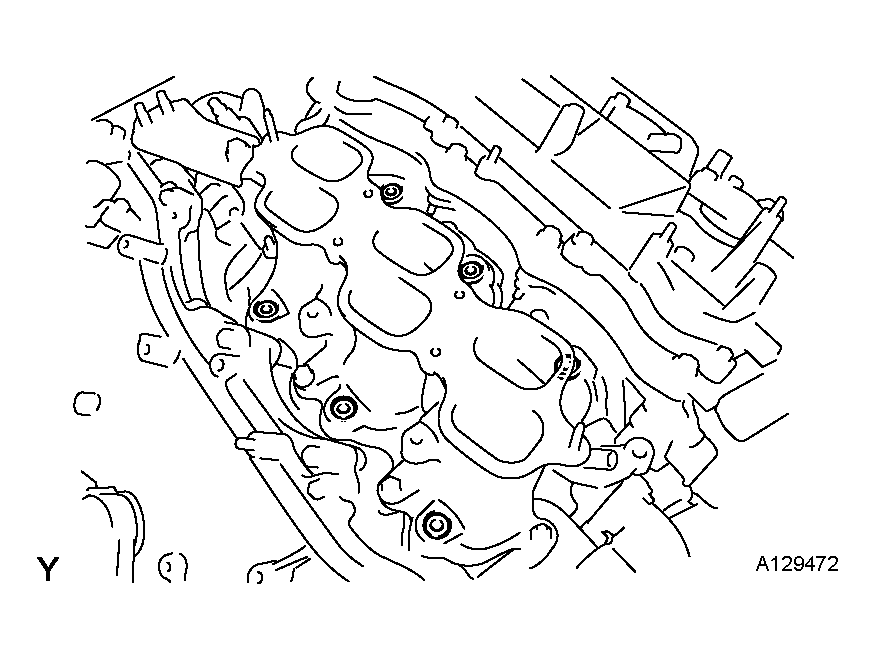

3. Remove the 6 insulators from the intake manifold.

  Fig 11: Removing Insulators From Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

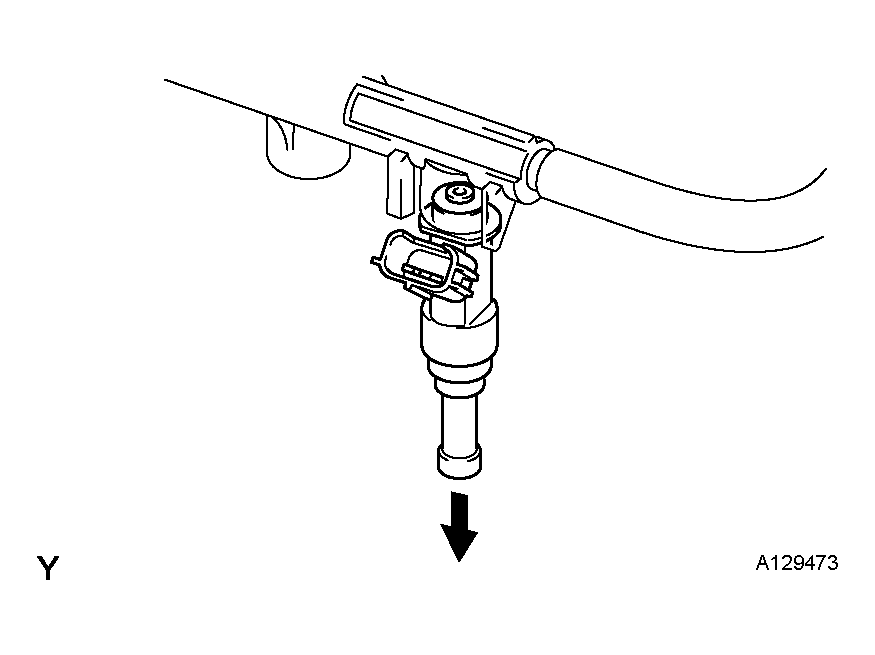

4. Pull out the fuel injector from the fuel delivery pipe.

  Fig 12: Pulling Out Fuel Injector From Fuel Delivery Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
