VVT Sensor: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY (See step 12 under  REMOVAL  )
  2. REMOVE VVT SENSOR

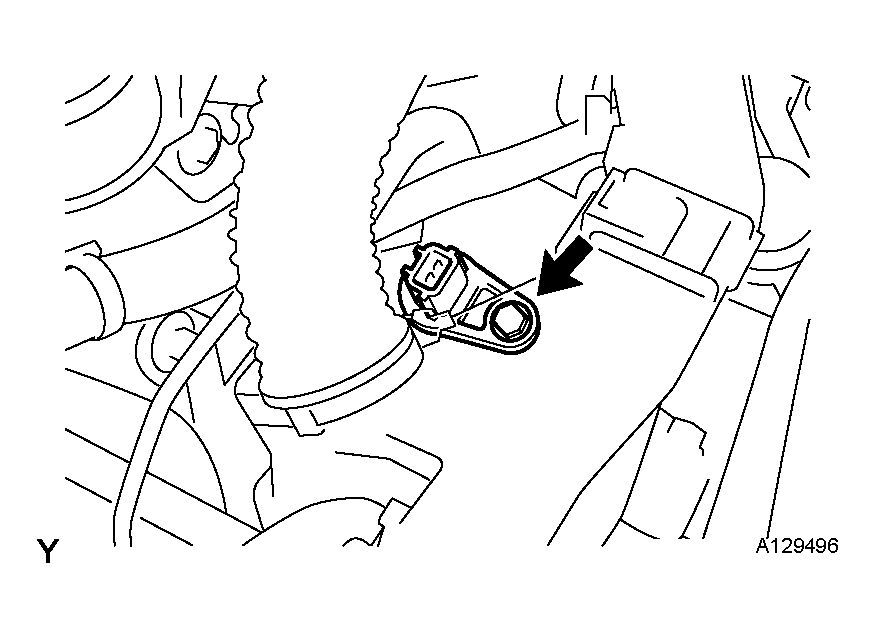

      Fig 1: Removing Bolt And VVT Sensor
      G04377158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Intake camshaft (Bank 1).
      1. Disconnect the VVT sensor connector.
      2. Remove the bolt and the VVT sensor.
    2. Exhaust camshaft (Bank 1).

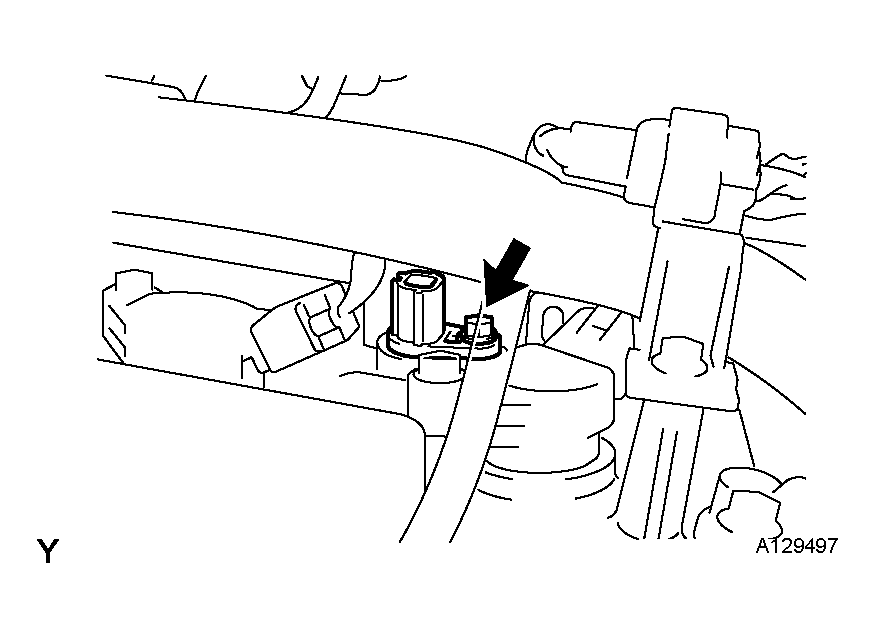

      Fig 2: Removing Bolt And VVT Sensor
      G04377159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the windshield wiper link assembly (See step 5 under REMOVAL ).
      2. Remove the cowl top outside panel front (See REMOVAL ).
      3. Disconnect the VVT sensor connector.
      4. Remove the bolt and the VVT sensor.
    3. Exhaust camshaft (Bank 2).

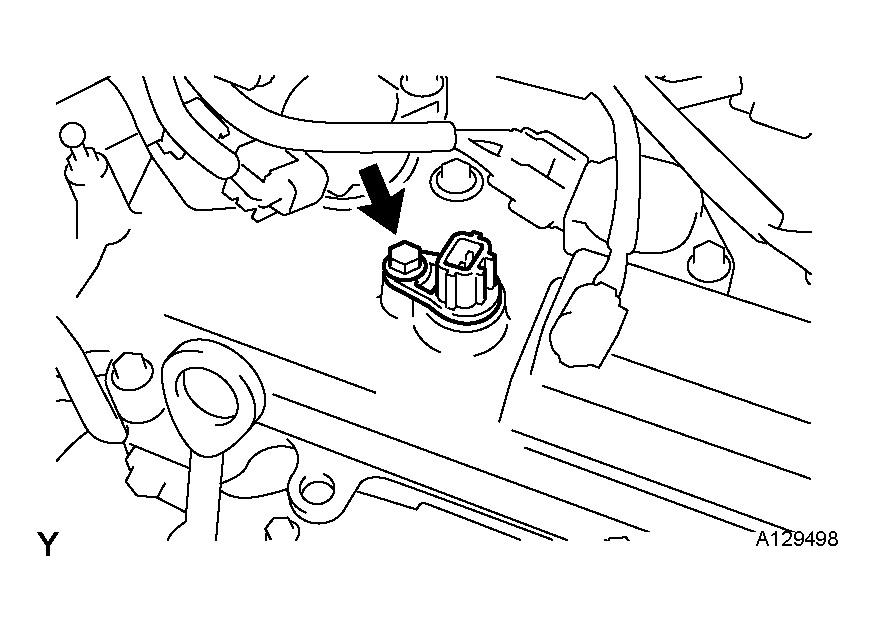

      Fig 3: Removing Bolt And VVT Sensor
      G04377160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the VVT sensor connector.
      2. Remove the bolt and the VVT sensor.
    4. Intake camshaft (Bank 2).

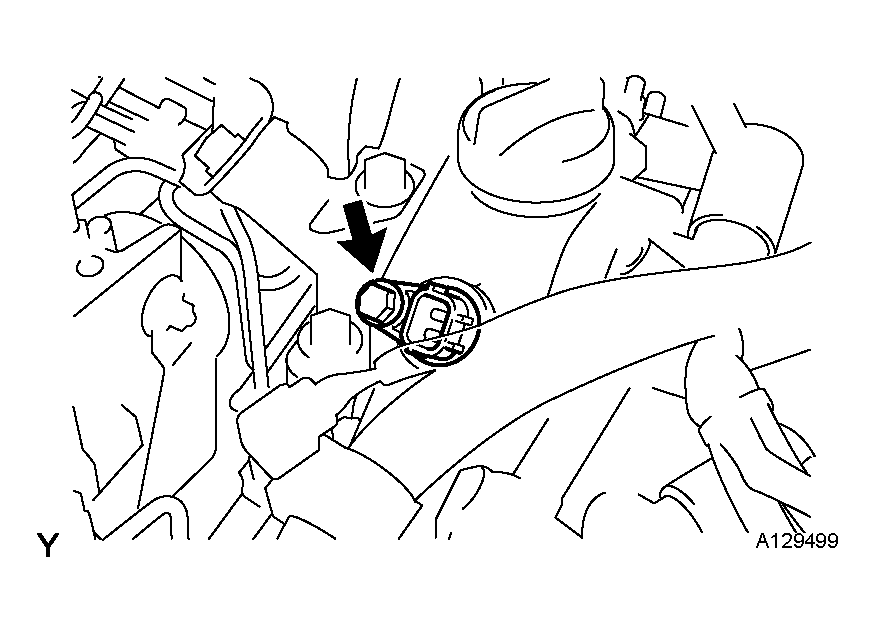

      Fig 4: Removing Bolt And VVT Sensor
      G04377161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the VVT sensor connector.
      2. Remove the bolt and the VVT sensor.
