Vehicle Lift And Support Locations

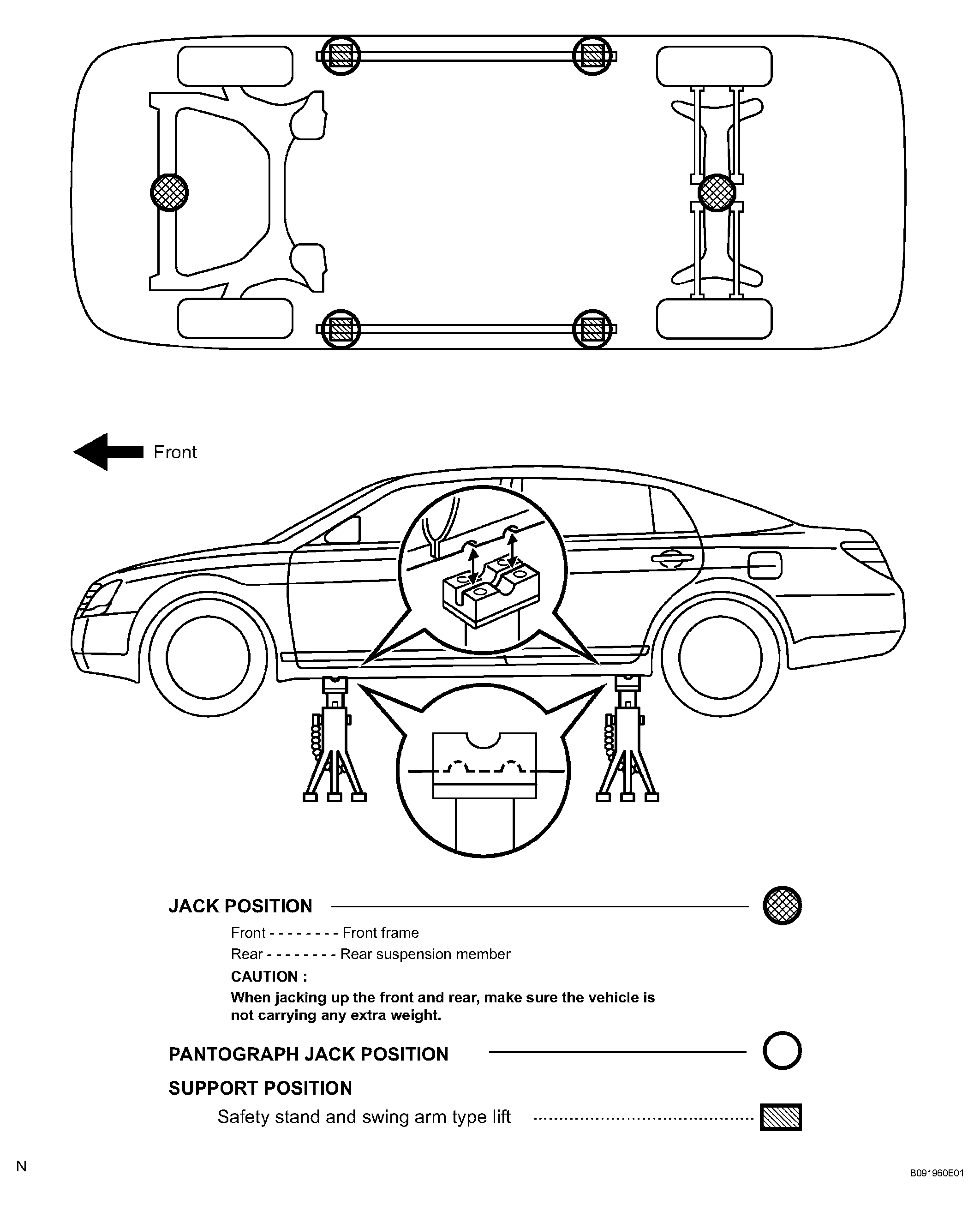

Fig 1: Identifying Vehicle Lift And Support Locations (Jack Type Lift)
G04376126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

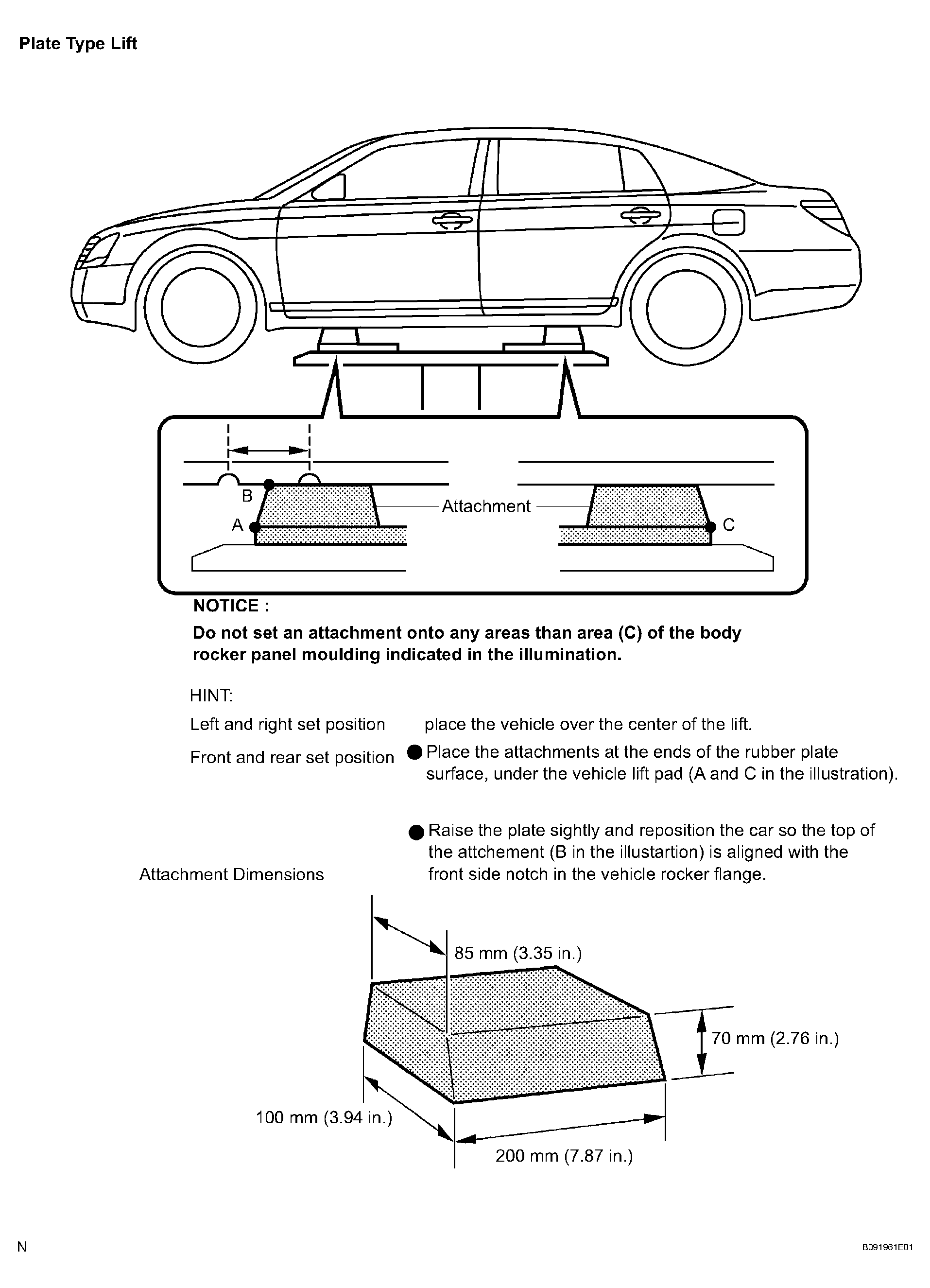

Fig 2: Identifying Vehicle Lift And Support Locations (Plate Type Lift)
G04376127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
