Instrument Panel Assembly: Installation

  1. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY RH
    1. Engage the 2 clips and install the lower instrument panel.
      Fig 1: Identifying Lower Instrument Panel Clips
      G05114469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  3. INSTALL ACCESSORY METER BRACKET
    1. Install the accessory meter bracket with the 2 clips.
      Fig 2: Identifying Accessory Meter Bracket Clips
      G05114468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL CENTER BRACKET SUB-ASSEMBLY
    1. Install the instrument panel center bracket with the 2 < B > screws.
      Fig 3: Identifying Instrument Panel Center Bracket Screws
      G05114467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  (See INSTALLATION )
  6. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Engage the 16 clamps and install the instrument panel wire.

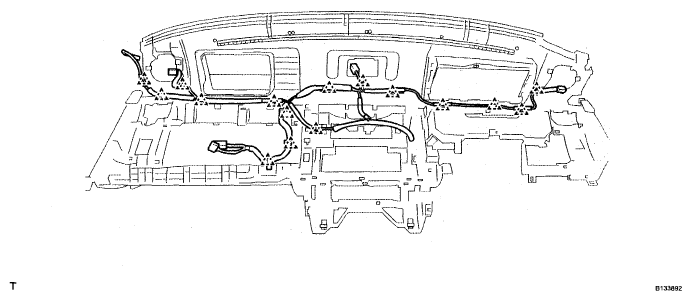

      Fig 4: Identifying Instrument Panel Wire Clamps
      G05114466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Install the heater to register duct with the 2 < B > screws.
      Fig 5: Identifying Heater To Register Duct Screws
      G05114465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Engage the 9 claws and install the defroster nozzle.
    2. Install the 5 < B > screws.
      Fig 6: Identifying Defroster Nozzle Screws
      G05114464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws and install the side defroster nozzle duct.
    2. Install screw < B >.
      Fig 7: Identifying No. 1 Side Defroster Nozzle Duct Screw
      G05114462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws and install the side defroster nozzle duct.
    2. Install screw < B >.
      Fig 8: Identifying No. 2 Side Defroster Nozzle Duct Screw
      G05114463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT CLUSTER LOWER CENTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 2 clips and 3 claws and install the instrument cluster lower center finish panel.
    2. Install the 3 < B > screws.
      Fig 9: Identifying Instrument Cluster Lower Center Finish Panel Clips & Claws
      G05114461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 4 claws and install the instrument cluster center finish panel.
    2. Install the 2 < B > screws.
      Fig 10: Identifying Instrument Cluster Center Finish Panel Claws
      G05114460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 2 clips and 2 claws and install the instrument cluster finish panel.
    2. Install the 3 < B > screws.
      Fig 11: Identifying Instrument Cluster Finish Panel Clips & Claws
      G05114459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Engage the claw and install the glove compartment door stopper.
      Fig 12: Identifying Glove Compartment Door Stopper Claws
      G05114458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
    1. Engage the 4 clips and 2 claws and install the instrument panel box door.
    2. Install the 2 < H > screws.
      Fig 13: Identifying Instrument Panel Box Door Screws
      G05114457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL ACCESSORY METER ASSEMBLY
    1. Install the accessory meter with the 2 nuts.
      Fig 14: Identifying Accessory Meter With Nuts
      G05114484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL METER COVER
    1. Engage the 6 clips and install the meter cover.
      Fig 15: Identifying Meter Cover Clips
      G05114485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the lower instrument panel with the 2< C > bolts, 2 < E > bolts, 7 < F > bolts and nut < G >.

      Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf) for bolt

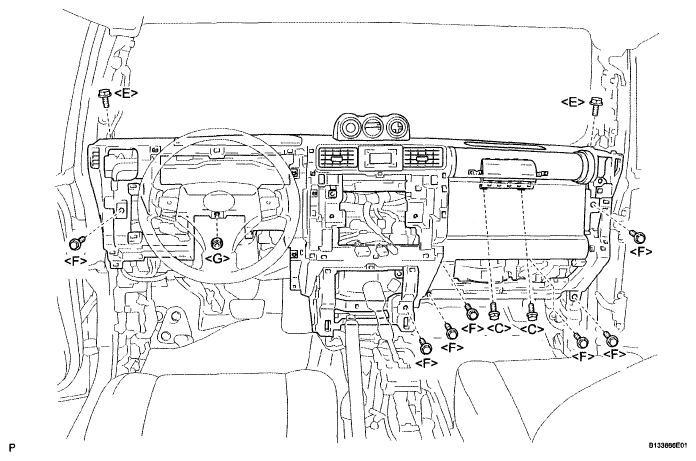

      Fig 16: Identifying Instrument Panel Bolts & Nuts
      G05114454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamps and connect the connectors.
  19. CONNECT PASSENGER AIRBAG CONNECTOR
    1. Connect the passenger airbag connector.
      Fig 17: Identifying Passenger Airbag Connector
      G05114487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Engage the 3 claws and install the instrument panel finish panel end.
      Fig 18: Identifying Instrument Panel Finish Panel End Claws
      G05114470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL ASSIST GRIP RETAINER RH
    1. Install the assist grip retainer with the 2 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      Fig 19: Identifying Assist Grip Retainer With Bolts
      G05114489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL ASSIST GRIP RETAINER LH

    HINT:

    Use the same procedure as for the RH side.

  23. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY  (See INSTALLATION )
  24. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 4 clips and claw and install the instrument panel speaker panel.
      Fig 20: Identifying No. 2 Instrument Panel Speaker Panel Clips & Claw
      G05114490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedure as for the RH side.

  26. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 4 clips and 2 claws and install the instrument panel register.
    2. Install the clip.
      Fig 21: Identifying Instrument Panel Register Clips & Claws
      G05114450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH
    1. Install the connectors to the instrument panel lower finish panel.
    2. Engage the claw and 2 clips and install the instrument panel lower finish panel.
    3. Install screw < A >.
      Fig 22: Identifying Instrument Panel Lower Finish Panel Screw
      G05114449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Install the glove compartment door assembly with the 3 hinges while holding it horizontal.
      Fig 23: Identifying Glove Compartment Door Assembly With Hinges
      G05114493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slightly flex the upper part of the glove compartment door assembly, and install the glove compartment door assembly.
    3. Install the glove compartment door stoppers onto the glove compartment door.
      Fig 24: Identifying Glove Compartment Door Stoppers
      G05114447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors and the clamp.
      Fig 25: Identifying Combination Meter Connectors
      G05114446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the combination meter assembly with the 4 screws.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      Fig 26: Identifying Combination Meter Assembly Screws
      G05114445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL INSTRUMENT CLUSTER LOWER FINISH PANEL
    1. Connect the connectors.
    2. Engage the 3 clips and 4 claws and install the instrument cluster lower finish panel.
      Fig 27: Identifying Instrument Cluster Lower Finish Panel Clips & Claws
      G05114444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL LOWER INSTRUMENT PANEL LH
    1. Install the lower instrument panel with the 4 < F > bolts.
      Fig 28: Identifying Lower Instrument Panel With Bolts
      G05114443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
    1. Engage the 5 clips and claw and install the lower instrument panel finish panel.
    2. Install the 2 < F > bolts.
      Fig 29: Identifying Lower Instrument Panel Finish Panel Bolts
      G05114442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Engage the 3 claws and install the hood lock control lever.
      Fig 30: Identifying Hood Lock Control Lever Claws
      G05114441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 4 clips and 2 claws and install the instrument panel register.
      Fig 31: Identifying Instrument Panel Register Clips & Claws
      G05114440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY
    1. Engage the 3 clips and 2 claws and install the instrument lower cover.
    2. Install the 2 < F > bolts and 2 clips.
      Fig 32: Identifying Instrument Lower Cover Clips & Bolts
      G05114439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL CONSOLE UPPER PANEL NO. 1 GARNISH
    1. Slide the console upper panel garnish toward the front of the vehicle and engage claw B.
    2. Engage the claw and clip and install the console upper panel garnish.
      Fig 33: Identifying Console Upper Panel Garnish Claw & Clip
      G05114503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL FRONT CONSOLE BOX
    1. Engage the 5 claws and install the front console box.
    2. Install the 4 < D > screws.
      Fig 34: Identifying Front Console Box Claws
      G05114437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL BOX BOTTOM MAT
    1. Install the box bottom mat.
      Fig 35: Identifying Box Bottom Mat
      G05114436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
    1. Engage the 3 claws and 5 clips and install the console upper rear panel.
      Fig 36: Identifying Console Upper Rear Panel Clips & Claws
      G05114435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for 4WD)
    1. Install the shift lever knob.
      Fig 37: Identifying Shift Lever Knob (For 4WD)
      G05114507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
    1. Install the shift lever knob.
      Fig 38: Identifying Shift Lever Knob (For Manual Transmission)
      G05114508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY
    1. Slide the parking brake hole cover toward the rear of the vehicle and engage the 2 C claws.
    2. Engage the 4 claws and install the parking brake hole cover.
      Fig 39: Identifying Parking Brake Hole Cover Claws
      G05114509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  44. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Connect the 3 connectors.
    2. Engage the 4 clips and install the integration control panel assembly.
      Fig 40: Identifying Integration Control Panel Assembly Clips
      G05112947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 < H > screws.
  45. INSTALL INSTRUMENT PANEL GARNISH LH
    1. Engage the 3 clips and install the instrument panel garnish.
    2. Install 2 < H > screws.
      Fig 41: Identifying Instrument Panel Garnish LH Clips
      G05114429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL INSTRUMENT PANEL GARNISH RH
    1. Engage the 3 clips and install the instrument panel garnish.
      Fig 42: Identifying Instrument Panel Garnish RH Clips
      G05114430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install screw < H >.
  47. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  48. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  49. INSTALL ASSIST GRIP ASSEMBLY  (See INSTALLATION )
  50. INSTALL ASSIST GRIP PLUG  (See INSTALLATION )
  51. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip.
  52. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip.
  53. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  54. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  55. INSTALL FOOTREST CLIP  (See INSTALLATION )
  56. INSTALL FRONT FLOOR FOOTREST  (See INSTALLATION )
  57. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  58. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  59. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

  60. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

· About lemon-mirror
