ACIS Control Circuit: Wiring Diagram

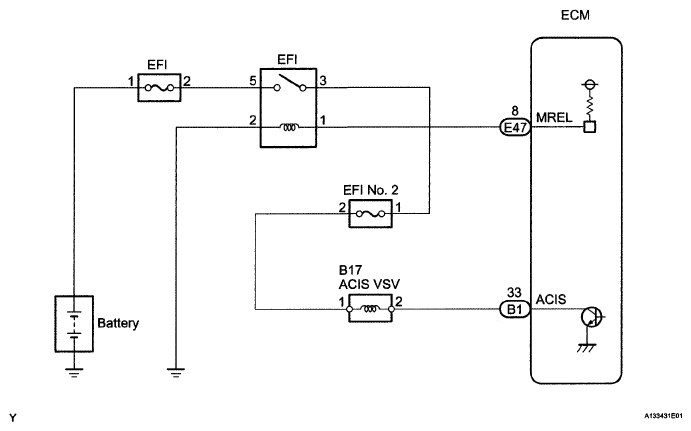

Fig 1: Identifying ACIS Control Wiring Diagram

G05108937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
