Throttle Body
>>
Components
Throttle Body: Components

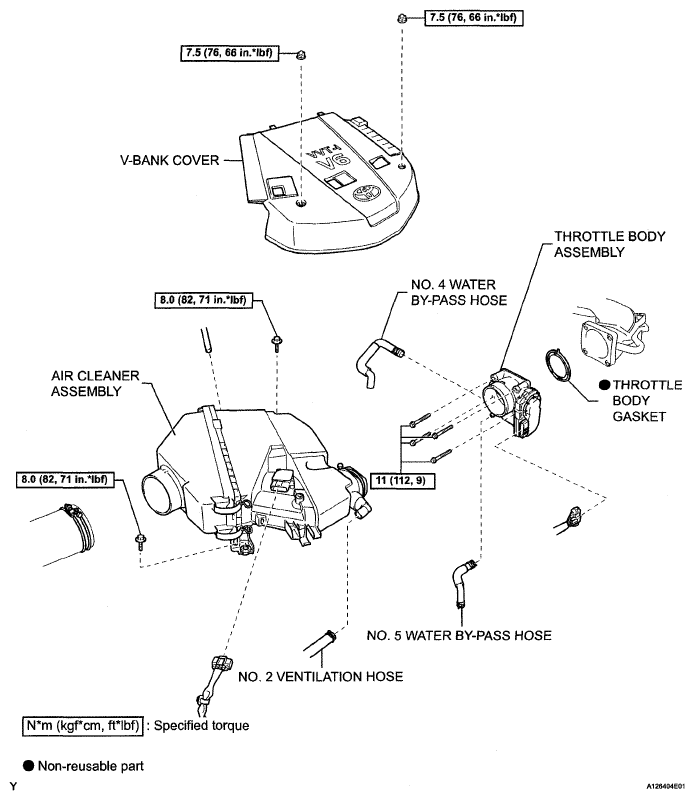

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
