Home >> Toyota >> 2007 >> FJ Cruiser RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> VVT Sensor >> Components

VVT Sensor: Components

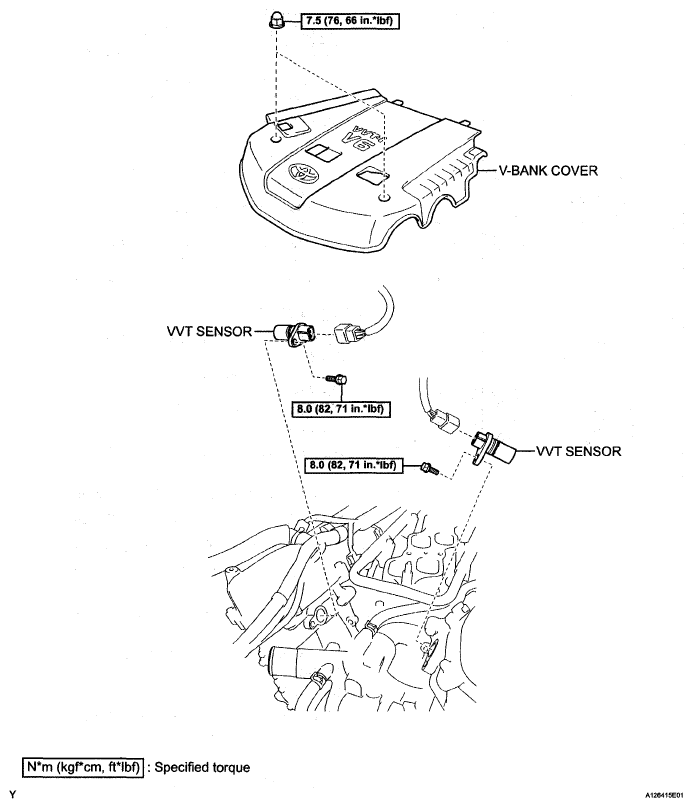

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications

G05108958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
