Fuel Pressure Pulsation Damper: Components

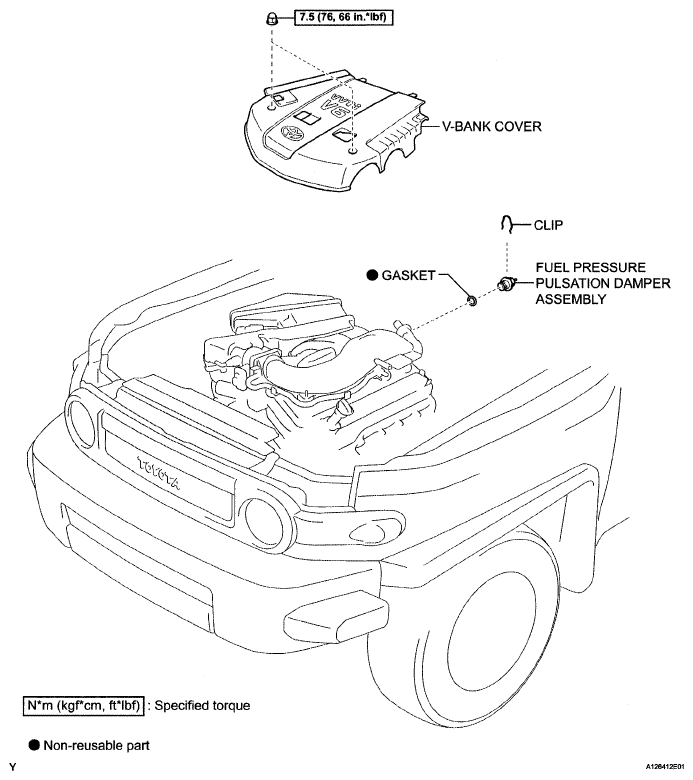

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications

G05109651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
