Brake Actuator: Components

Fig 1: Identifying Brake Actuator Replacement Components (1 Of 4)
G05235321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Brake Actuator Replacement Components With Torque Specification (2 Of 4)
G05576085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Brake Actuator Replacement Components (3 Of 4)
G05235323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

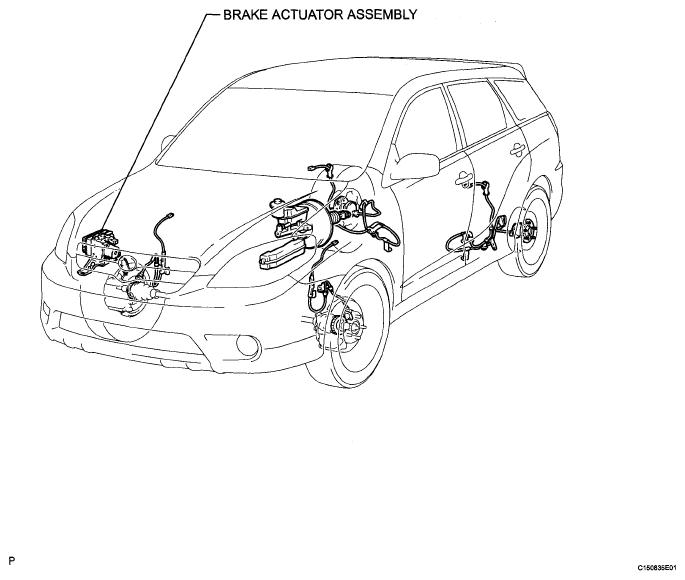

Fig 4: Identifying Brake Actuator Replacement Components (4 Of 4)
G05235324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
