Skid Control Sensor: Components

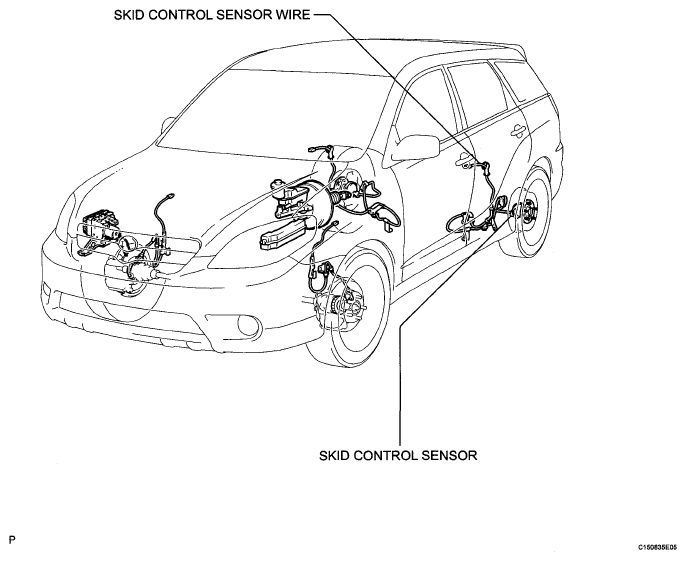

Fig 1: Identifying Skid Control Sensor Components (1 Of 2)
G05235347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

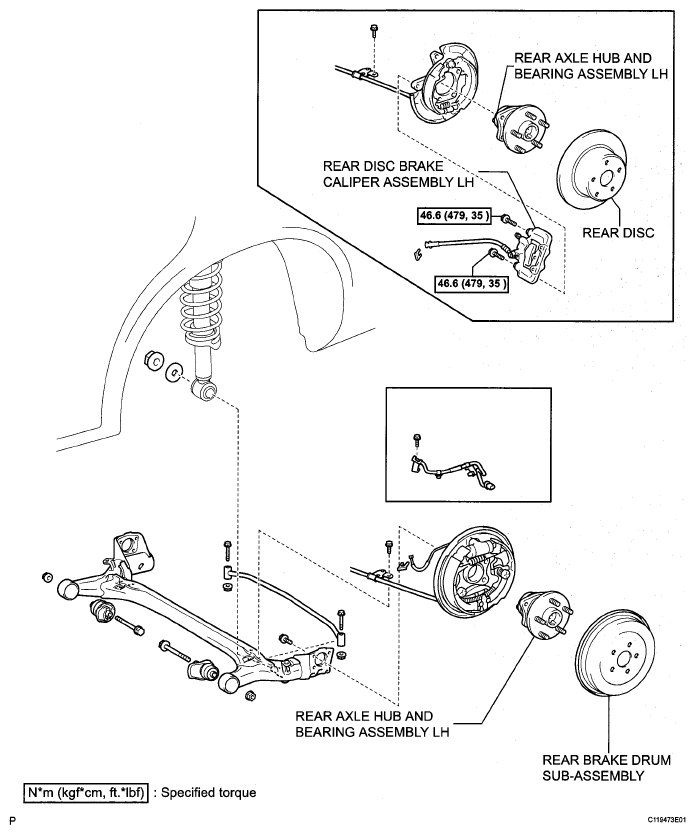

Fig 2: Skid Control Sensor Replacement Components With Torque Specifications (2 Of 2)
G05235348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
