Home >> Toyota >> 2008 >> Matrix Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Vehicle Stability Control System >> Brake Warning Light Circuit >> Wiring Diagram

Brake Warning Light Circuit: Wiring Diagram

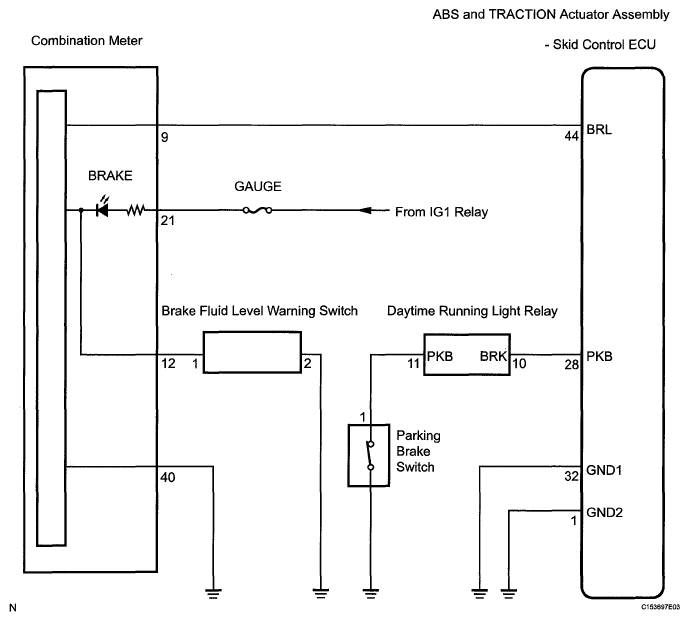

Fig 1: Brake Warning Light - Wiring Diagram

G05576058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
