Home >> Toyota >> 2008 >> Matrix Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Vehicle Stability Control System >> Slip Indicator Light Circuit >> Wiring Diagram

Slip Indicator Light Circuit: Wiring Diagram

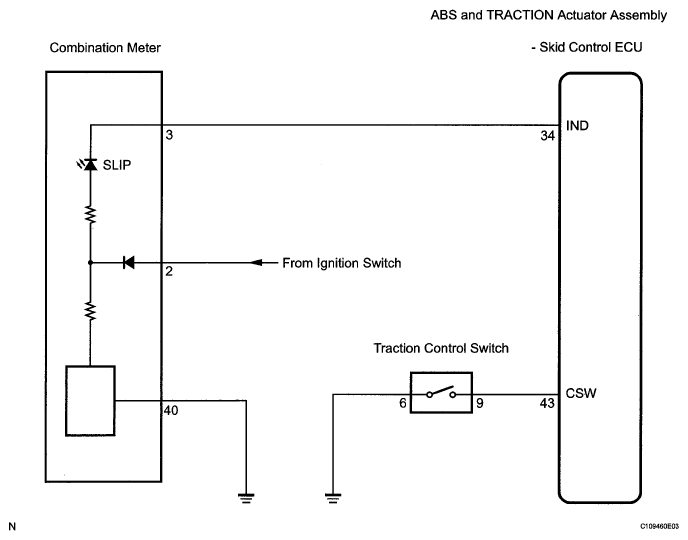

Fig 1: Slip Indicator Light - Wiring Diagram

G05576065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
