BRAKE ACTUATOR (w/ VSC): Components

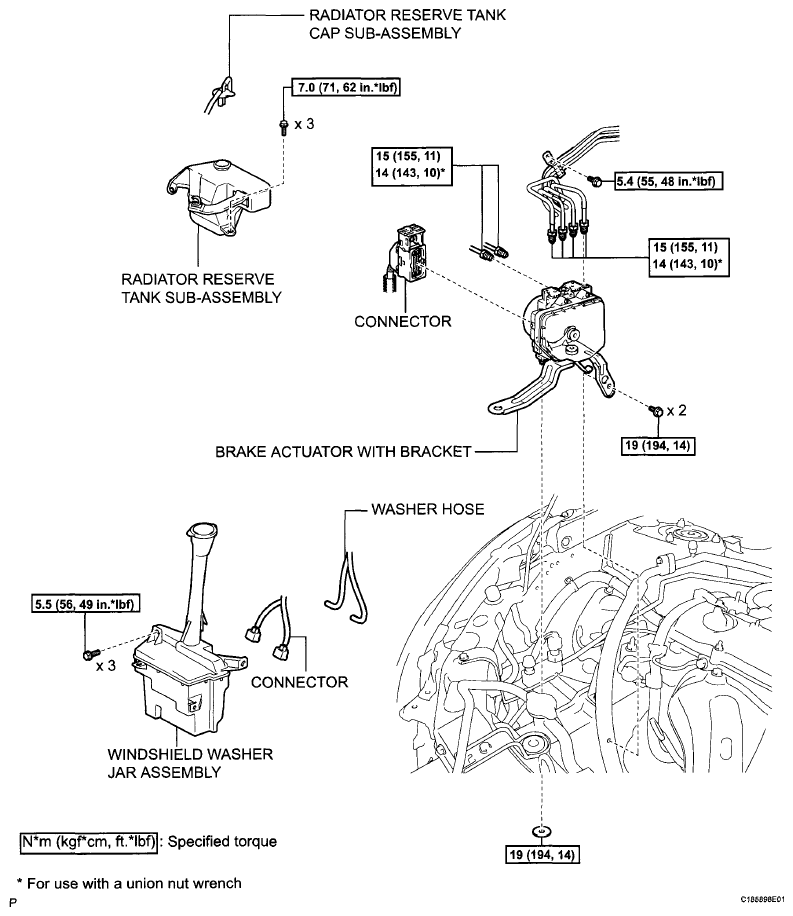

Fig 1: Brake Actuator Assembly Replacement Components With Torque Specifications (1 Of 2)
G06035064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

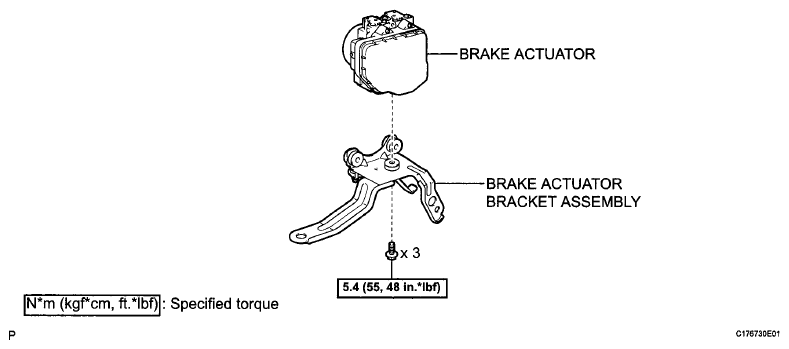

Fig 2: Brake Actuator Assembly Replacement Components With Torque Specifications (2 Of 2)
G06035065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
