REAR SPEED SENSOR (for 2WD): Components

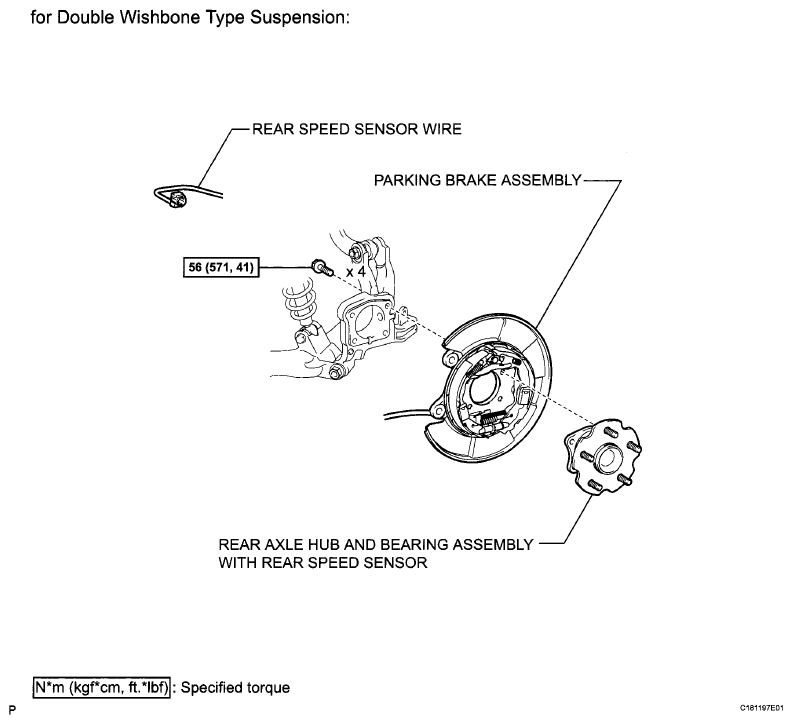

Fig 1: Rear Speed Sensor Replacement Components (2WD) With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

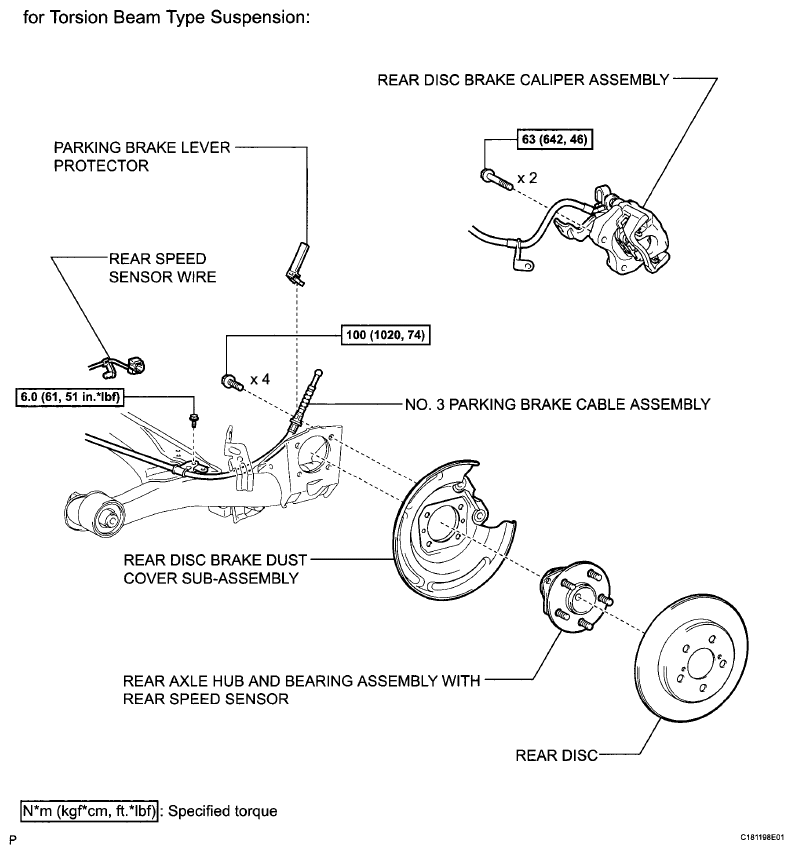

Fig 2: Rear Speed Sensor Replacement Components (2WD) With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

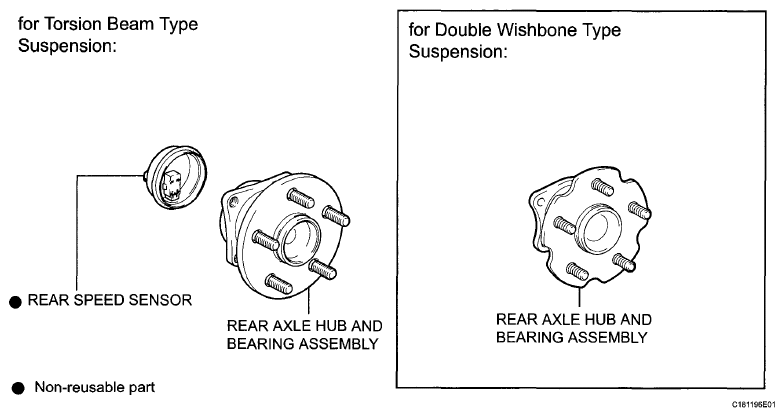

Fig 3: Rear Speed Sensor Replacement Components (2WD) With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Speed Sensor Replacement Components (2WD) With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

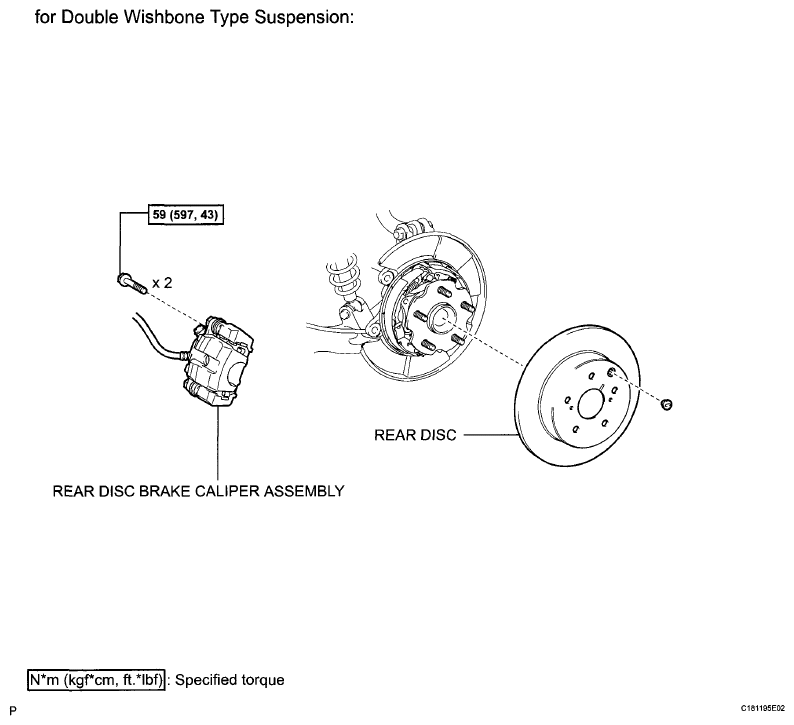

Fig 5: Rear Speed Sensor Replacement Components (2WD) With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
