REAR SPEED SENSOR (for 4WD): Components

Fig 1: Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

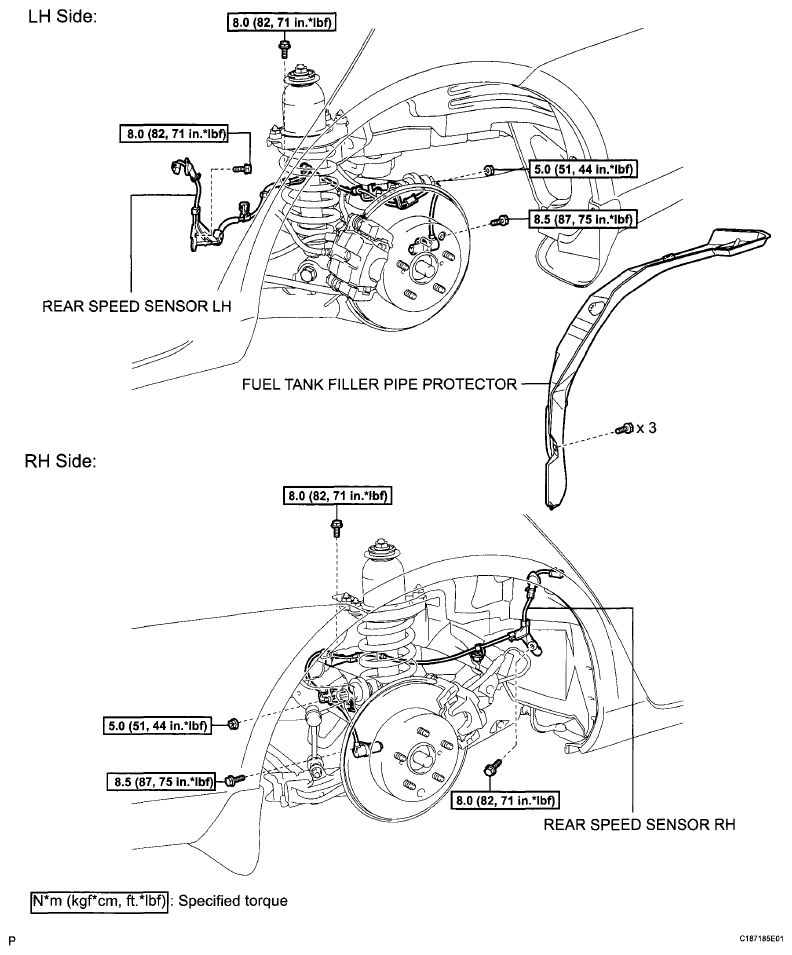

Fig 2: Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
