Brake Warning Light Remains ON
>>
Wiring Diagram
Brake Warning Light Remains ON: Wiring Diagram

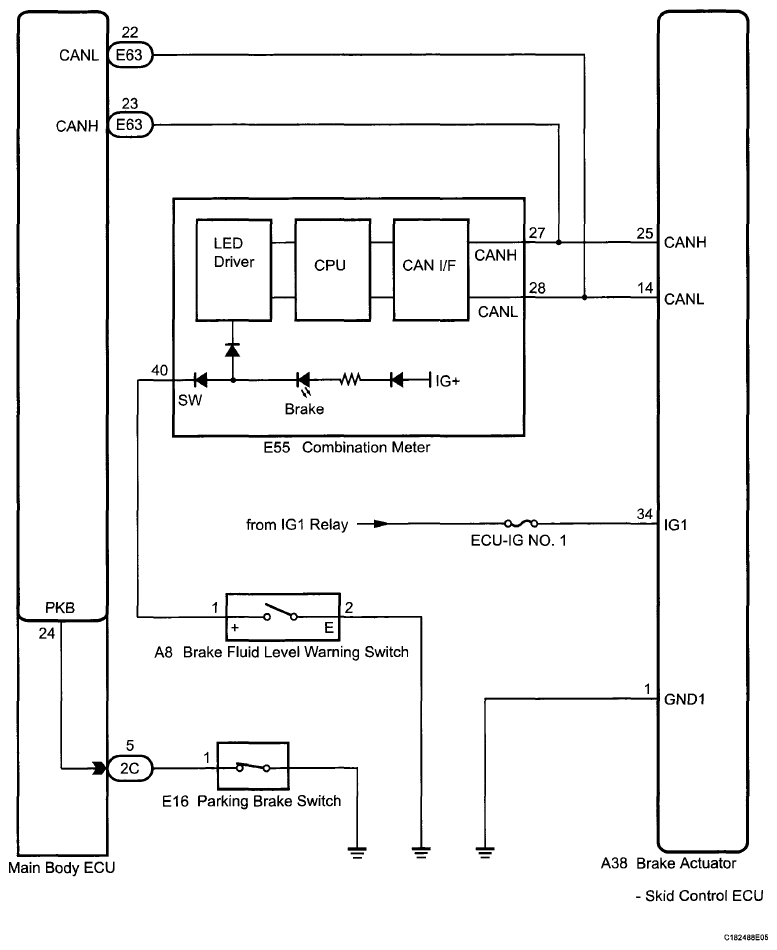

Fig 1: Brake Warning Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
