Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

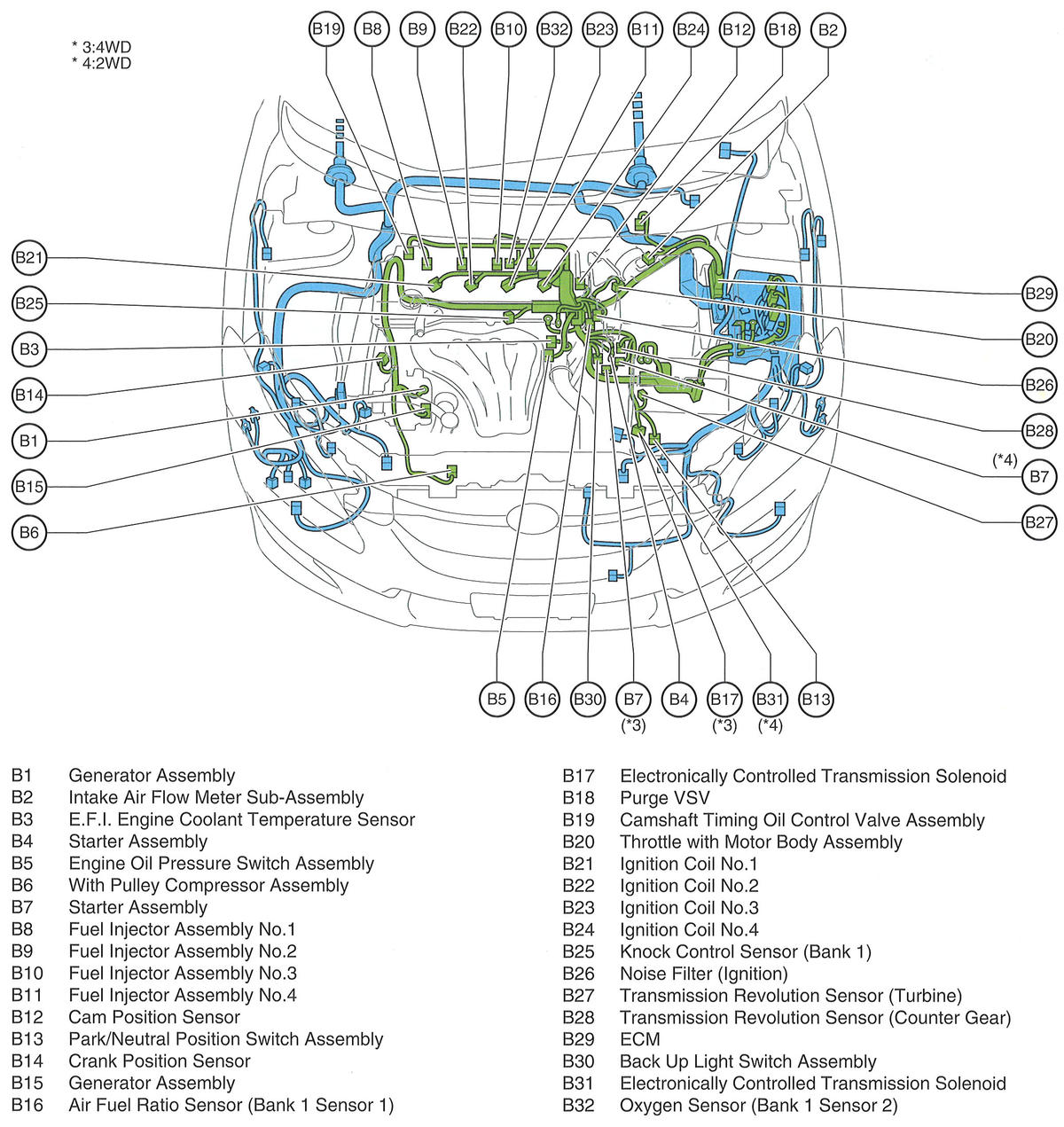

| Back Up Light Switch (2.4L) | Left side of transaxle. See Figure. |

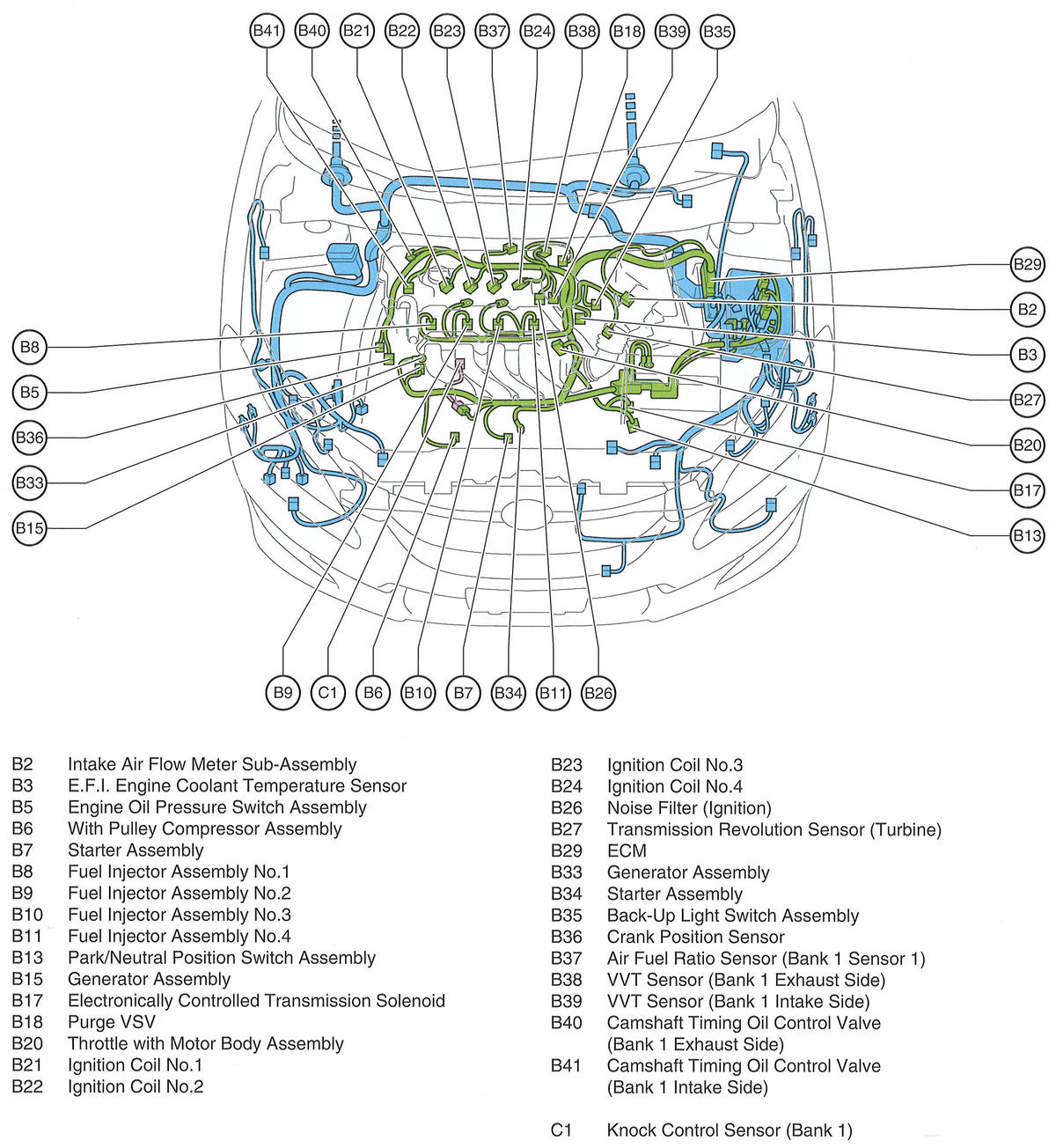

| Back Up Light Switch (1.8L) | Left side of transaxle. See Figure. |

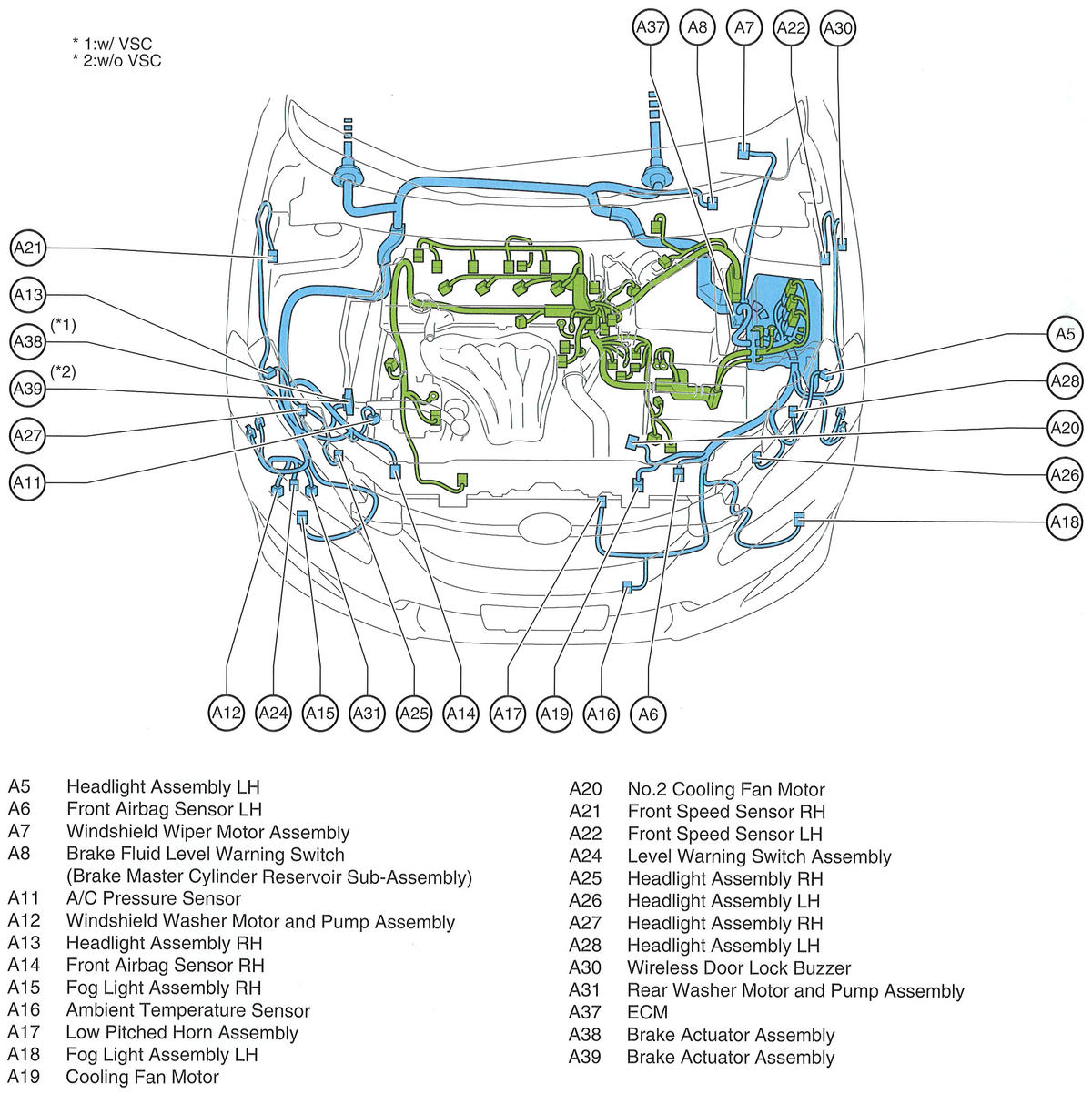

| Brake Fluid Level Warning Switch (2.4L) | Brake fluid reservoir. See Figure. |

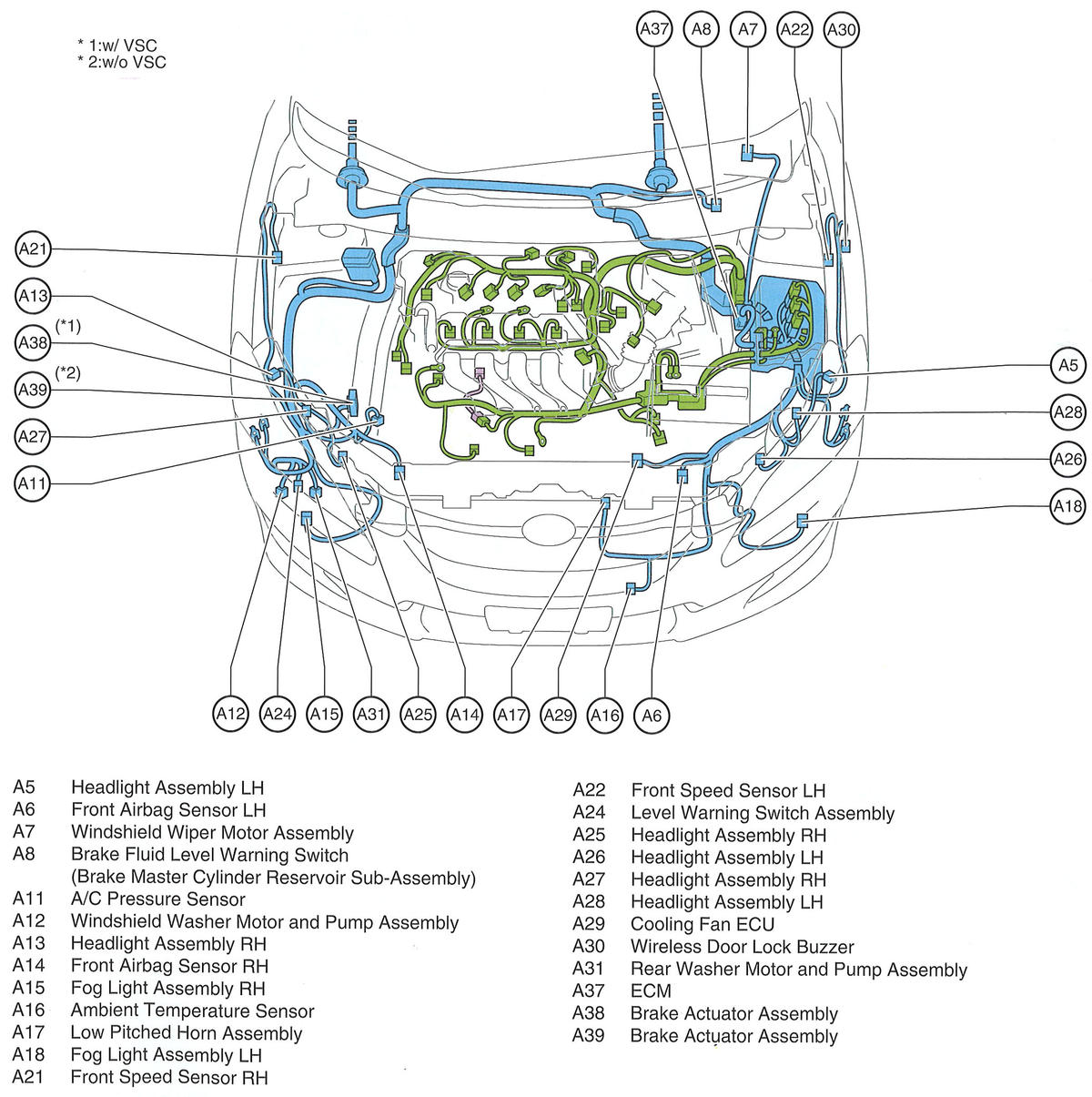

| Brake Fluid Level Warning Switch (1.8L) | Brake fluid reservoir. See Figure. |
| Clutch Start Switch | Left side of dash. See Figure. |
| Cruise Control Cancel Switch | Left side of dash. See Figure. |
| Engine Oil Pressure Switch (2.4L) | Lower left rear of engine. See Figure. |
| Engine Oil Pressure Switch (1.8L) | Lower left front of engine. See Figure. |
| Front Door Courtesy Light Switch LH | Left "B" pillar. See Figure. |
| Front Door Courtesy Light Switch RH | Right "B" pillar. See Figure. |
| Level Warning Switch (2.4L) | Washer fluid reservoir. See Figure. |
| Level Warning Switch (1.8L) | Washer fluid reservoir. See Figure. |
| Parking Brake Switch | Under center console. See Figure. |
| Park/Neutral Position Switch (2.4L) | Transaxle assembly. See Figure. |
| Park/Neutral Position Switch (1.8L) | Transaxle assembly. See Figure. |
| Rear Door Courtesy Light Switch LH | Left "C" pillar. See Figure. |
| Rear Door Courtesy Light Switch RH | Right "C" pillar. See Figure. |
| Stop Light Switch | Left side of dash. See Figure. |
| Transmission Control Switch | Under center console. See Figure. |
| Un-Lock Warning Switch | Steering column. See Figure. |
