Home >> Toyota >> 2009 >> Matrix Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2ZR-FE) >> Ignition Coil And Spark Plug >> Components

Ignition Coil And Spark Plug: Components

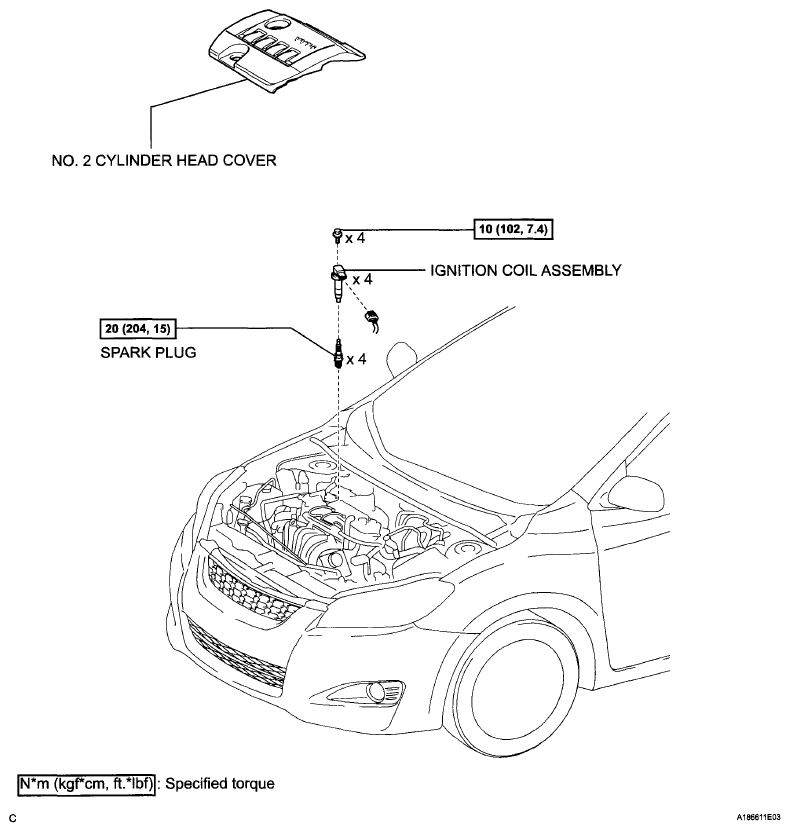

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

G06040816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
