Toyota
>>
2009
>>
Matrix Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (2ZR-FE)
>>
Ignition System
>>
System Diagram
System Diagram

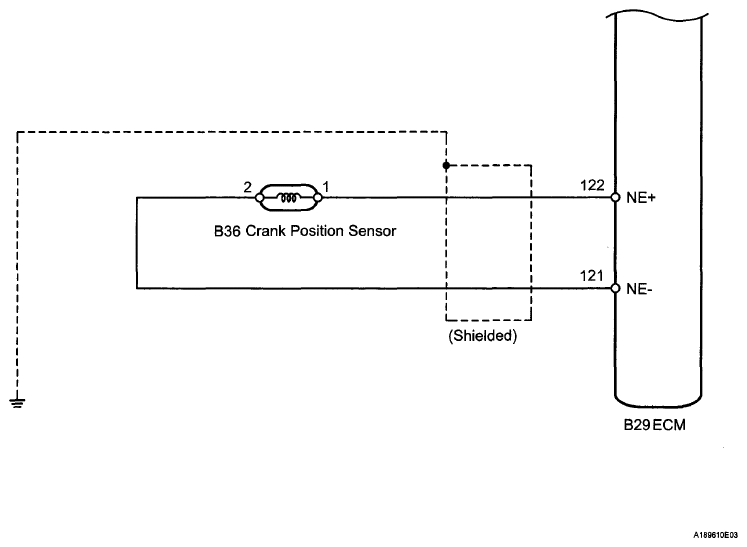

Fig 1: Ignition System - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

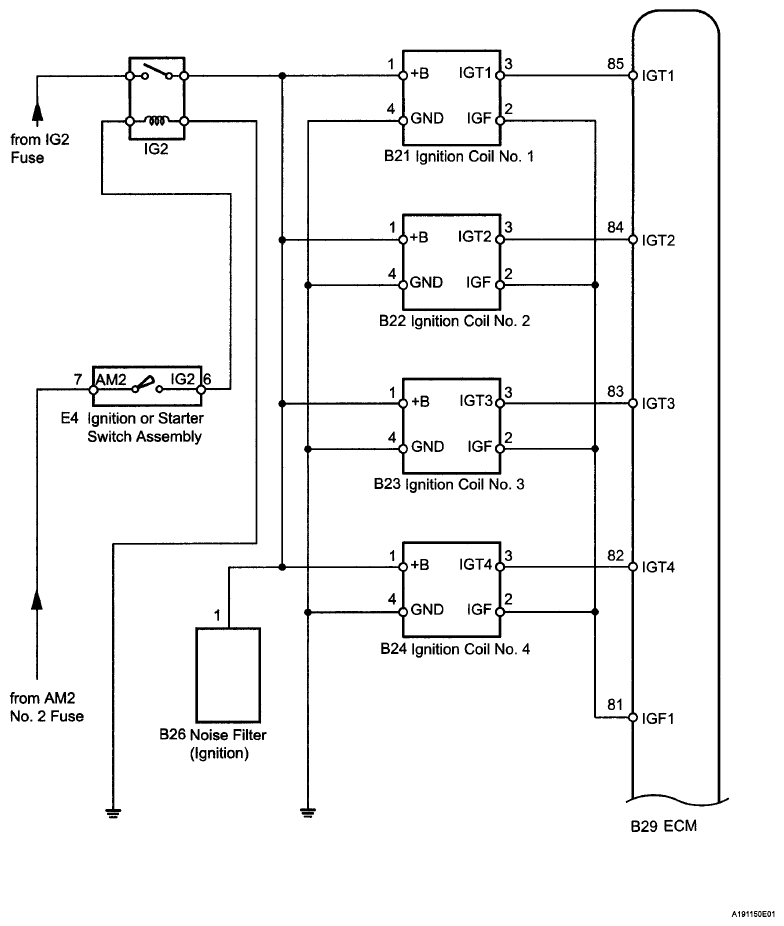

Fig 2: Ignition System - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
