Air Fuel Ratio Sensor: Components: Illustration

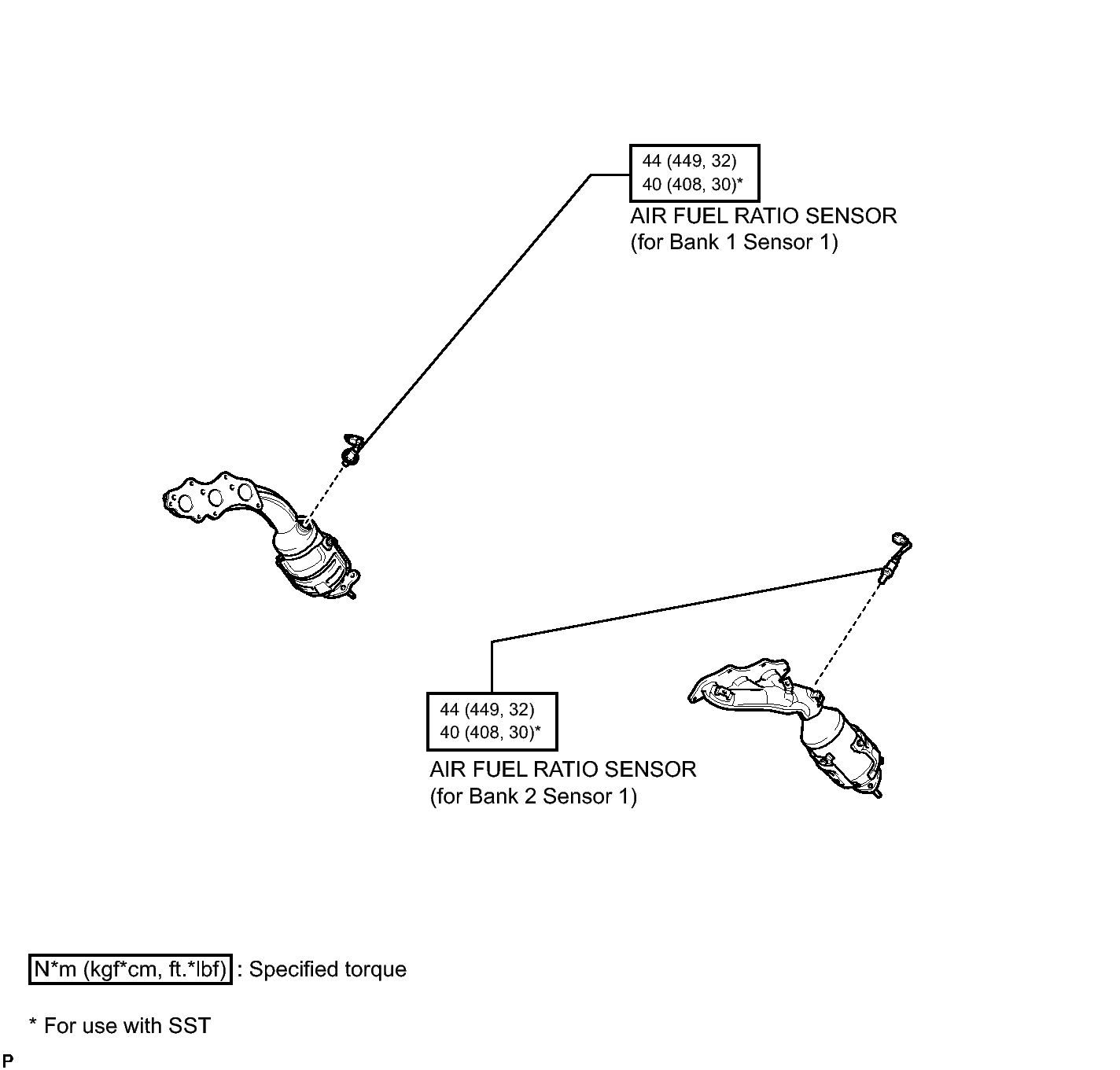

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications

GTY221693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
