Home >> Toyota >> 2012 >> 4Runner Trail >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Crankshaft Position Sensor >> Components >> Illustration

Crankshaft Position Sensor: Components: Illustration

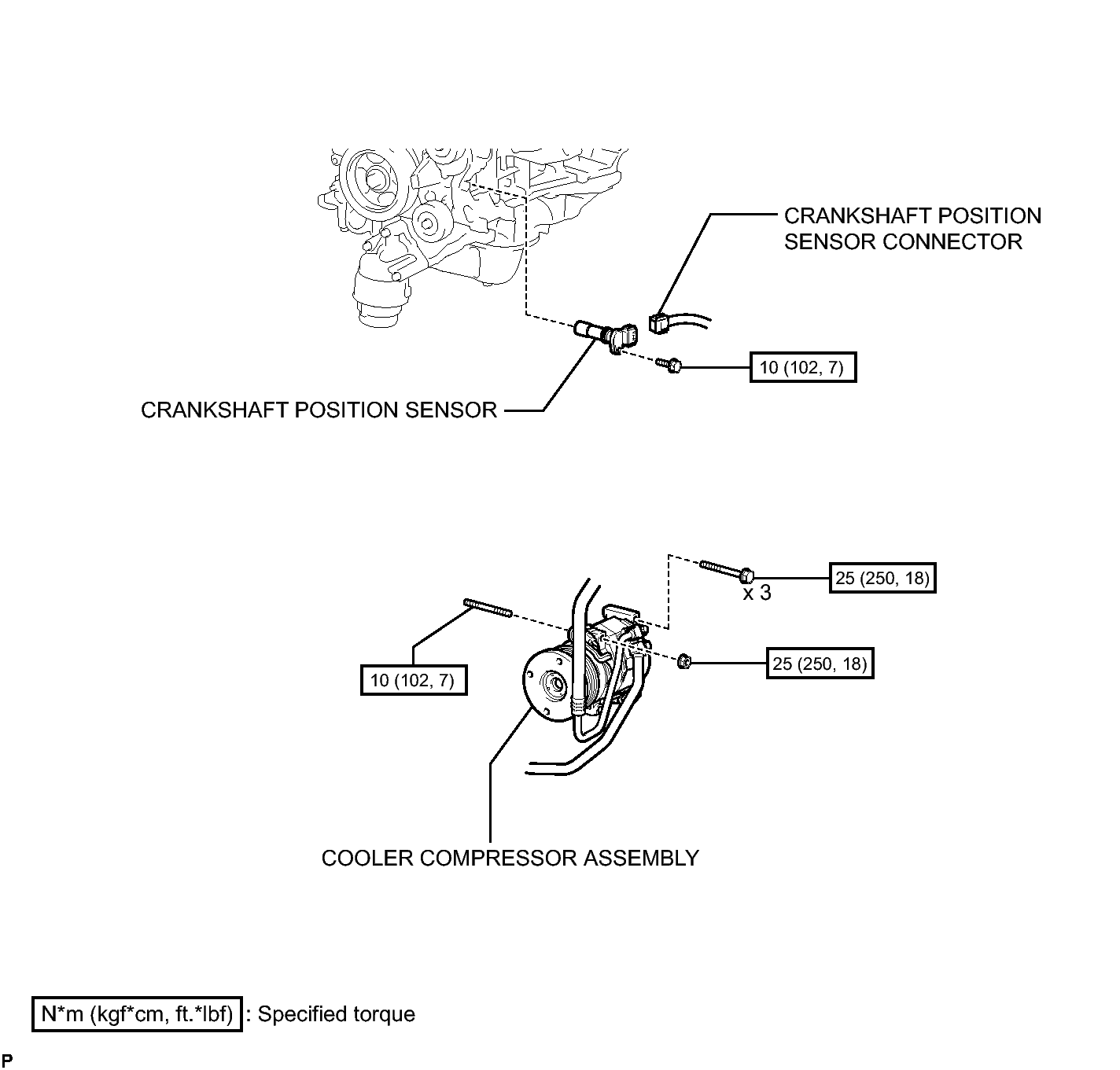

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications

GTY224809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
