Parts Location: Illustration

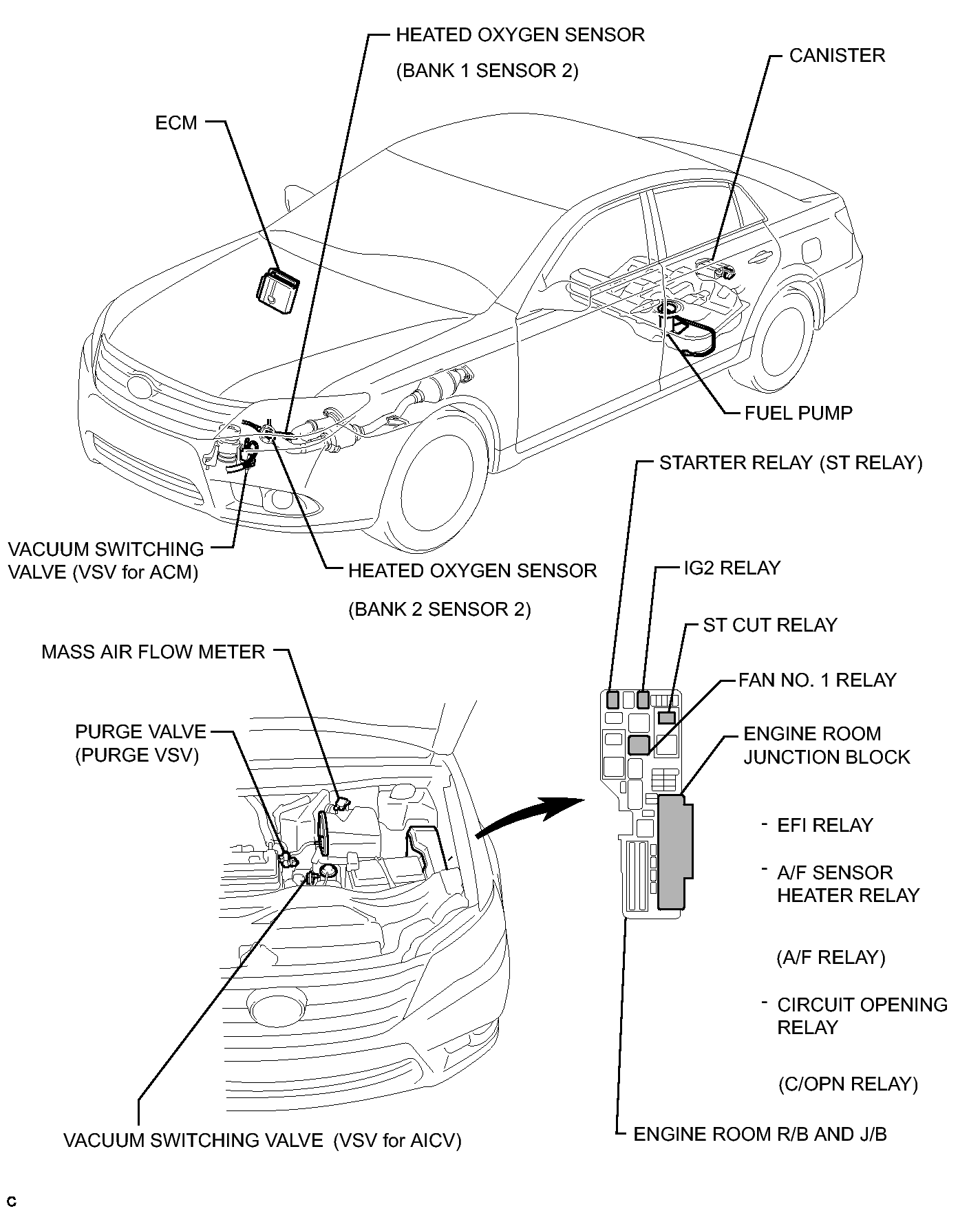

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY339325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

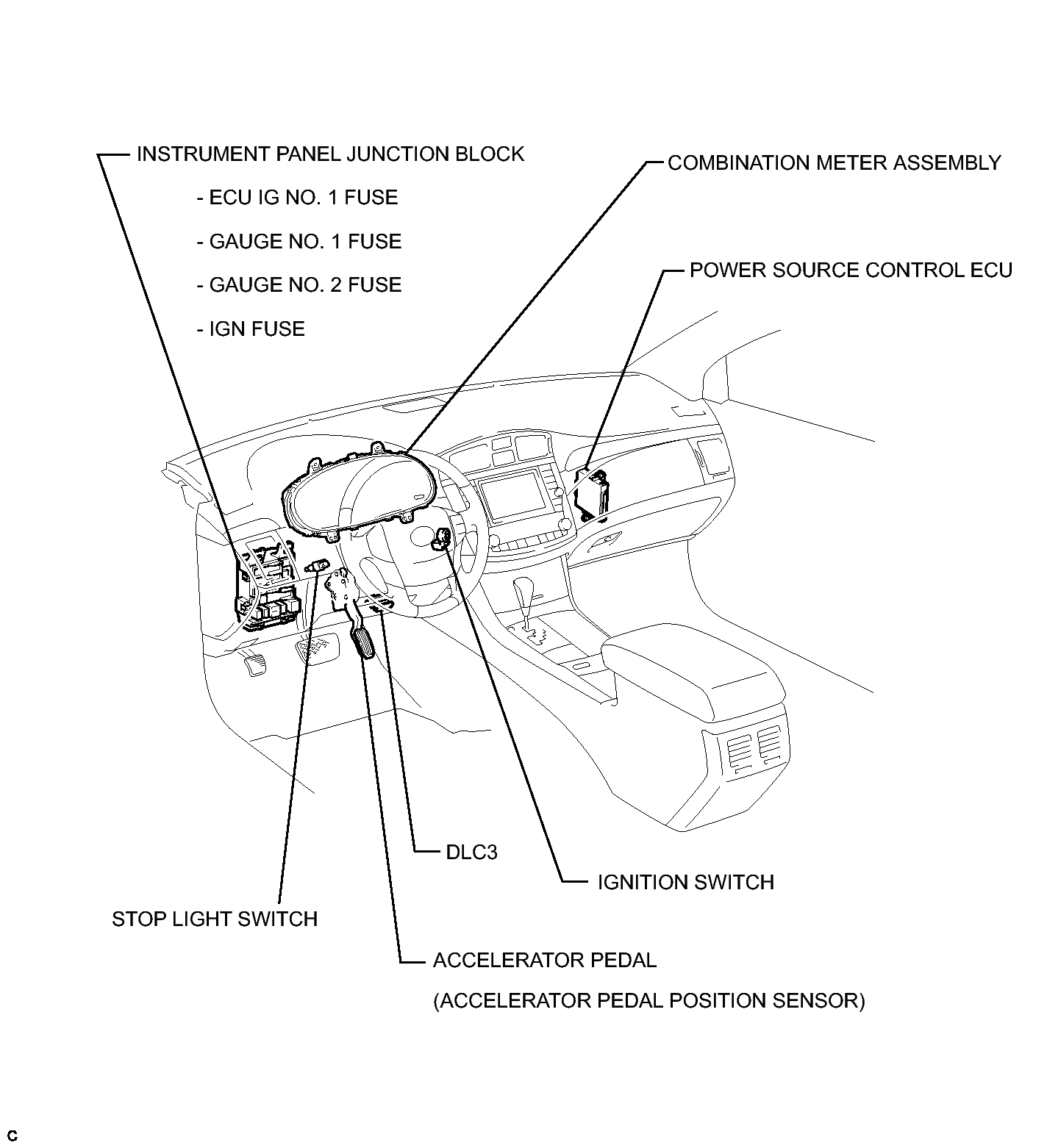

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY294688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

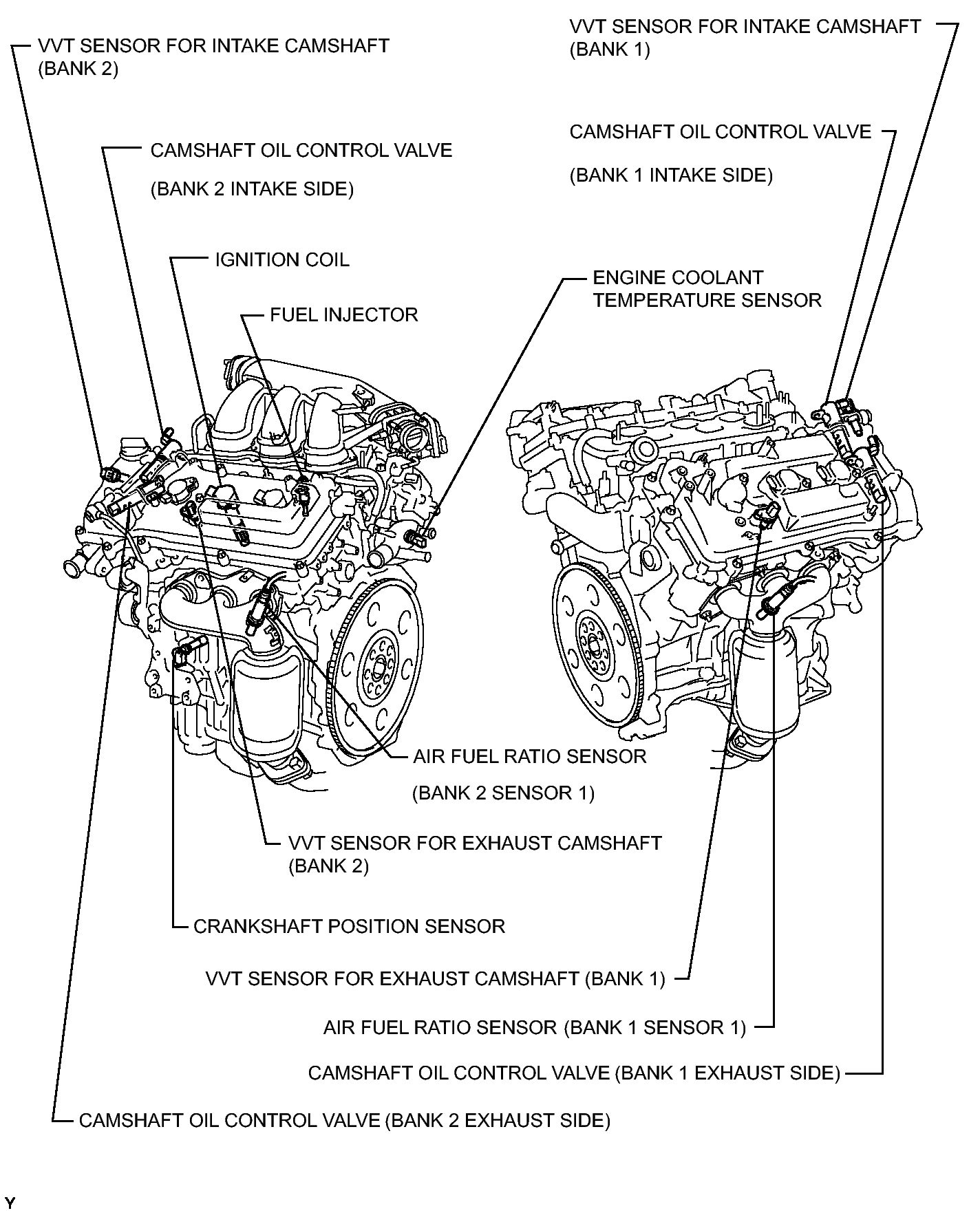

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY307249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

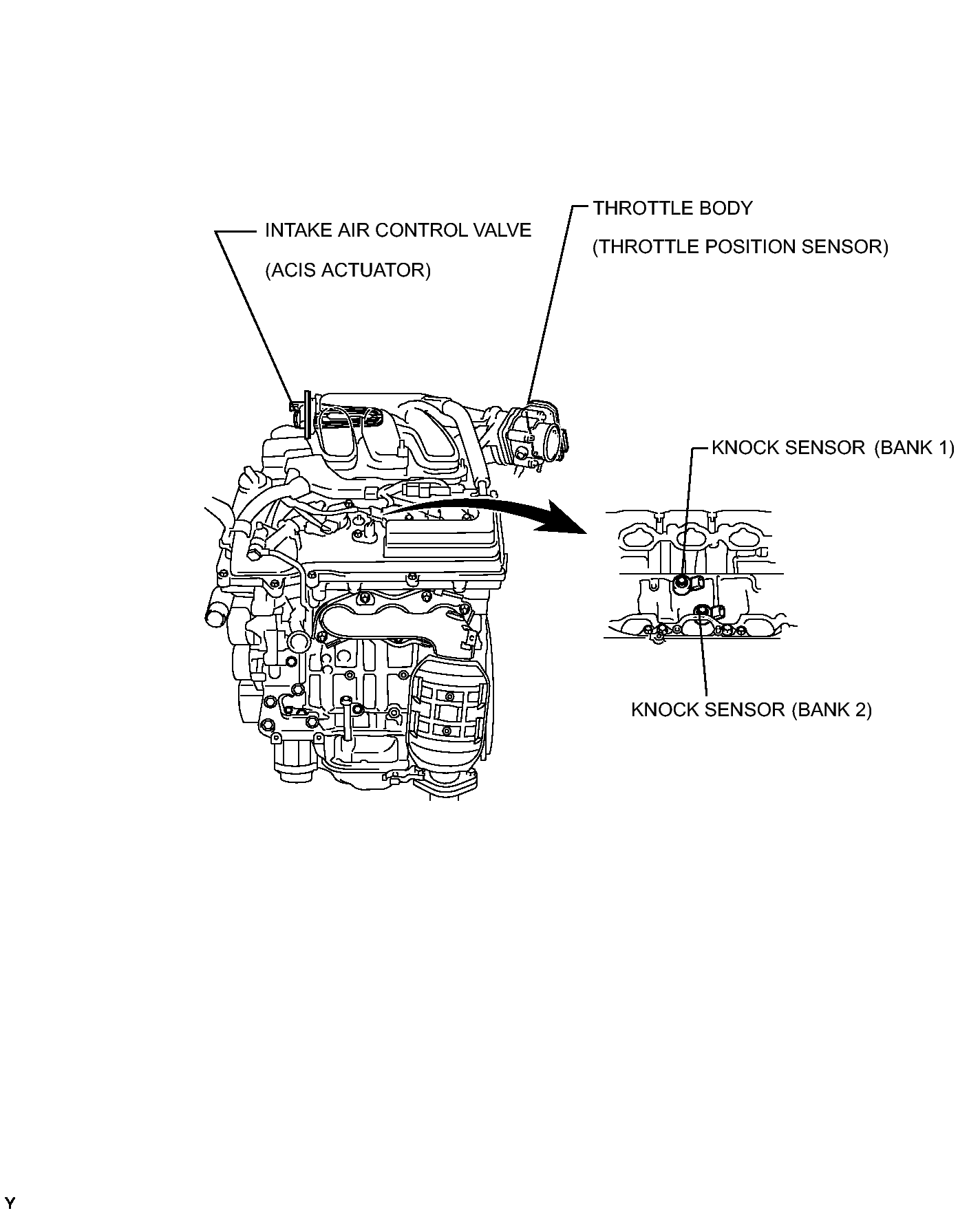

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY295723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
