Model Code Identification & Line-Up

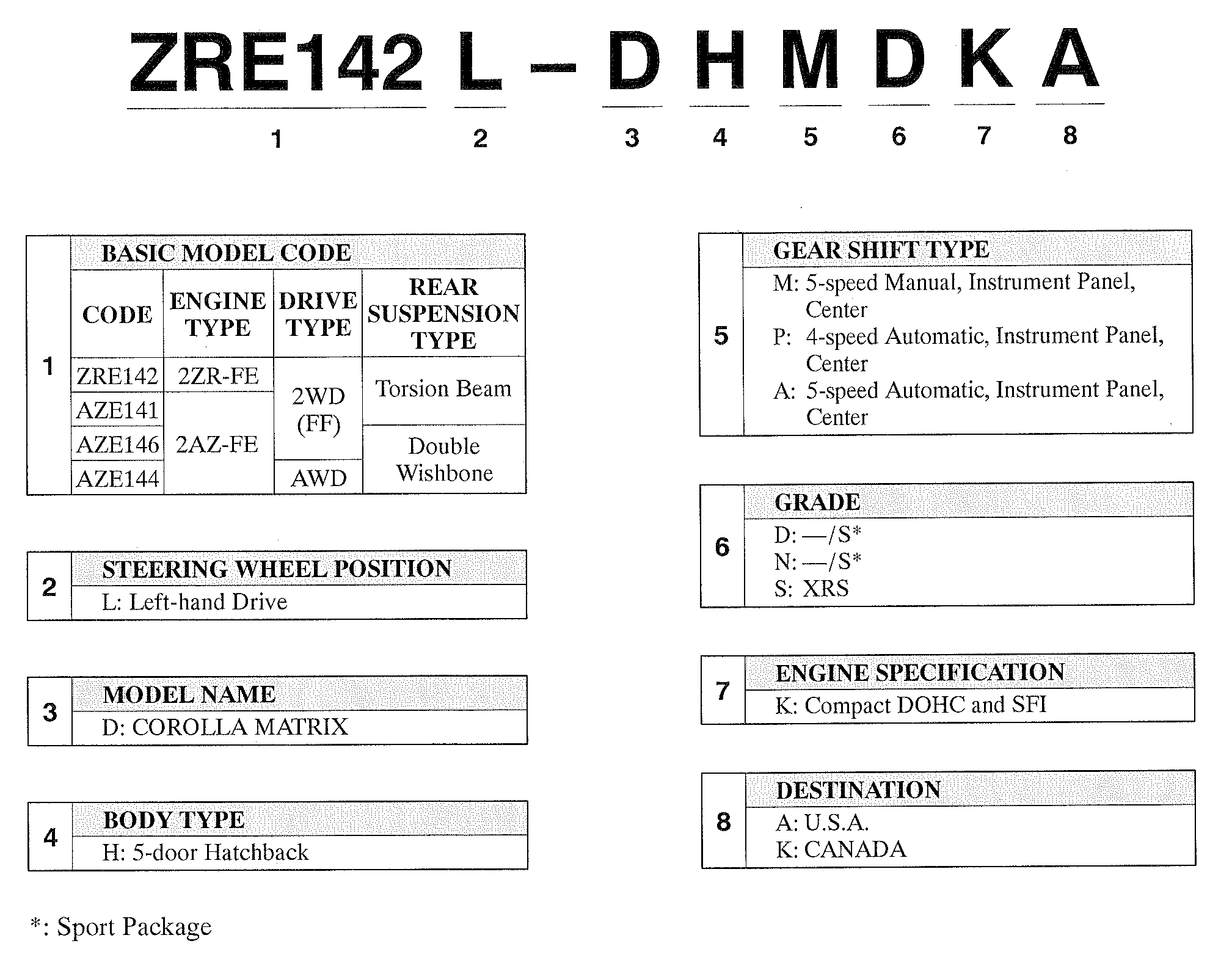

Fig 1: Model Code Identification

G00512094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

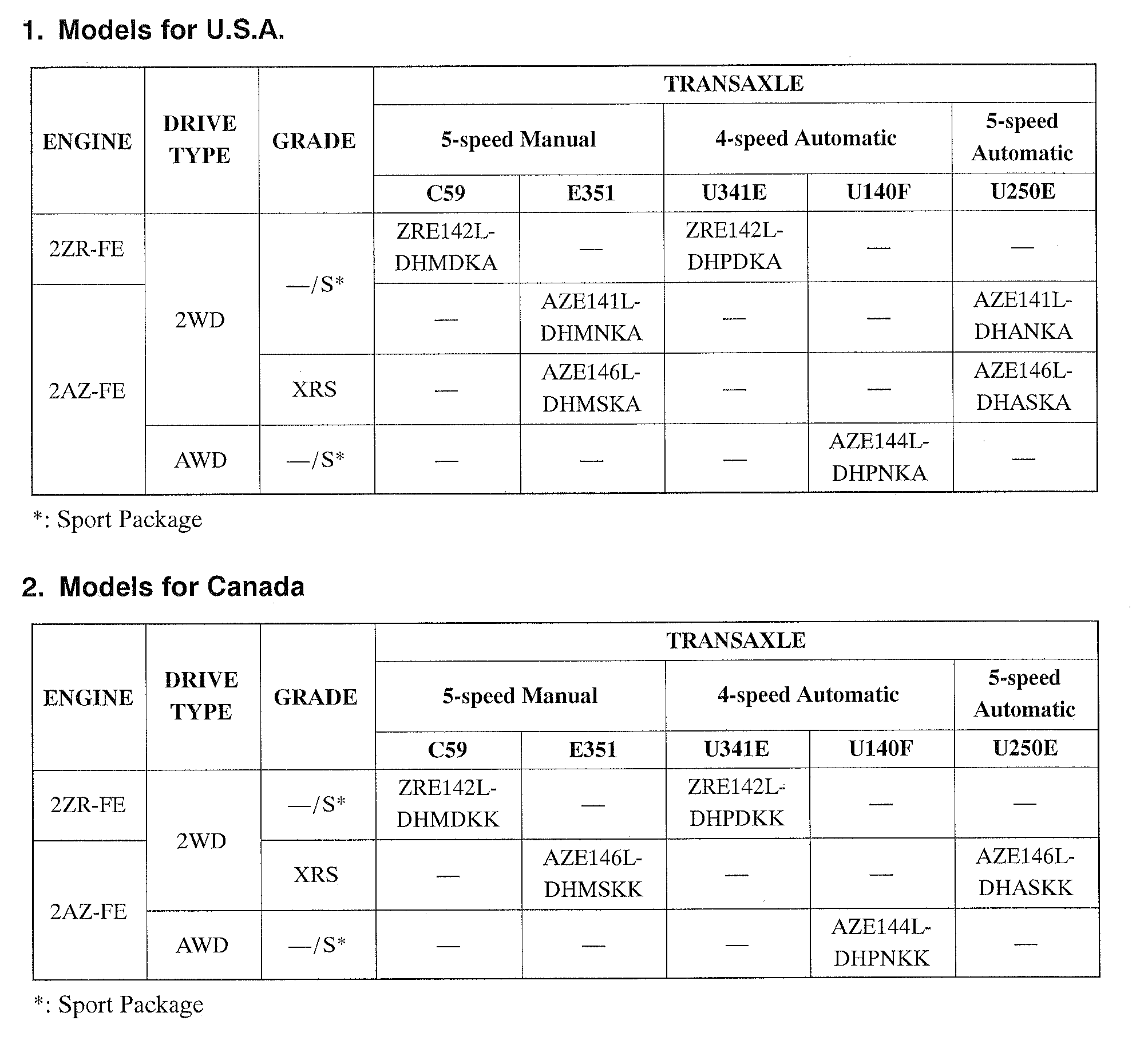

Fig 2: Model Line-Up

G00512095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
