Home >> Toyota >> 2013 >> FJ Cruiser RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Camshaft Oil Control Valve >> Components >> Illustration

Camshaft Oil Control Valve: Components: Illustration

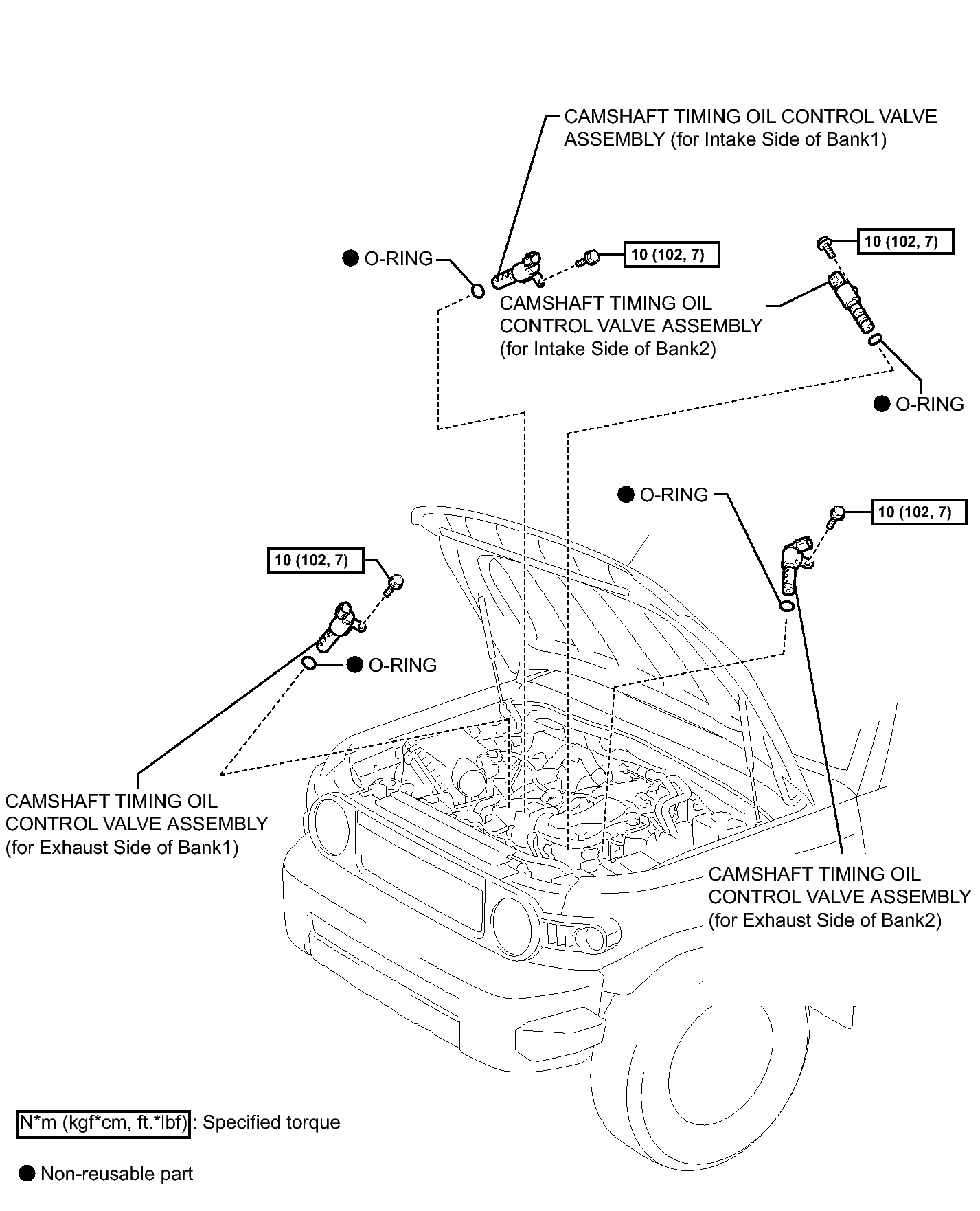

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications

GTY189198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
