Home >> Toyota >> 2021 >> Venza LE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Service Information >> Knock Sensor >> Removal [10/2022 - ] >> Procedure

Removal [10/2022 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE KNOCK CONTROL SENSOR

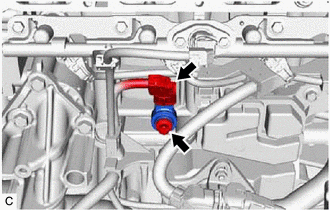

    1. Disconnect the knock control sensor connector.
      GTY762819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor from the cylinder block sub-assembly.
      NOTE:

      If the knock control sensor has been struck or dropped, replace it.
