Removal [02/2024 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE FRONT ENGINE MOUNTING INSULATOR LH

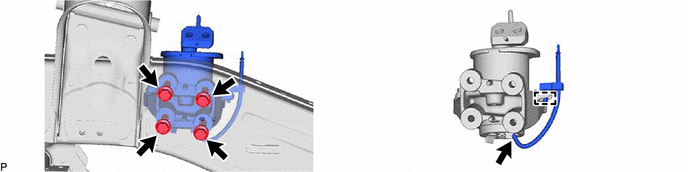

    1. GTY1225963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT ENGINE MOUNTING INSULATOR RH

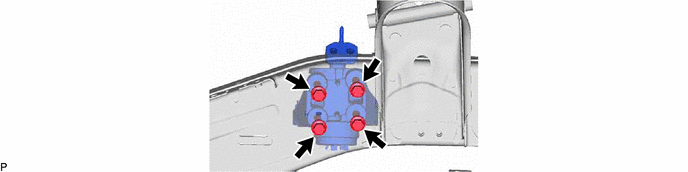

    1. GTY1219968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
