Diverter Valve

Check for air being dumped on deceleration by disconnecting air outlet pipe at diverter valve. Open and close throttle quickly and check for valve operation.

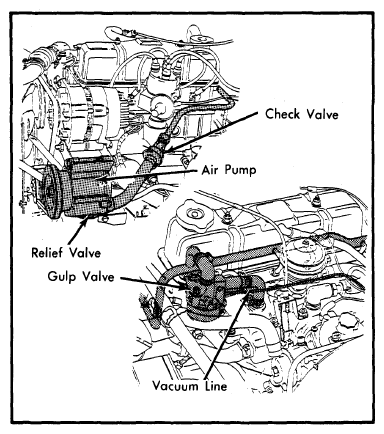

Fig 1: Triumph Spitfire Air Injection System
G09310643Courtesy of NOT AVAILABLE
