Hall Effect Sender

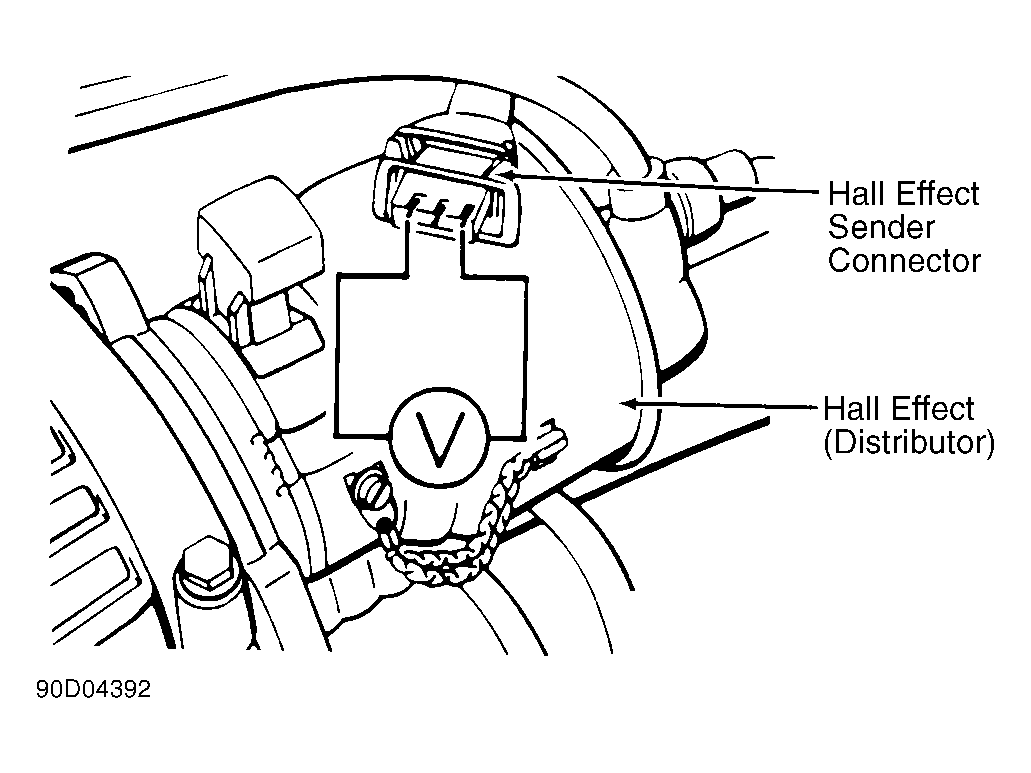

  1. Remove coil secondary wire and attach to ground. Disconnect Hall Effect sender harness connector at distributor. Using an LED Test Light (US 1115), check for voltage between outer terminals of connector. See Fig 1 and Figure . With ignition on, light should be on. If light is on, go to next step. If light is not on, check wiring for short or open circuit. If wiring is okay, replace ignition control unit.
  2. Reconnect Hall Effect sender harness connector. Pull back Hall Effect sender boot to expose contact terminals. Connect LED Test Light (US 1115) probe to center contact and battery positive terminal. See Fig 1 . Observe test light while cranking engine. If test light blinks, Hall Effect sender is okay. If light does not blink, replace Hall Effect sender.

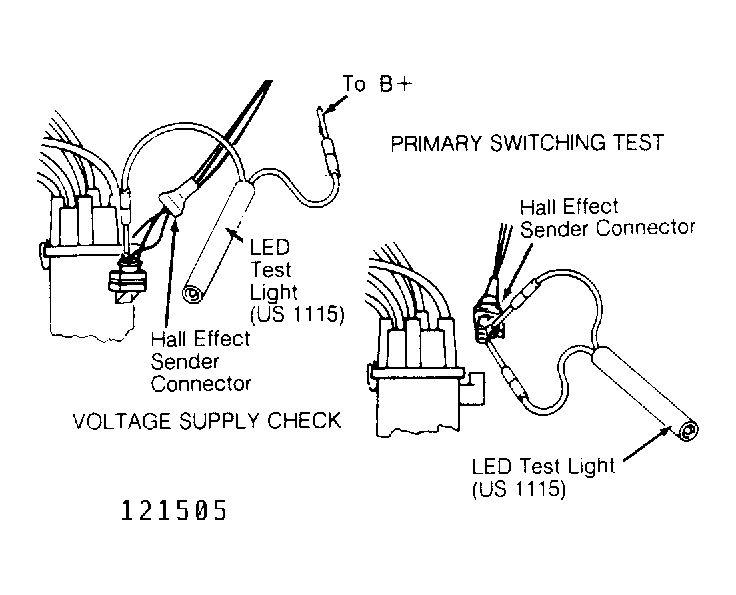

Fig 1: Testing Hall Effect Sender (Typical)
G121505Courtesy of VOLKSWAGEN UNITED STATES, INC.
