Home >> Volvo >> 1986 >> 244 Base, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> VOLVO Guard Anti-Theft System >> Programming >> Control Unit >> Function Programming

Function Programming

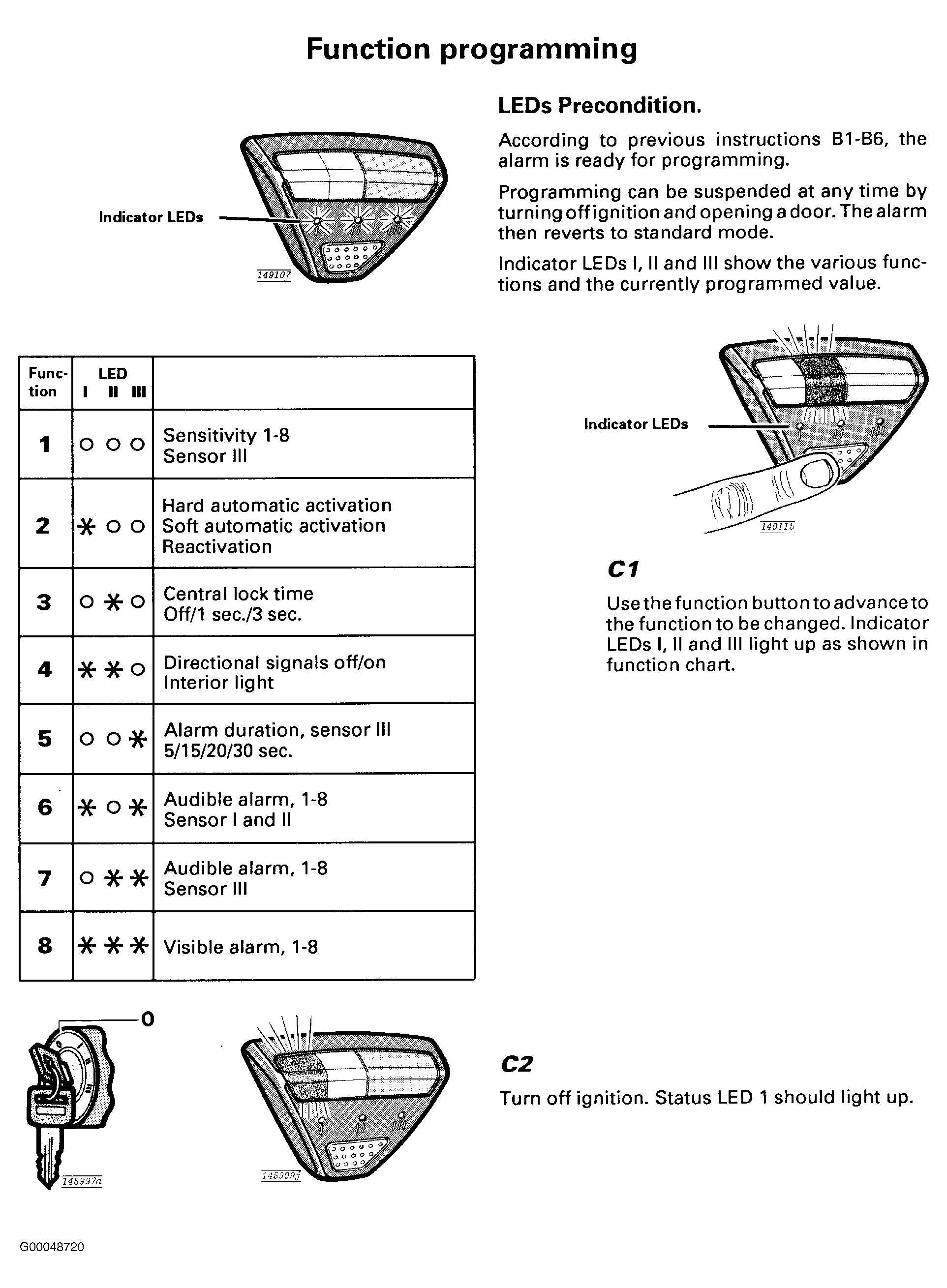

Fig 1: Control Unit Function Programming (1 Of 3)
G00048720Courtesy of VOLVO CARS OF NORTH AMERICA.

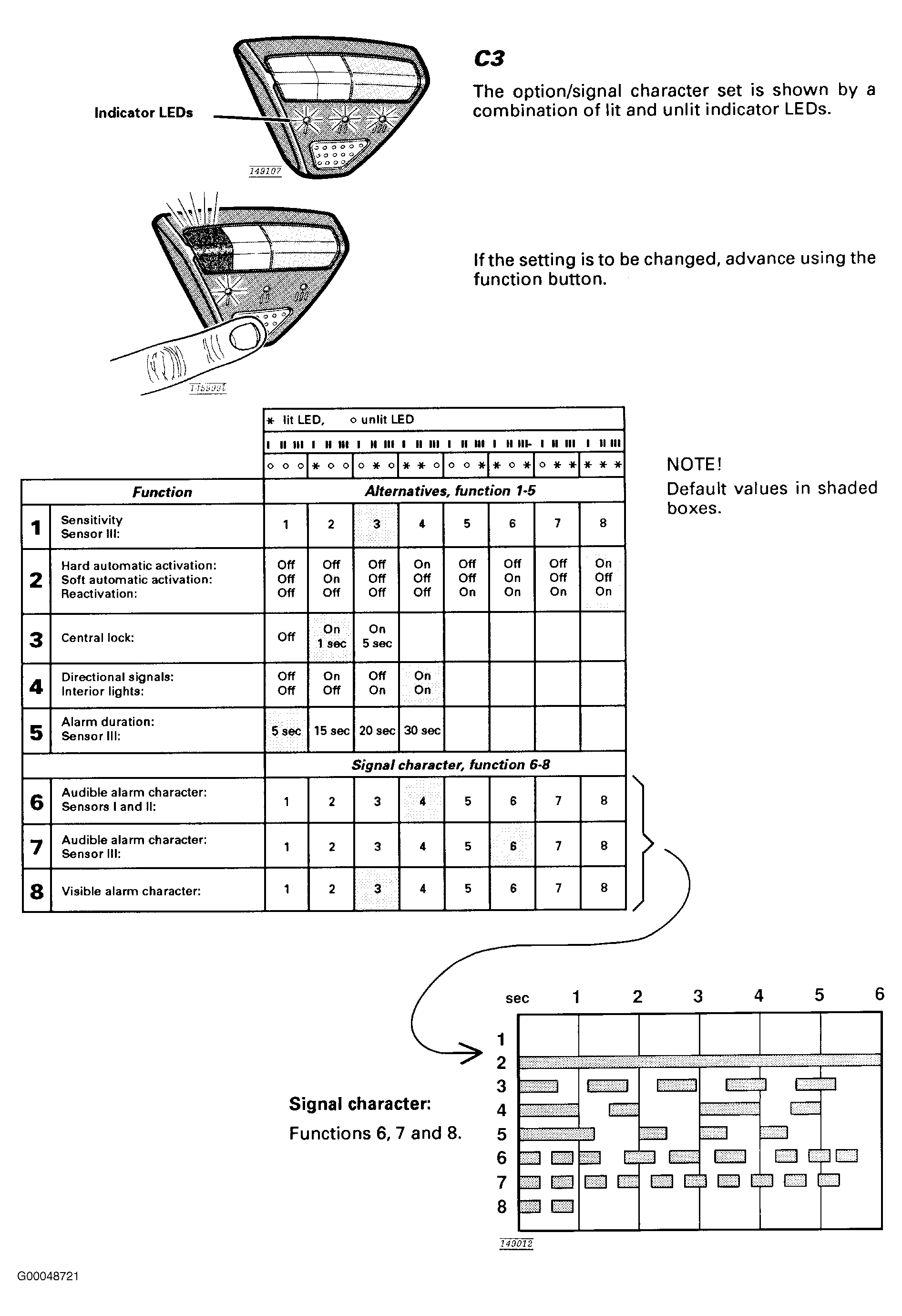

Fig 2: Control Unit Function Programming (2 Of 3)
G00048721Courtesy of VOLVO CARS OF NORTH AMERICA.

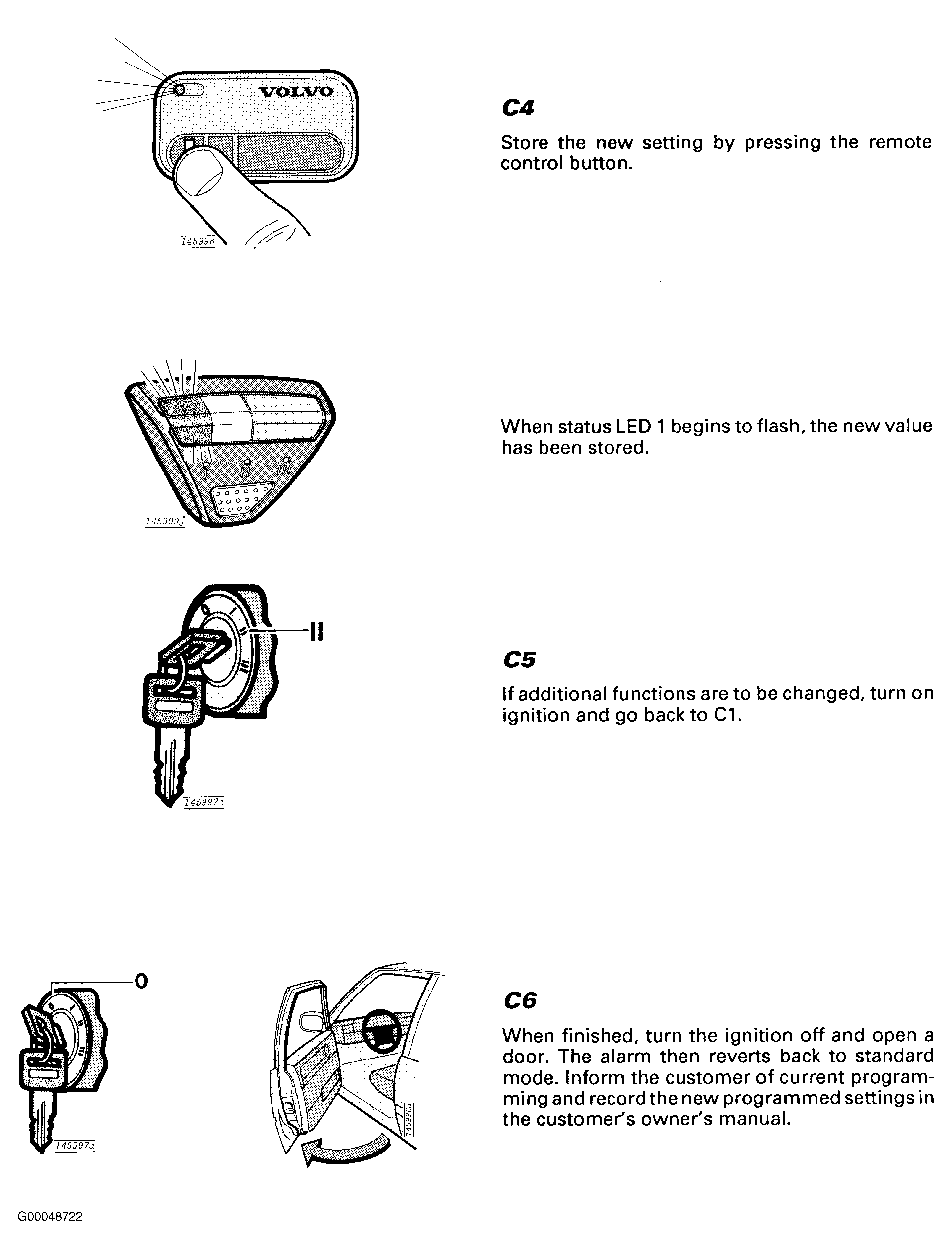

Fig 3: Control Unit Function Programming (3 Of 3)
G00048722Courtesy of VOLVO CARS OF NORTH AMERICA.
