V6 Vehicles

  1. Connect a test lamp between micro-switch yellow wire and 12V current supply.
  2. Check that switch closes (test lamp lights) .04-.1" (1-2.5 mm) before throttle control pulley touches full throttle stop. See Fig 1 . Adjust if required.

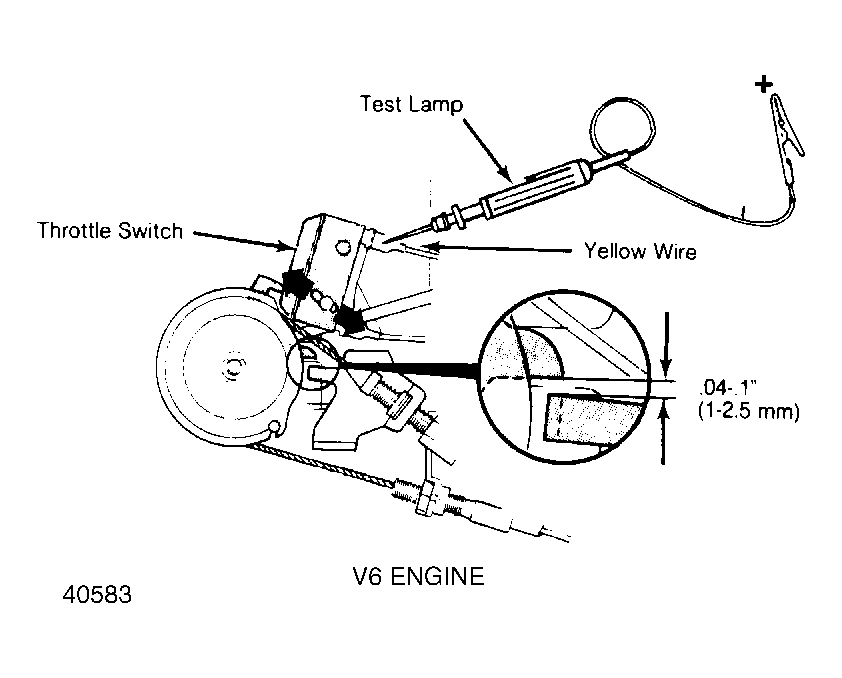

Fig 1: Testing Throttle Switch Operation (V6)
G40583
