Boost pressure sensor

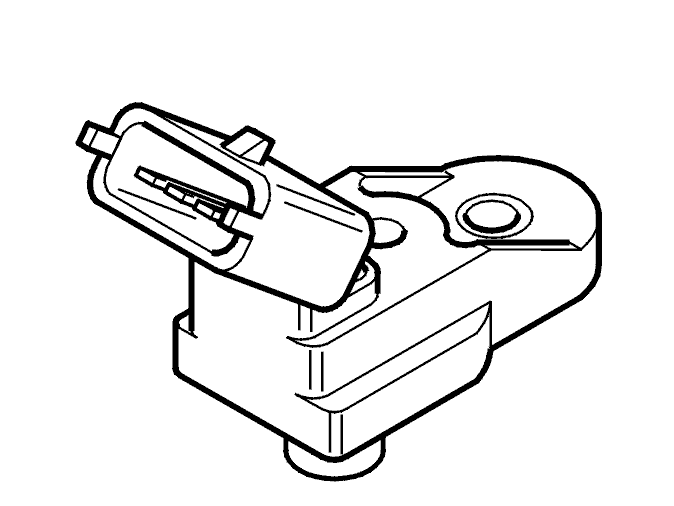

Fig 1: Identifying Boost Pressure Sensor
GLL102997Courtesy of VOLVO CARS OF NORTH AMERICA.

Piezo resistive lineal pressure sensor. Measurement range 20.0 -250 kPa.

P (kPa) 90.0 101.3 150.0 200.0
V /(Volt) 1.69 1.90 2.80 3.71
