Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

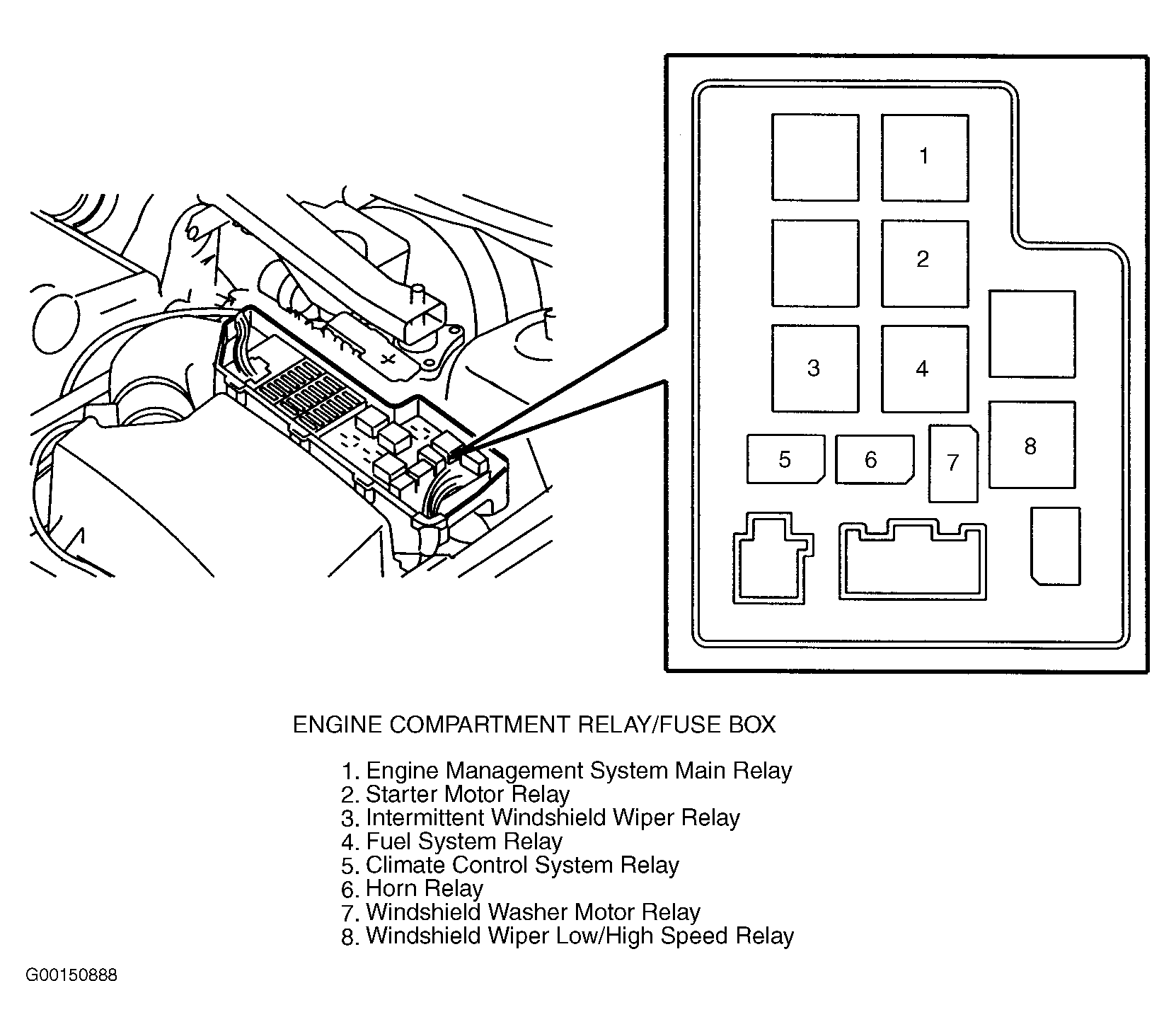

Fig 1: Engine Compartment Relay/Fuse Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

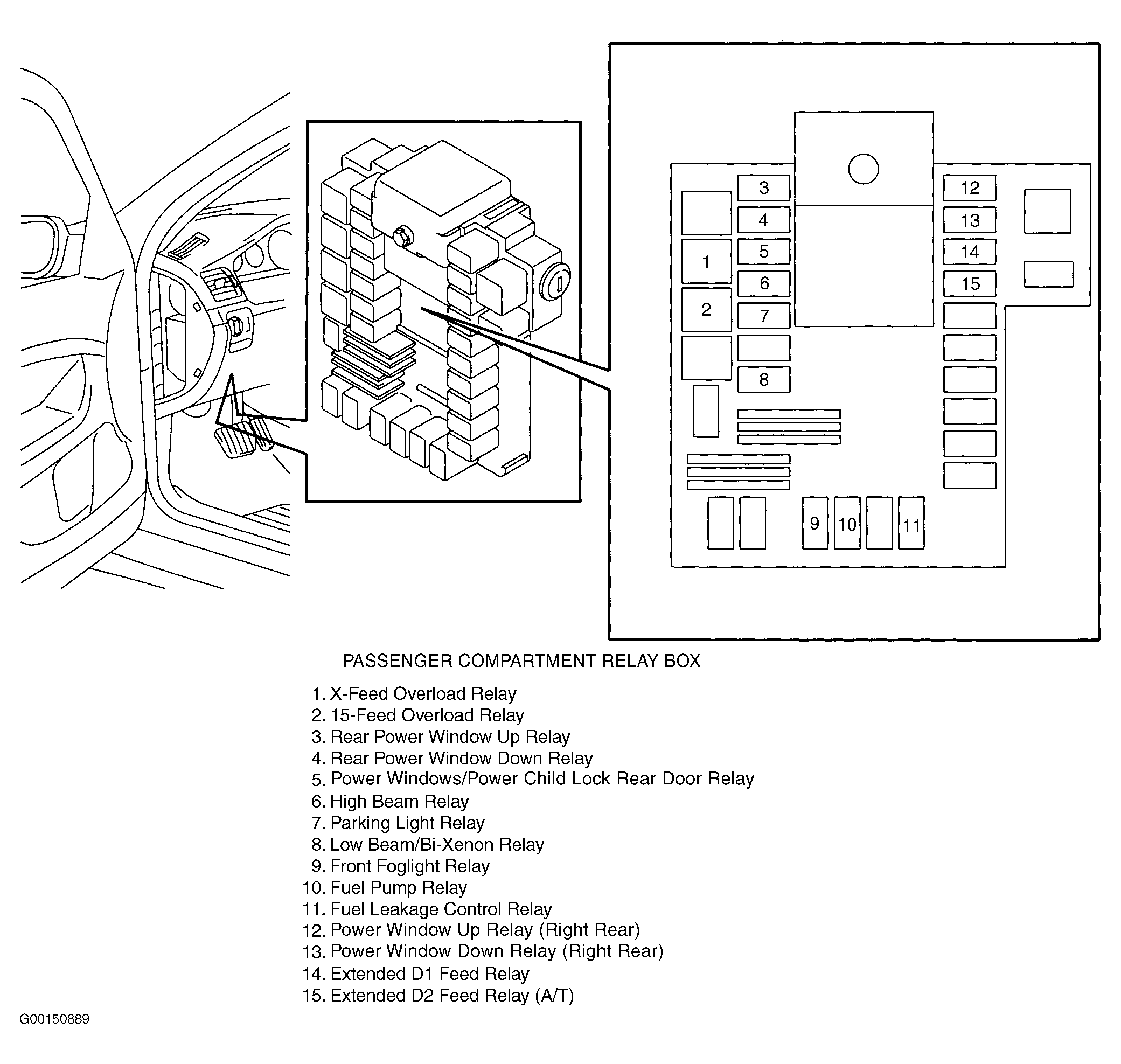

Fig 2: Passenger Compartment Relay Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

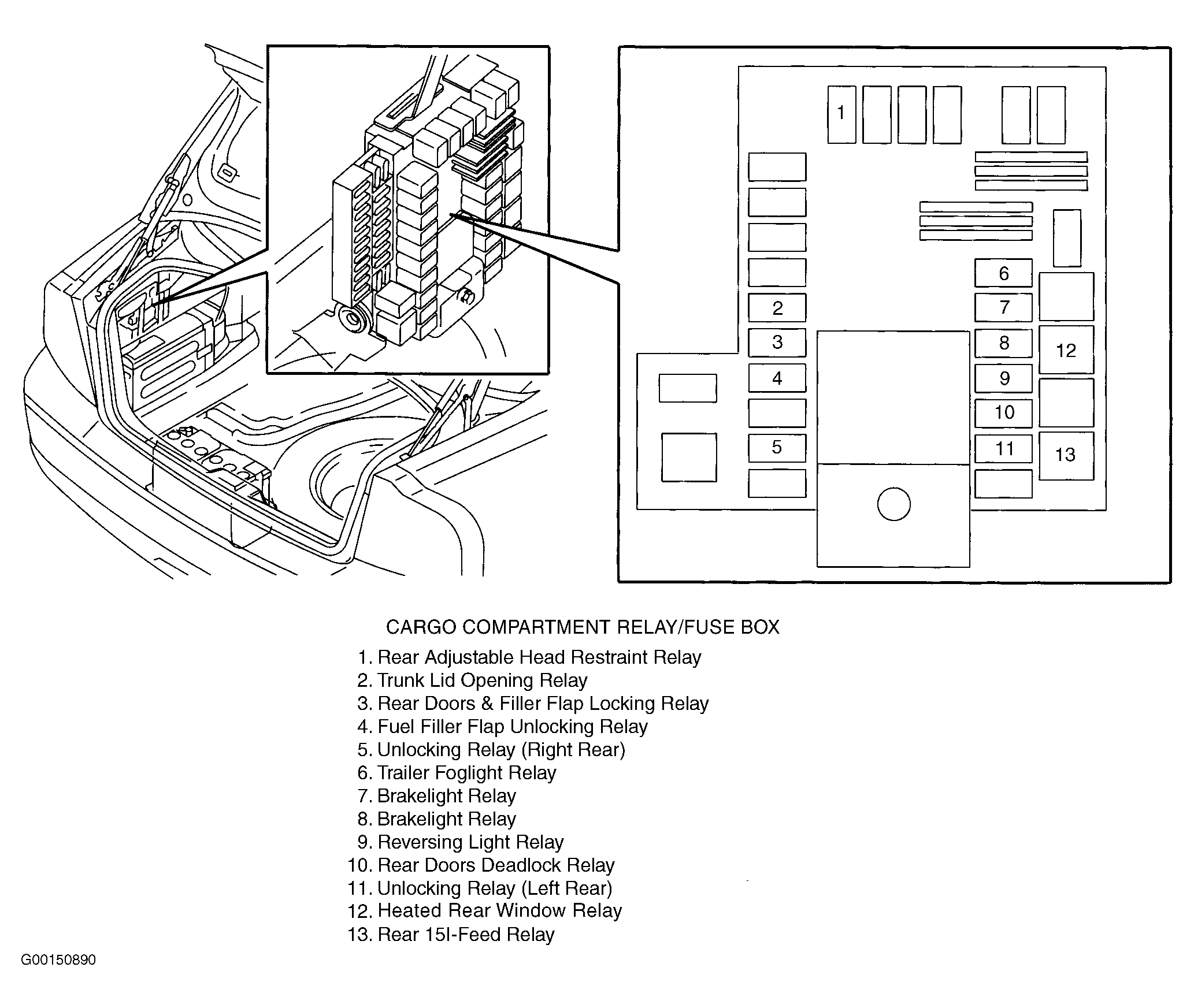

Fig 3: Cargo Compartment Relay/Fuse Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

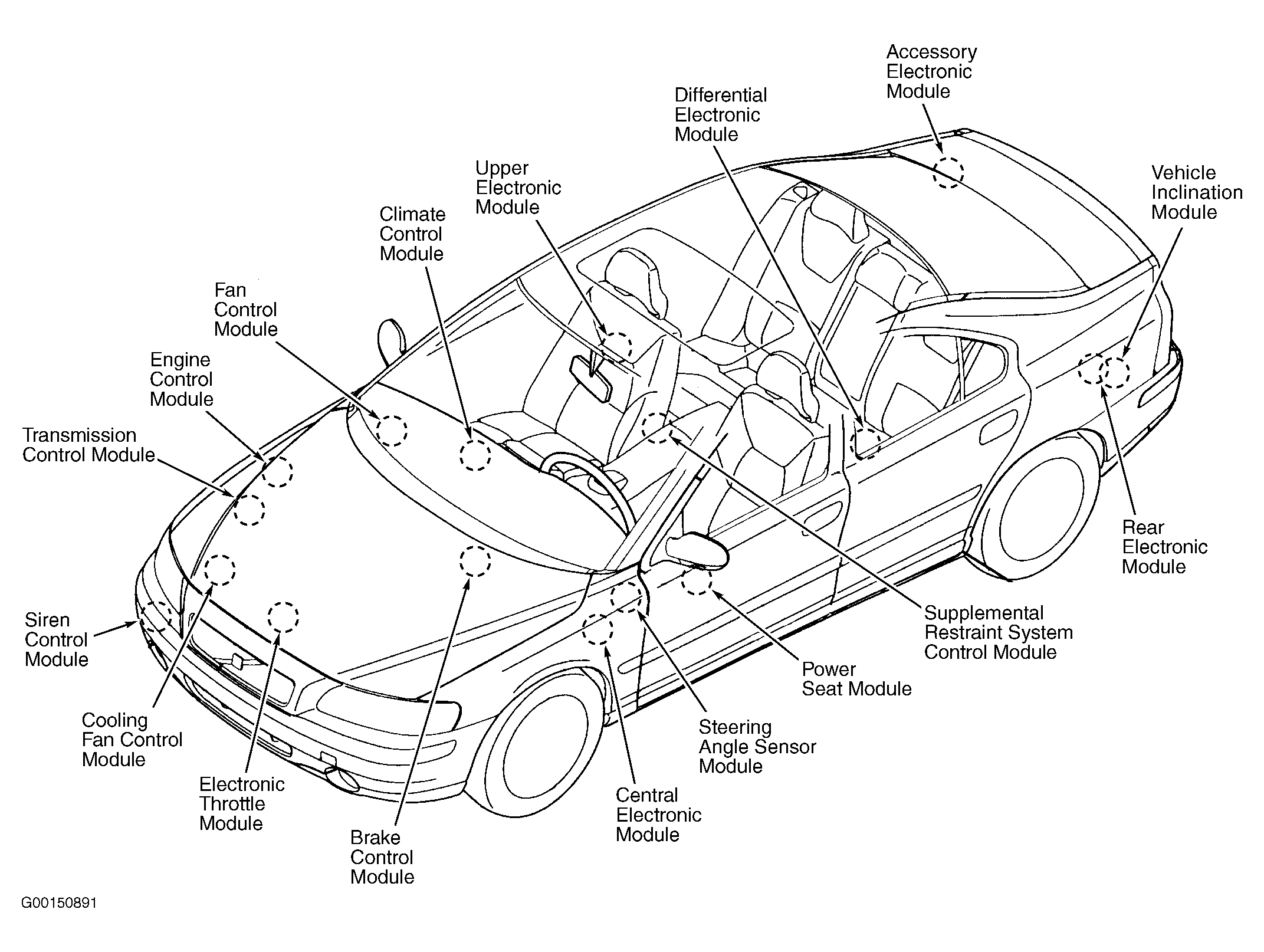

Fig 4: Vehicle Overview

Courtesy of VOLVO CARS OF NORTH AMERICA.
