Body Dimensions
>>
Body Side
>>
Body Side, Alignment Chart
>>
Door Hinge
Door Hinge

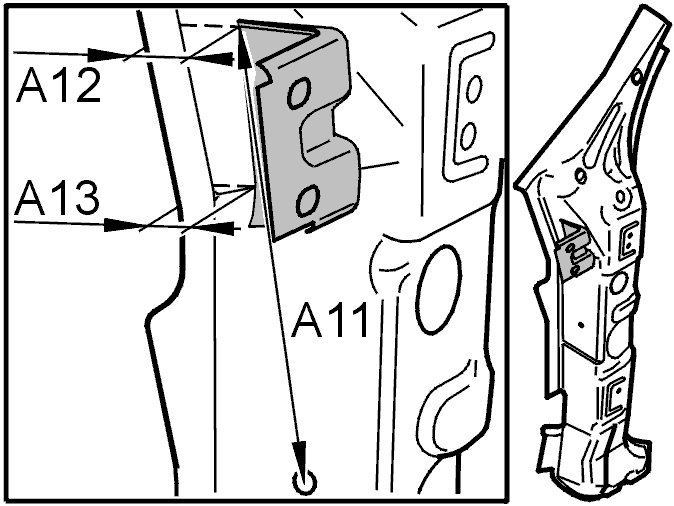

Fig 1: Door Hinge Position Measurement Locations
Courtesy of VOLVO CARS OF NORTH AMERICA.
A11 = 210 mm
A12 = 27 mm
A13 = 20 mm
Courtesy of VOLVO CARS OF NORTH AMERICA.
