Roof, Alignment Dimensions

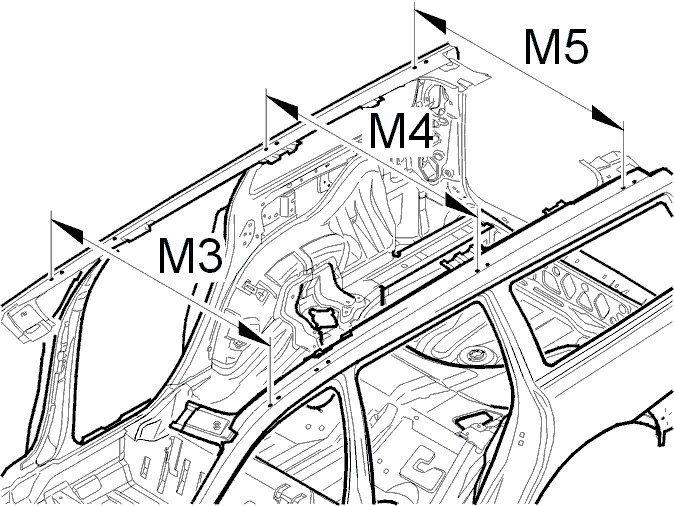

Fig 1: Roof Side Rail Position Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimension is determined from the front hole.

M3 = 1156 mm

M4 = 1119 mm

M5 = 1108 mm

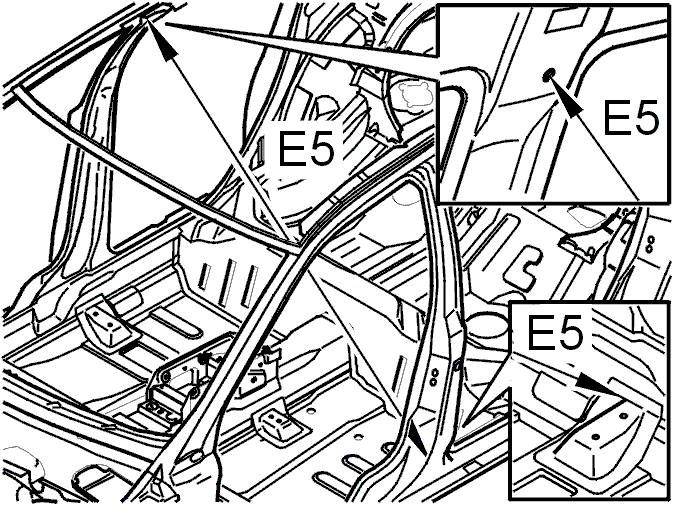

Fig 2: Body Side To Roof Position Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

E5 = 1648 mm
