Engine Control Module (ECM): Removal

Fig 1: Identifying Ignition In OFF Position
GLL166009Courtesy of VOLVO CARS CORPORATION

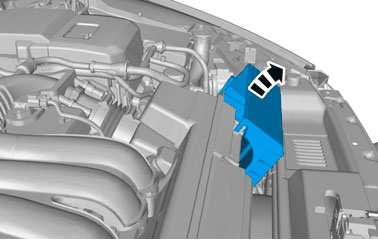

Fig 2: Removing Engine Control Module Cover
GLL169574Courtesy of VOLVO CARS CORPORATION

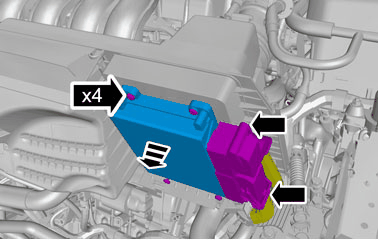

Fig 3: Removing Engine Control Module
GLL169575Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

NOTE:

Make sure that the seal is correctly located.
