PULSER Test

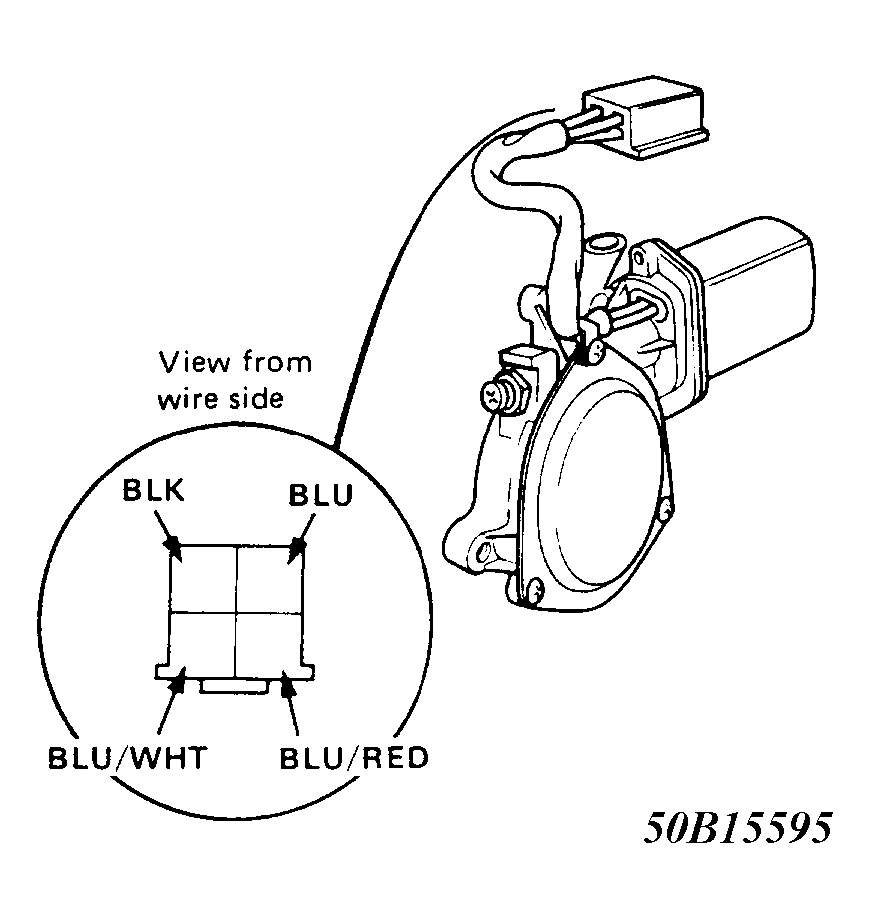

Measure resistance between Blue and Black terminals when running the motor by connecting battery wires to Blue/White and Blue/Red terminals. See Figure . Ohmmeter should indicate some valve between 20-50 ohms as the motor runs.
Measure resistance between Blue and Black terminals when running the motor by connecting battery wires to Blue/White and Blue/Red terminals. See Figure . Ohmmeter should indicate some valve between 20-50 ohms as the motor runs.
