Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

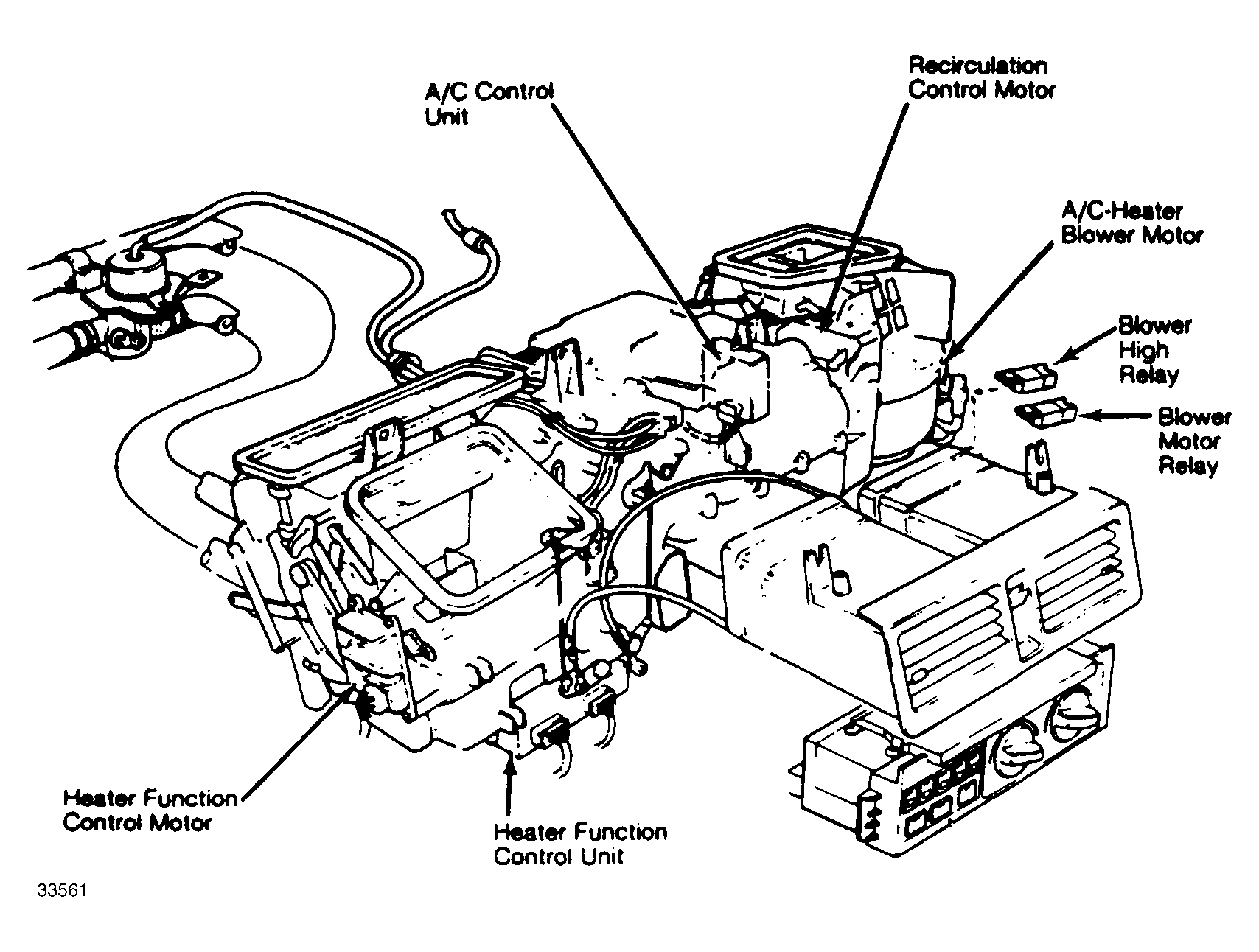

| A/C Control Unit | On rear left side of blower motor housing. See Figure . |

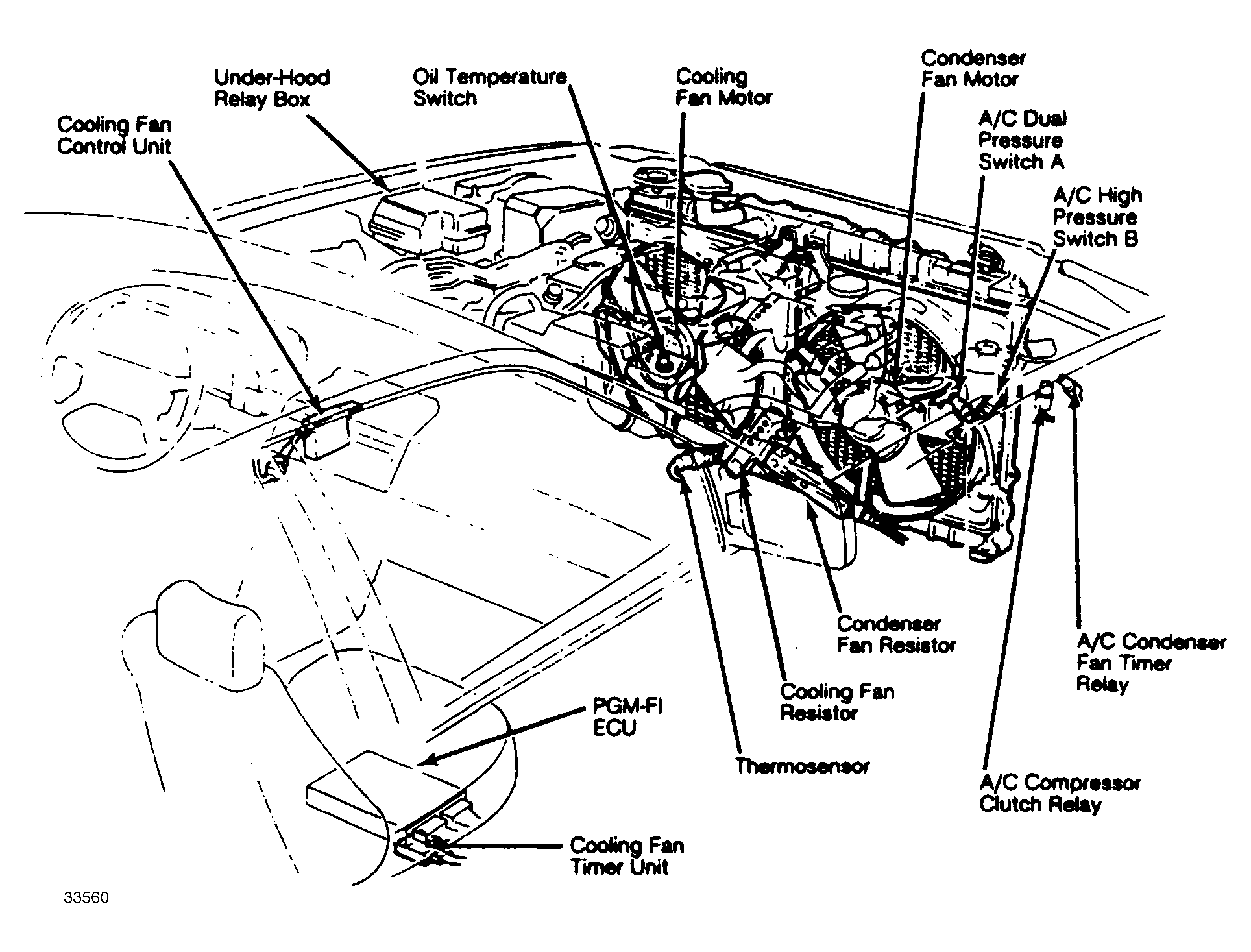

| Cooling Fan Control Unit | Under center of dash. See Figure . |
| Cooling Fan Timer Unit | Under front right seat, below PGM-FI ECU. See Figure . |

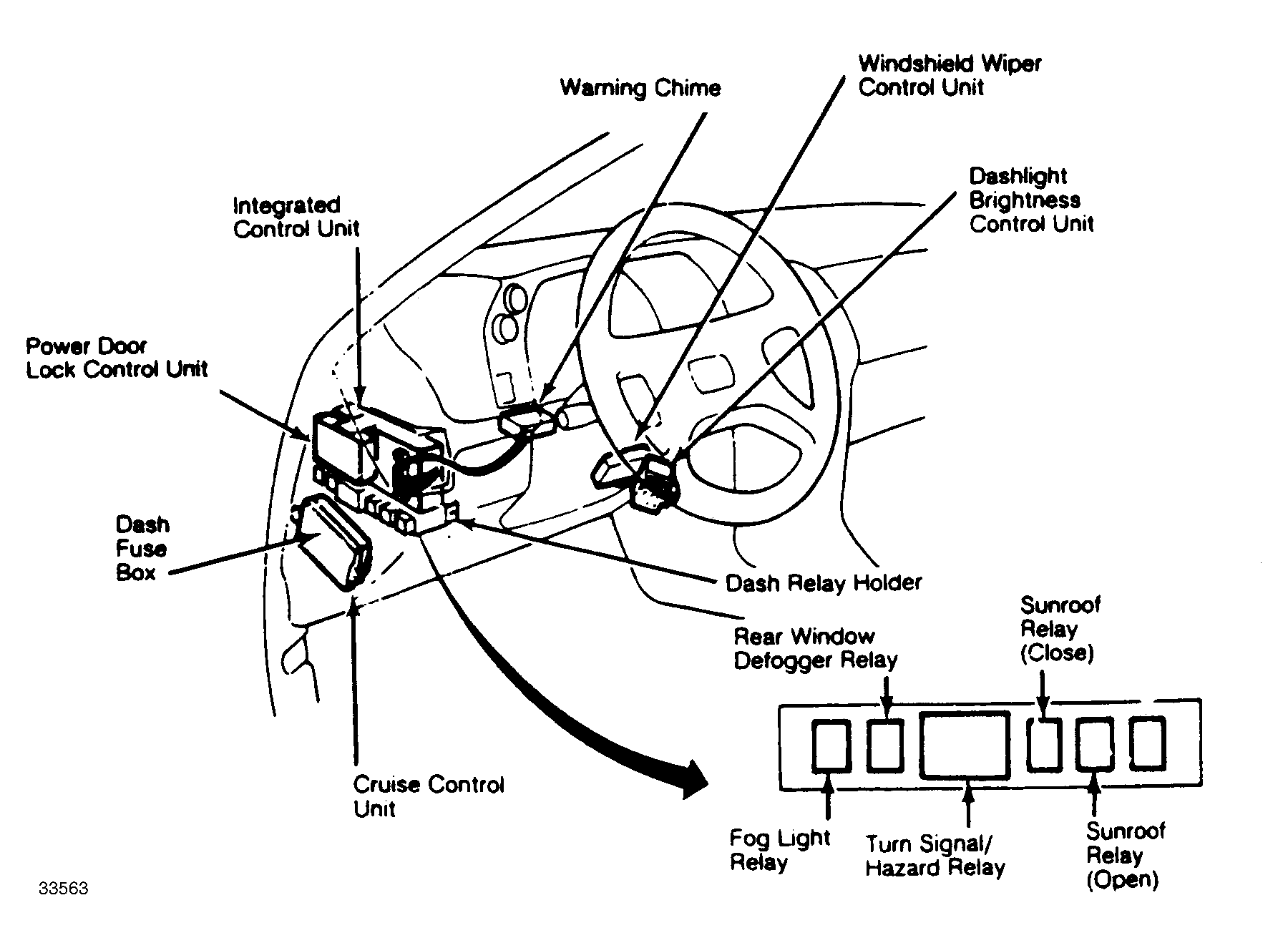

| Cruise Control Unit | Under left side of dash. See Figure . |
| Dashlight Brightness Ctrl Unit | Attached to dashboard lower panel. See Figure . |
| Heater Function Control Unit | On bottom of heater core assembly. See Figure . |
| Integrated Control Unit | On top of dash relay holder. See Figure . |
| PGM-FI ECU | Under front right seat. See Figure . |
| Power Door Lock Control Unit | On left side of integrated control unit. See Figure . |
| Power Window Control Unit | Inside of driver's door. |
| Windshield Wiper Control Unit | Attached to dashboard lower panel. See Figure . |
