Passenger Window Motor Test

Remove door trim panel. Unplug 2-P connector. Using fused jumper wire, connect Red/Yellow and Red/Blue terminals to battery voltage. See Fig 1 . Test motor in each direction by transposing jumper wires. Motor should run in each direction. Replace motor if it does not operate in both directions.

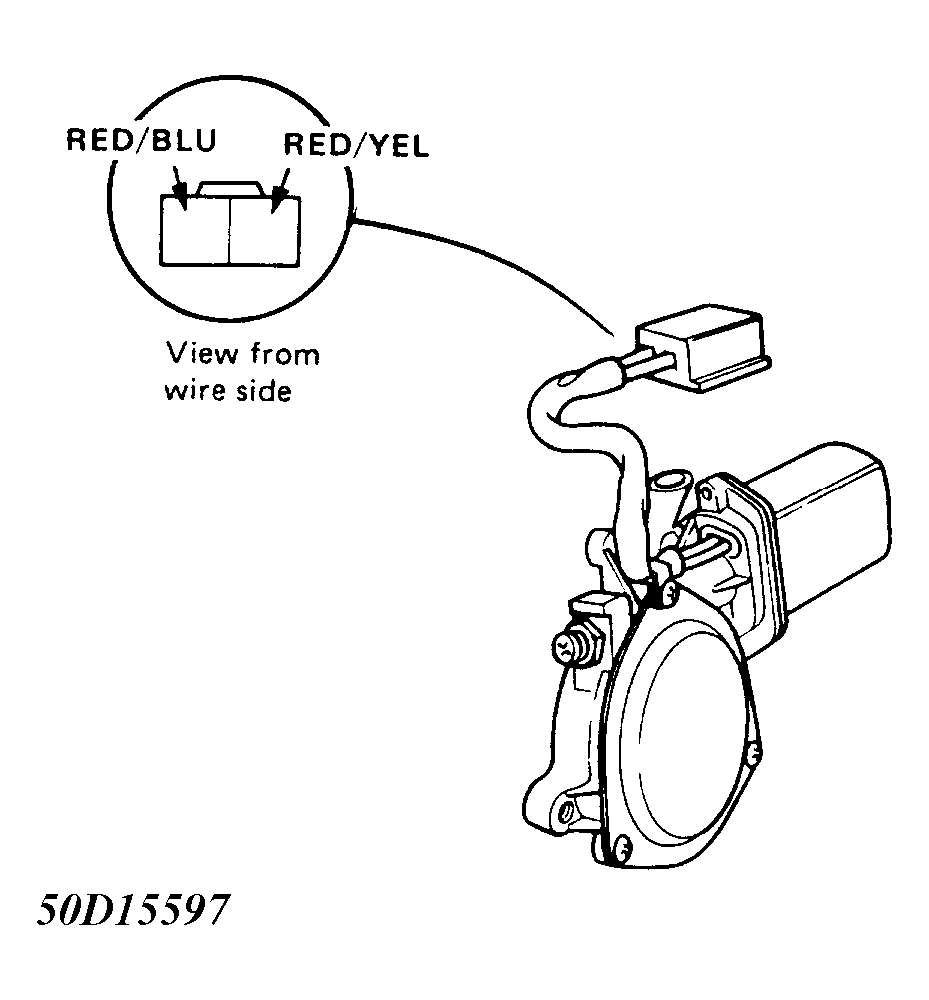

Fig 1: Passenger's Window Motor Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
