Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Control Unit | Under right side of dash, on left side of blower motor housing. See Figure . | |

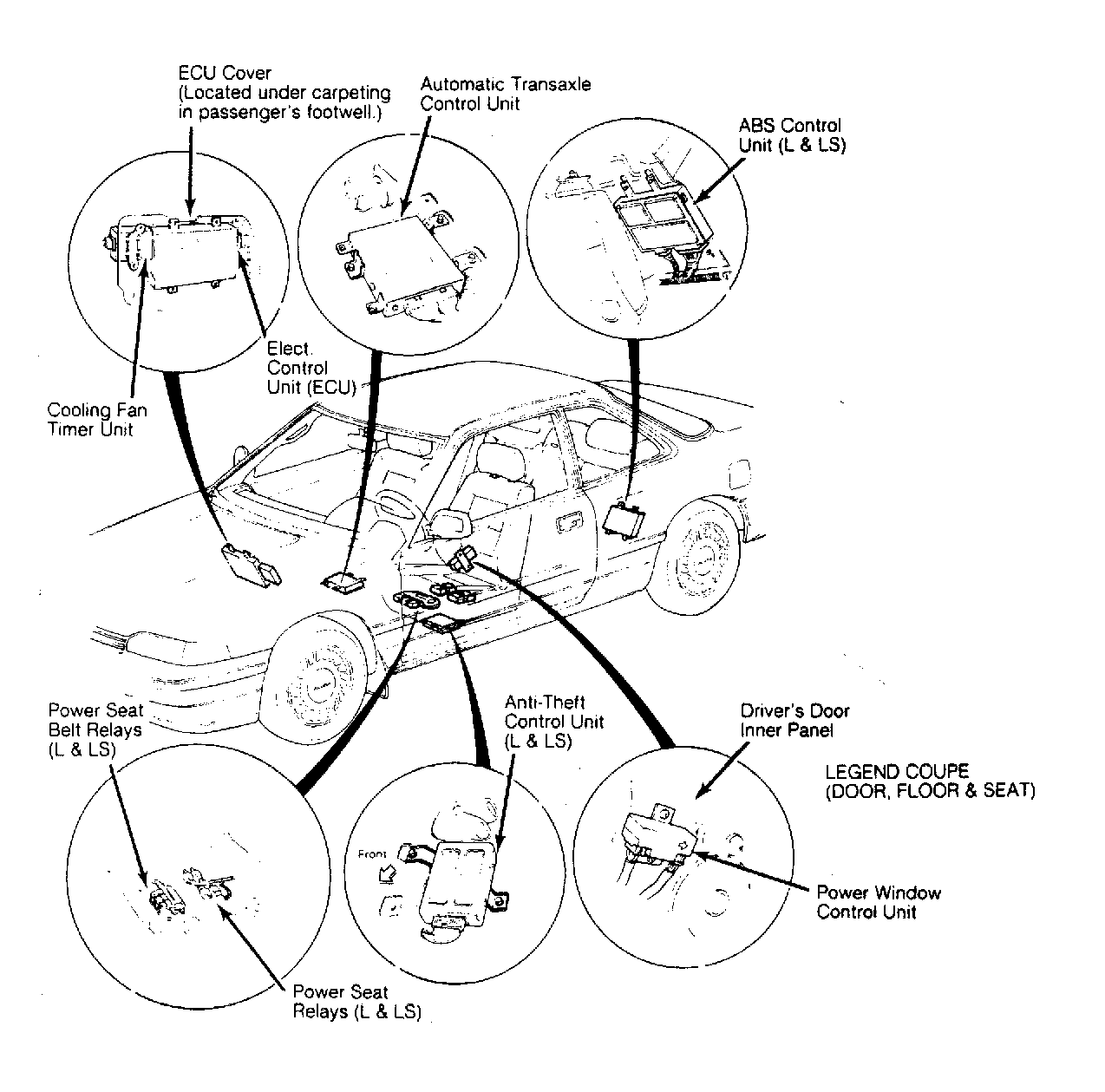

| ABS Control Unit (Coupe) | On left front side of trunk. See Figure . | |
| Anti-Theft Control Unit (Coupe) | On floor, under driver's seat. See Figure . | |
| Automatic Transaxle Control Unit (Coupe) | On floor, under passenger's seat. See Figure . | |
| Cooling Fan Control Unit | Under left side of dash, on left side of evaporator housing. See Figure & Figure . | |
| Cooling Fan Timer Unit | ||
| Coupe | Under carpeting and cover, in passenger's footwell. See Figure . | |
| Sedan | Under passenger's seat. See Figure . | |
| Cruise Control Unit | Under left side of dash, on driver's kick panel. | |
| Electronic Control Unit (ECU) | ||
| Coupe | Under carpeting and cover, in passenger's footwell. See Figure . | |
| Sedan | Under passenger's seat. See Figure . | |

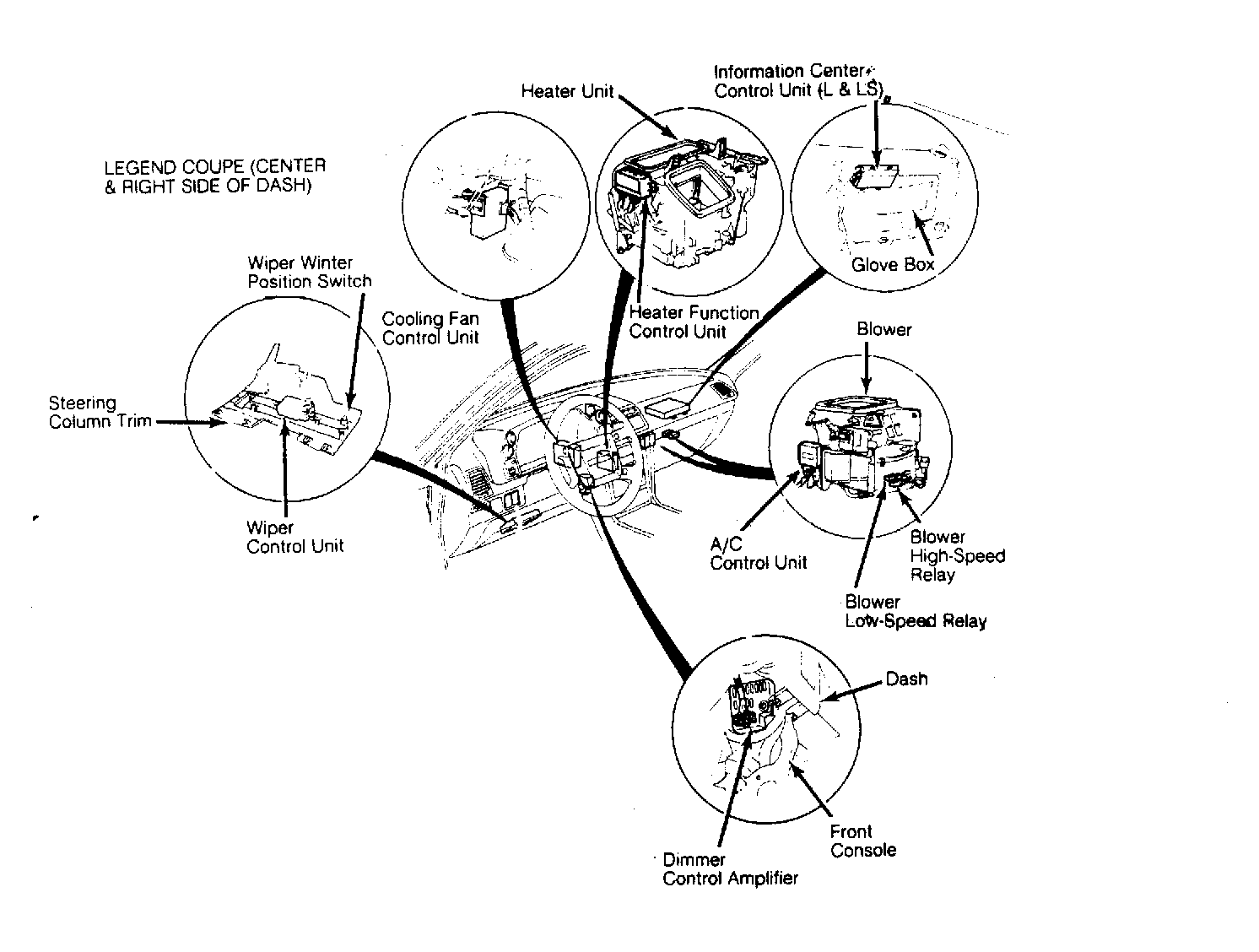

| Heater Function Control Unit | Under right side of dash, on left side of blower motor housing. See Figure . | |
| Ignition Control Module (Coupe) | On left fender panel, behind fuse/relay block. See Figure . | |
| Information Center Control Unit (Coupe) | Under right side of dash, behind glove box. See Figure . | |

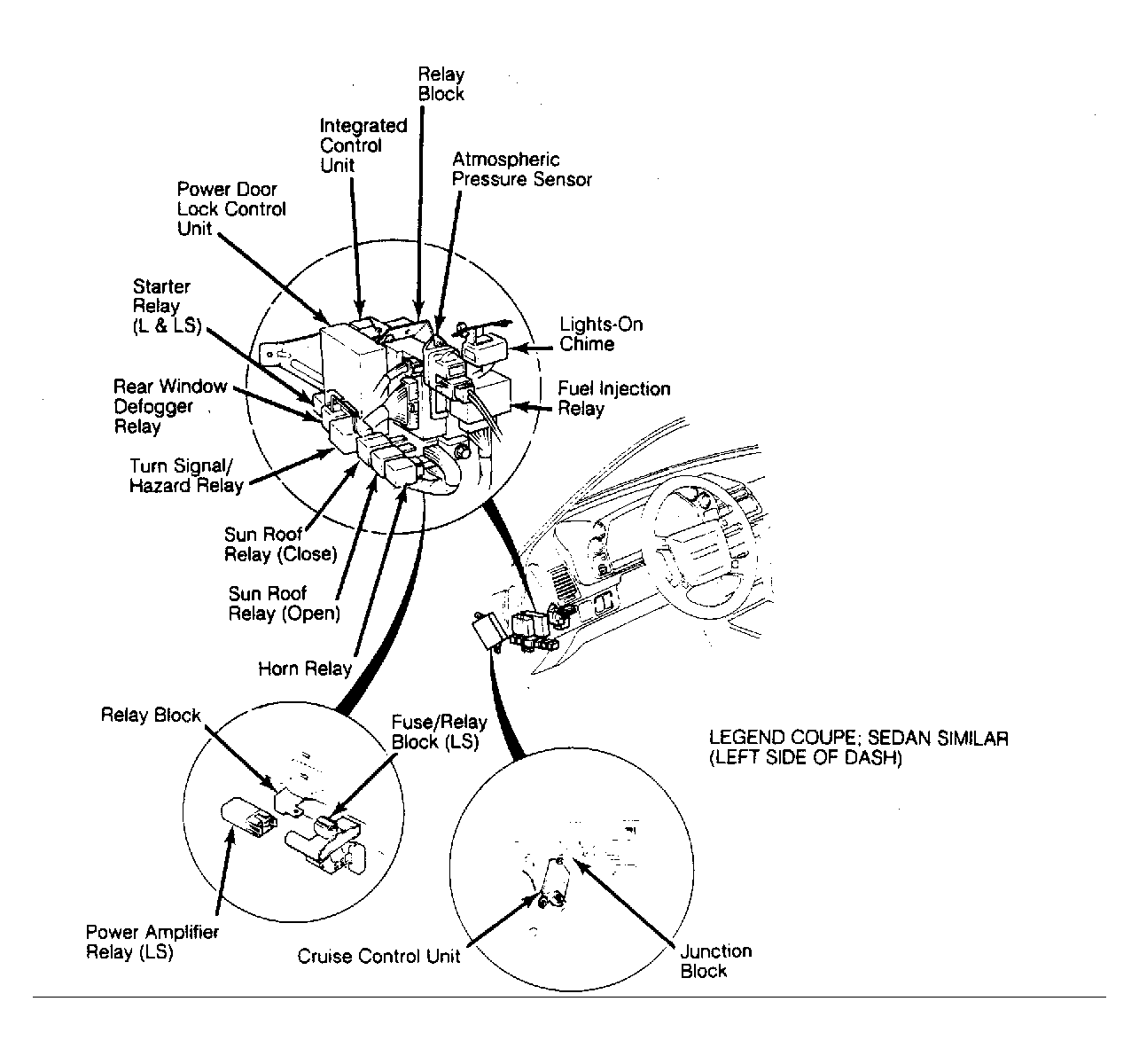

| Integrated Control Unit | Under left side of dash, above relay block. See Figure . | |
| Power Door Lock Control Unit | Under left side of dash, above relay block. See Figure . | |
| Power Window Control Unit | On lower front corner of driver's door. See Figure . | |
| Radiator Fan Control Unit | Under center of dash, behind center support. | |
| Supplemental Restraint System (SRS) Control Unit (Coupe) | Under center of dash, on center console. | |
| Windshield Wiper Control Unit | Under steering column, attached to trim panel. See Figure . | |
