PULSER Test

Measure resistance between Blue and Black terminals when running the motor by connecting battery wires to Blue/White and Blue/Red terminals. See Fig 1 . Ohmmeter should indicate some valve between 20-50 ohms as the motor runs.

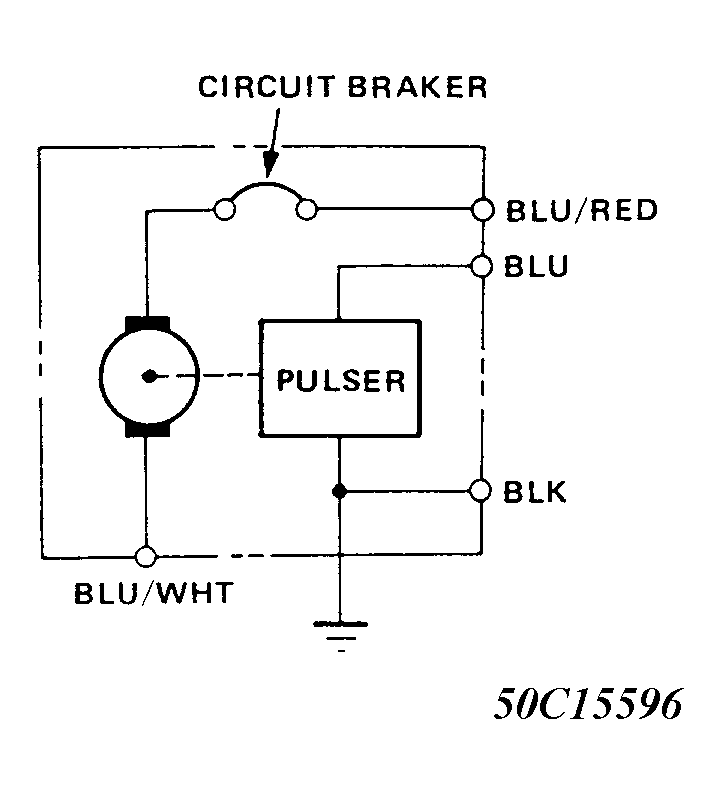

Fig 1: Pulser Test Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
