Rear Wiper Motor Test: Integra

  1. Remove hatch trim panel. Unplug 4-pin connector. Connect battery positive to terminal No. 2. Connect terminal No. 4 to ground. See Fig 1 . If motor fails to run, replace motor.
  2. Check for continuity between specified terminals. Replace motor if continuity is not as specified.

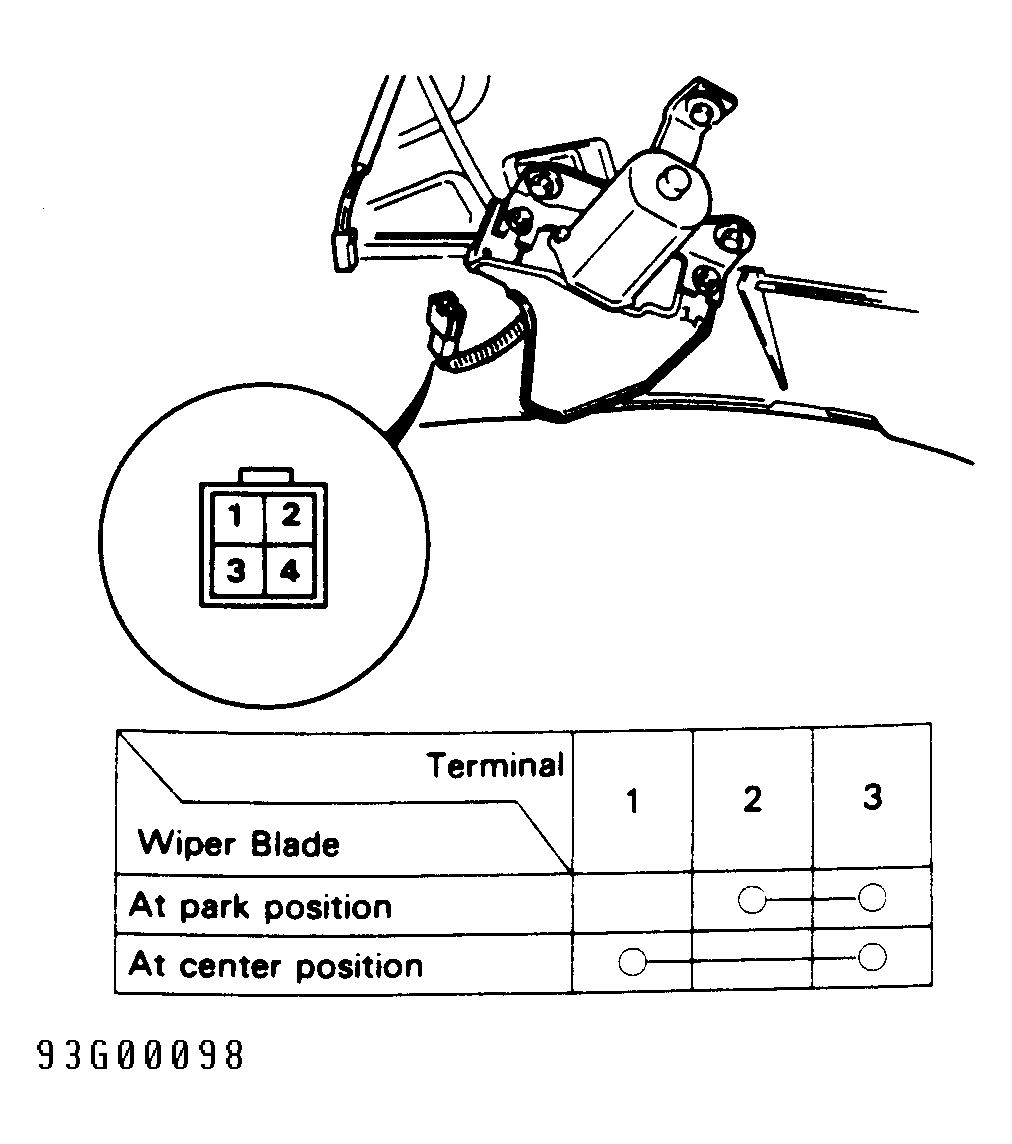

Fig 1: Testing Rear Wiper Motor (Integra)
G93G00098Courtesy of AMERICAN HONDA MOTOR CO., INC.
