Wiper/Washer Switch Test: Integra

Remove horn pad and steering wheel. Remove upper and lower steering column covers. Unplug 6-pin and 8-pin connectors from wiper/washer switch. Using an ohmmeter, check for continuity between indicated terminals in each switch position. See Fig 1 . If wiper/washer switch does not operate as specified, replace switch.

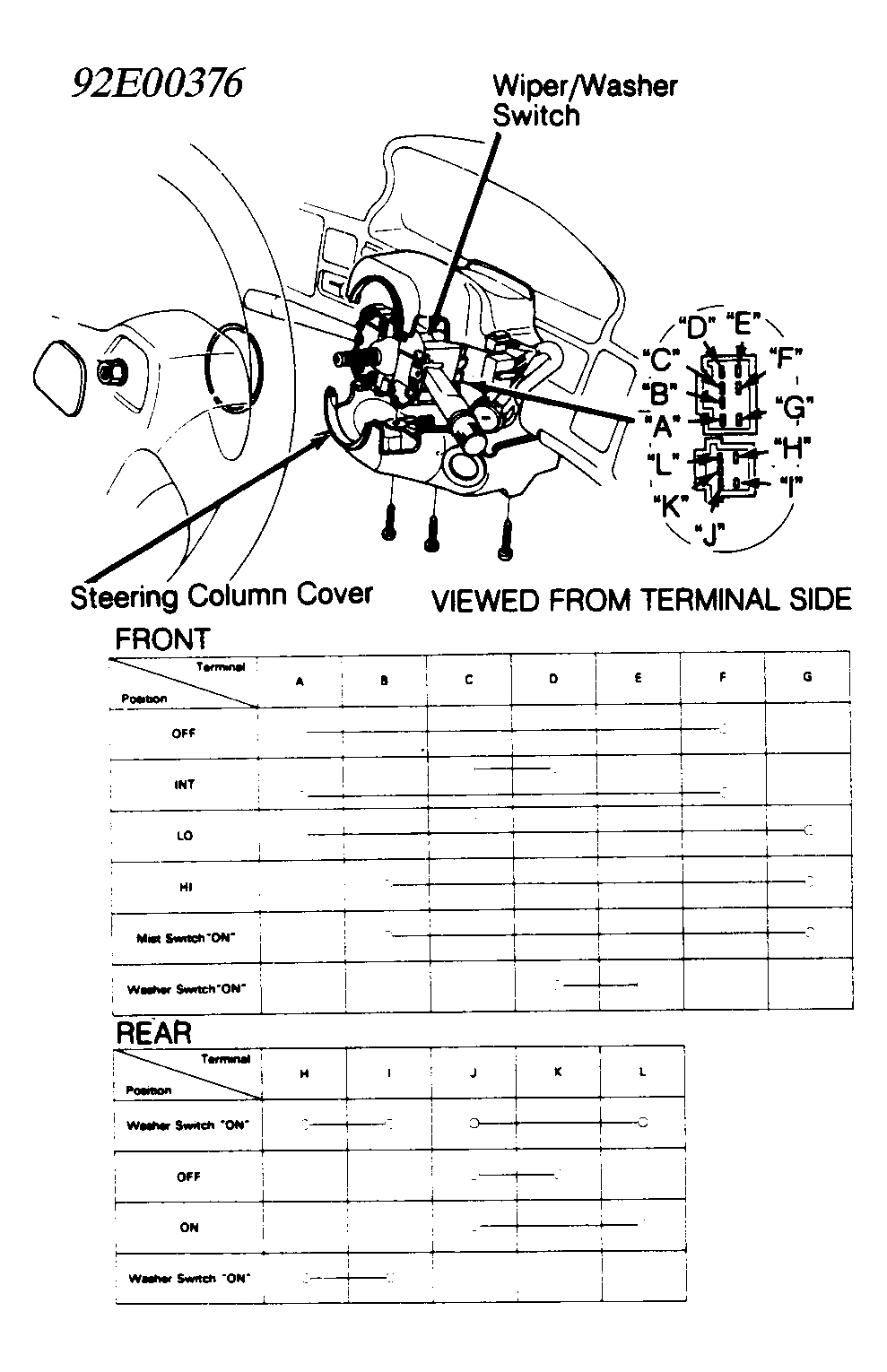

Fig 1: Testing Windshield Wiper/Washer Switch (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
