Wiper/Washer Switch Test: Vigor

Remove lower dashboard panel. Unplug wiper/washer 10-pin connector. Using an ohmmeter, check for continuity between indicated terminals in each switch position. See Fig 1 . If wiper/washer switch does not operate as specified, replace switch.

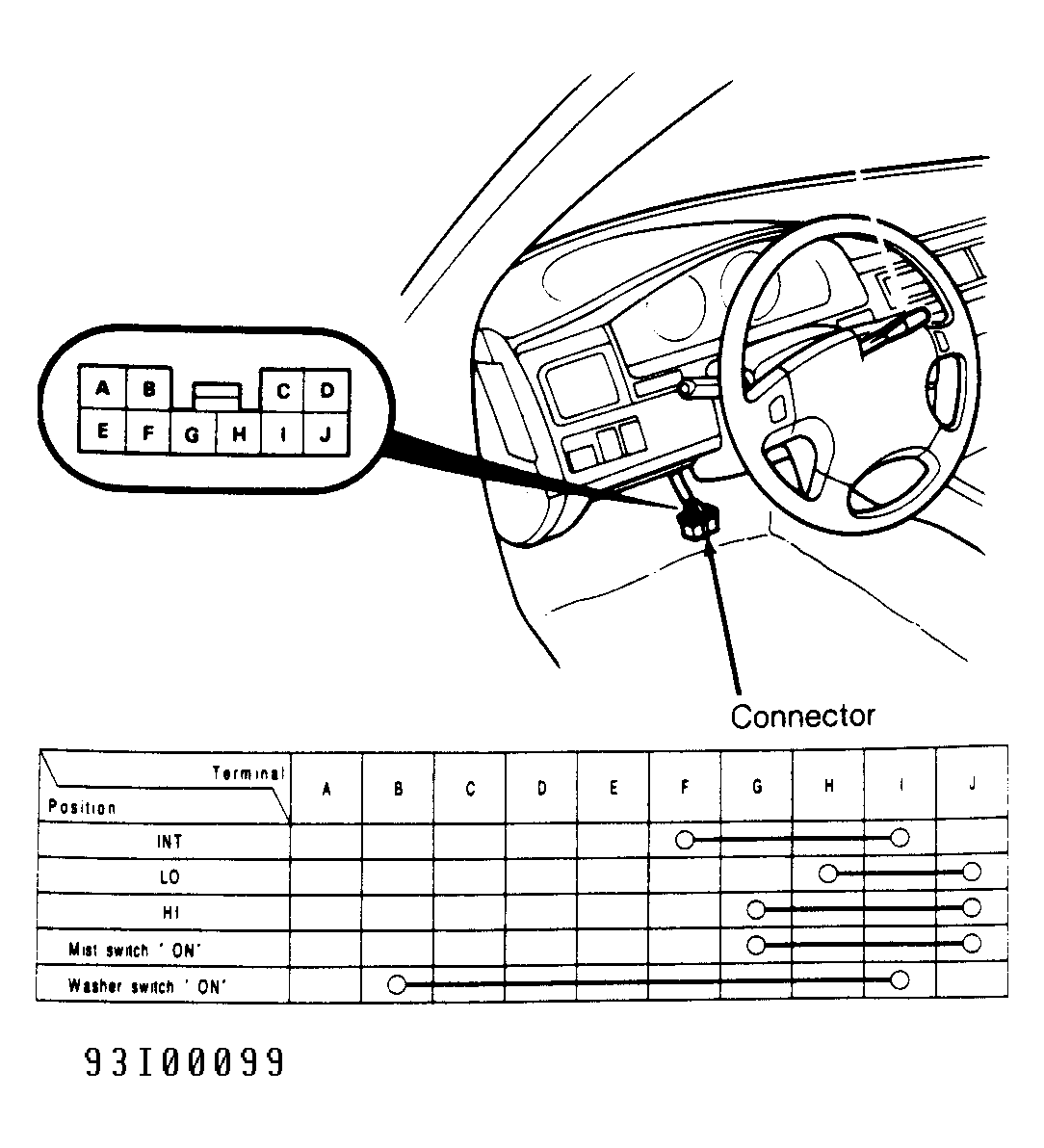

Fig 1: Testing Windshield Wiper/Washer Switch (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
