Rear Lock Position Switch Test

Remove the center pillar lower trim panel.
Disconnect the 2-P connector from the shoulder buckle motor and the 4-P connector from the rear lock position switch see Fig 3 .
Check for continuity between the terminals in each buckle position see Fig 1 and Fig 2 .

NOTE: When a battery is connected to terminals (No. 1 and No. 2), the shoulder buckle motor will run. Consequently, the shoulder buckle will move back and forth

CAUTION: When the motor stops running, disconnect a battery lead immediately.

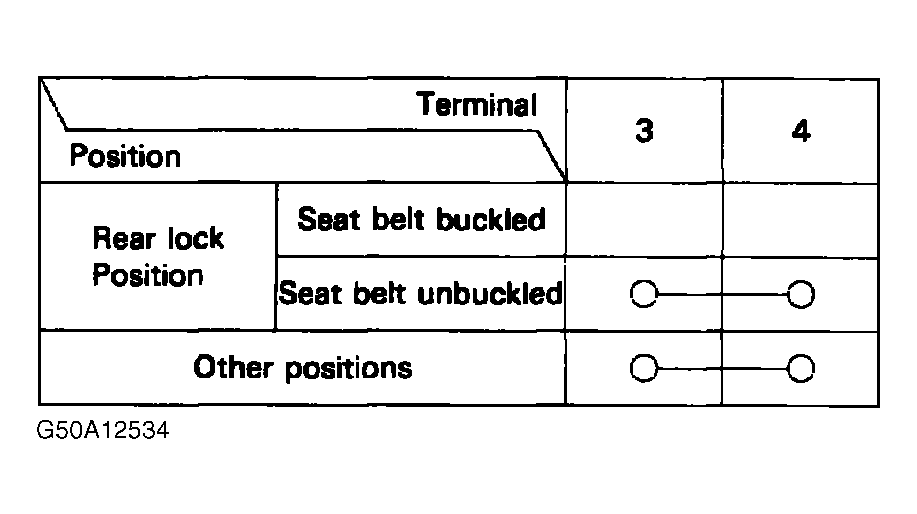

Fig 1: Shoulder Seat Belt Switch Connector Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

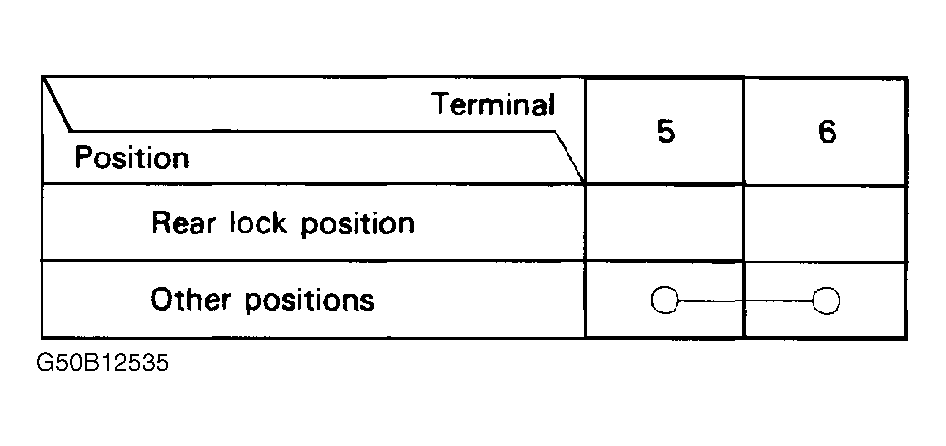

Fig 2: Anchor Switch Connector Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

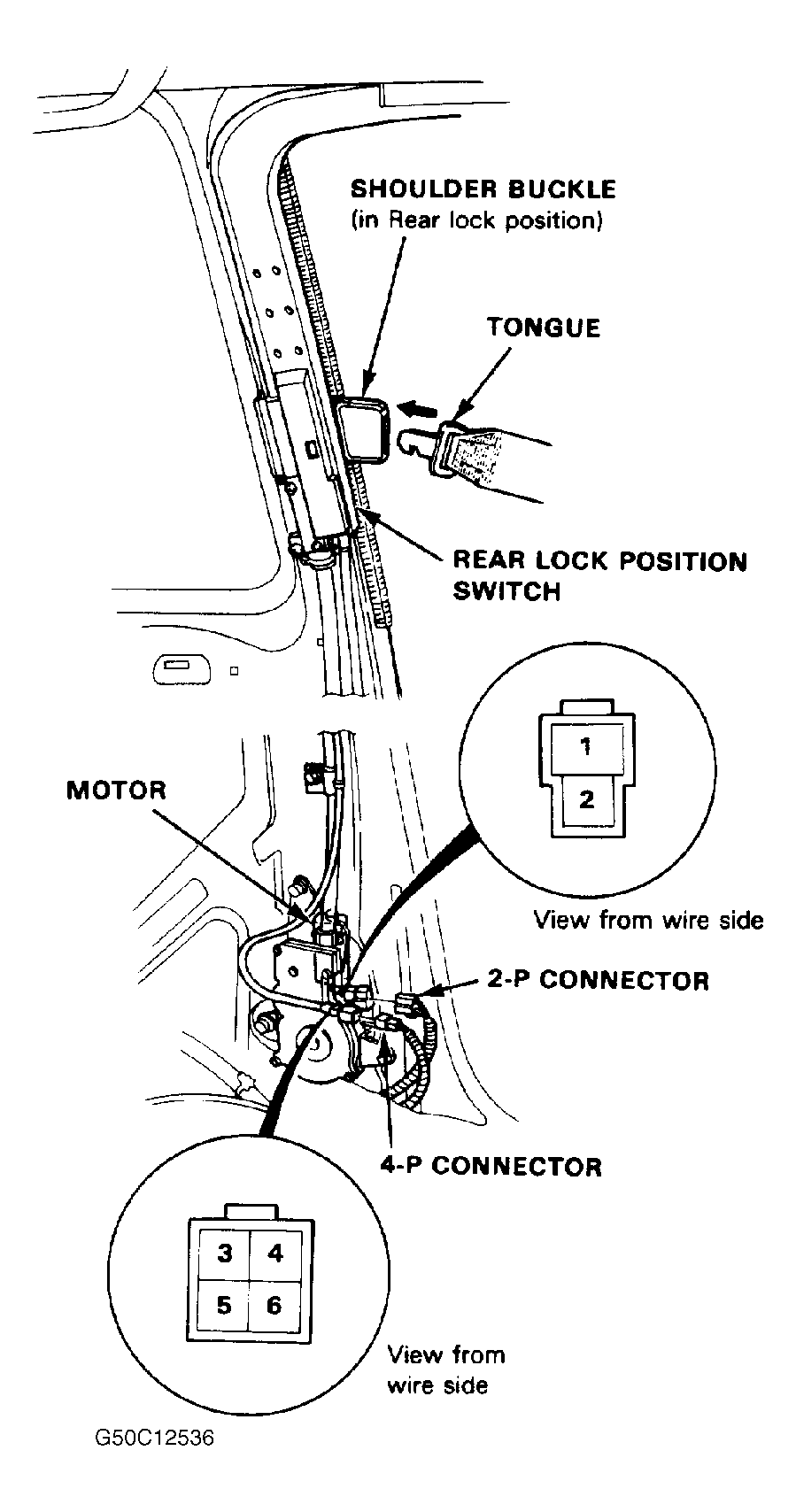

Fig 3: Shoulder Buckle Switch Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
