Torque Specifications
NOTE:

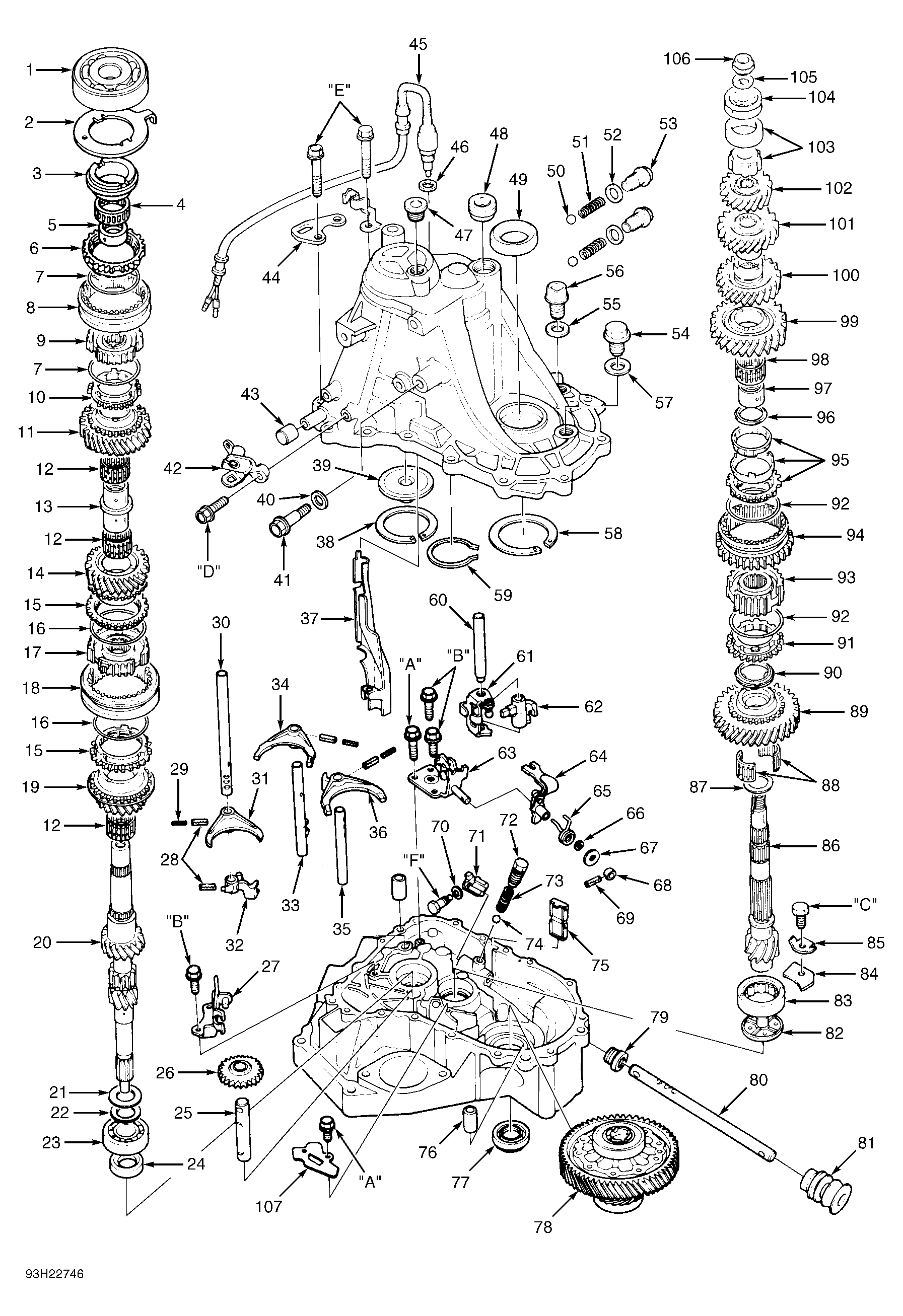

Refer to Figure
for torque specifications not listed in TORQUE SPECIFICATIONS
.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) |
|---|---|
| Back-Up Light Switch Bolt | 18 (25) |
| Bearing Retainer Plate Bolt | 11 (15) |
| Countershaft Lock Nut | 80 (108) |
| Clutch Cable Bracket Bolt | 18 (25) |
| Oil Drain Plug | 30 (40) |
| Oil Filler Plug | 33 (45) |
| Reverse Idler Gear Shaft Bolt | 41 (55) |
| Reverse Shift Lock Bolt | 11 (15) |
| Shift Arm Special Bolt | 11 (15) |
| Shift Rod Guide Bolt | 22 (30) |
| Transmission Housing Bolt | 21 (28) |
| 32-mm Sealing Bolt | 18 (25) |
| INCH Lbs. (N.m) | |
| Harness Clamp Bolt | 106 (12) |
| Shift Arm Bolt 6-mm | 106 (12) |
