Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Block | ||
| Engine Compartment | On left inner fender panel, behind battery. | |
| Passenger Compartment - View of Fuse Relay Block | Behind left kick panel. See Figure . | |
| Driver's Side of Dash | Behind left kick panel. See Figure . | |

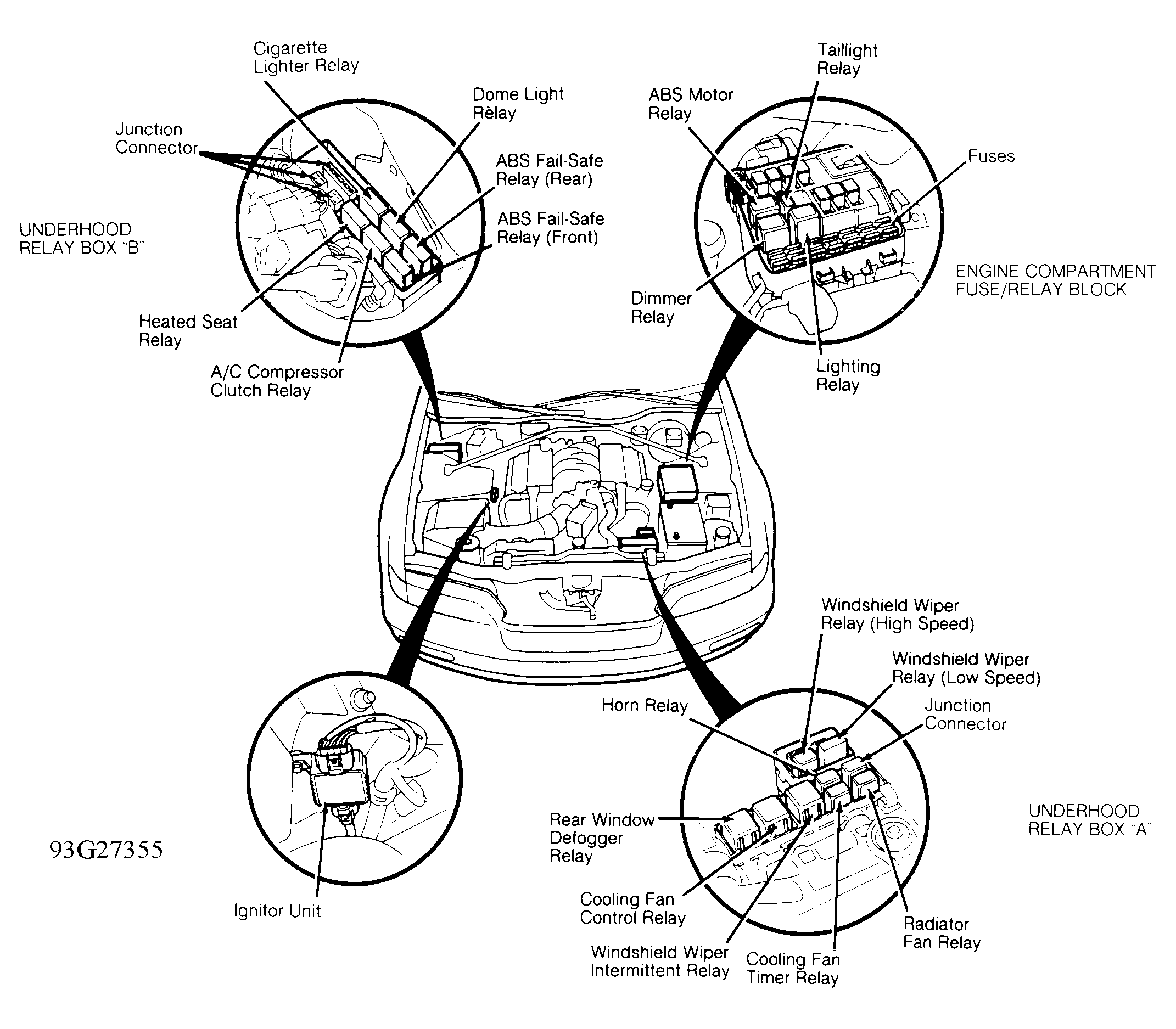

| Underhood Relay Box | ||
| "A" | On left top radiator support, near battery. See Figure . | |
| "B" | Right rear of engine compartment, near strut tower. See Figure . | |
