A/T Shift Position Signal

This signals the PGM-FI ECU when the transmission is in Neutral or Park. See Fig 1 and Fig 2 .

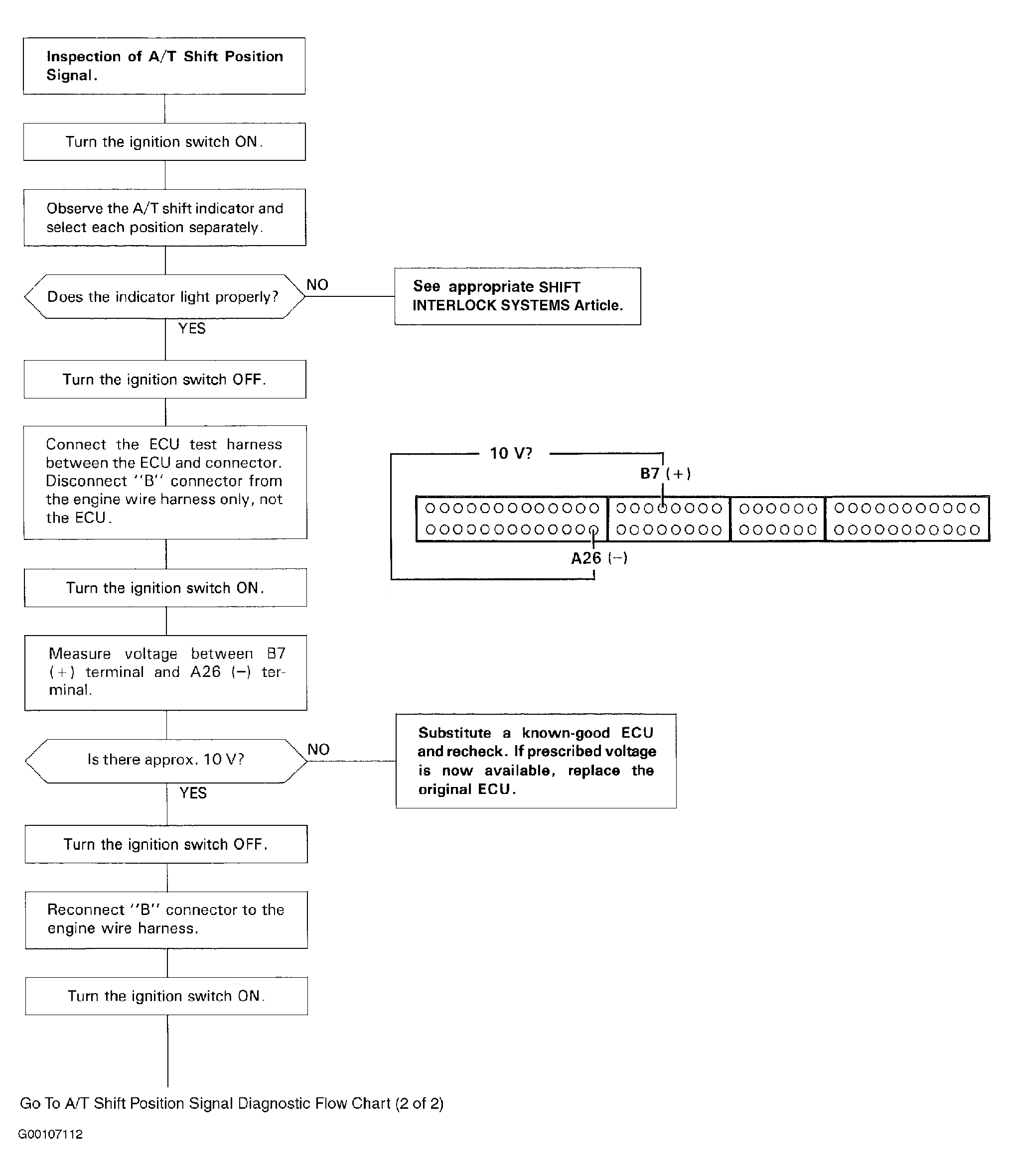

Fig 1: A/T Shift Position Signal Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

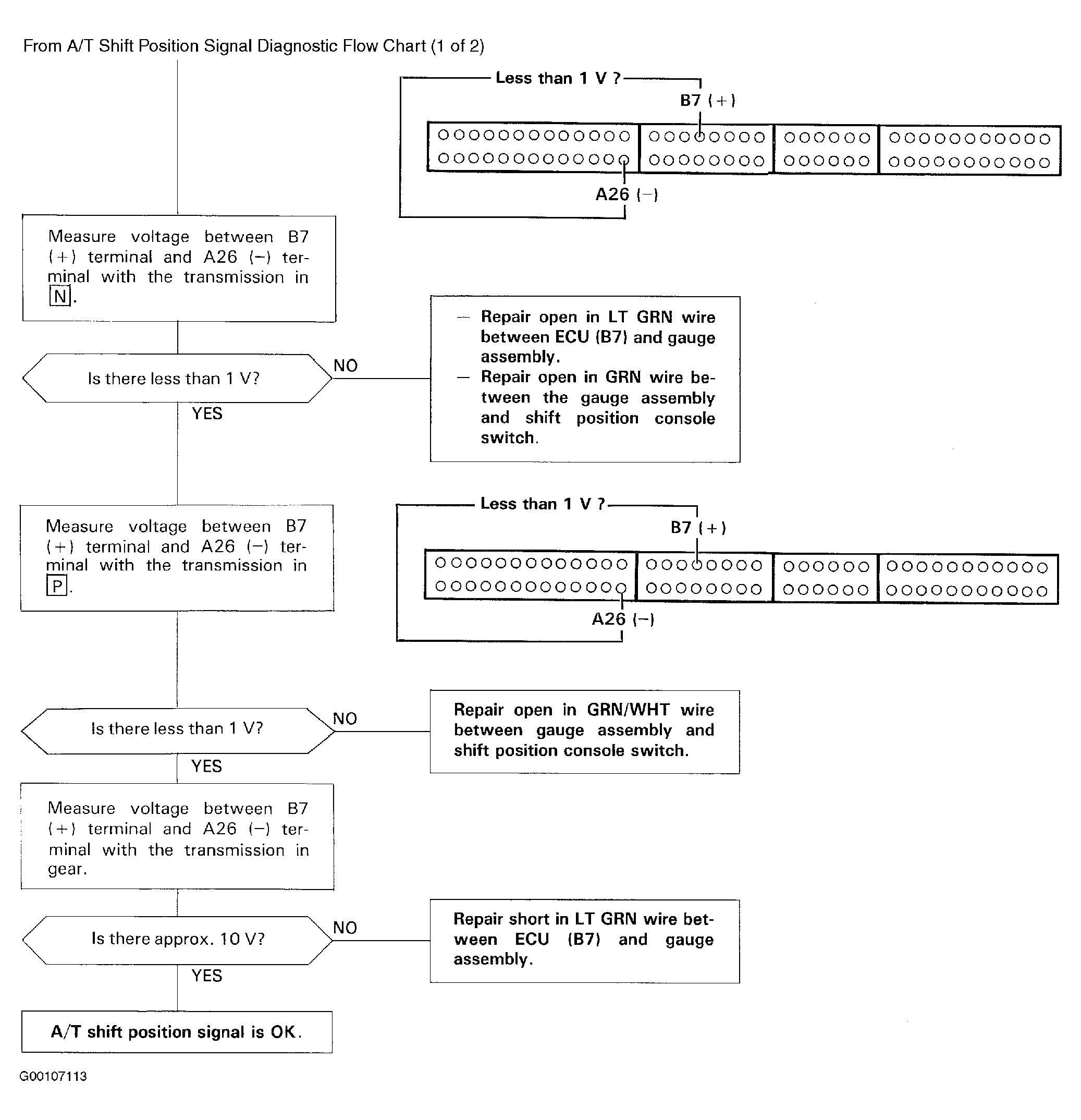

Fig 2: A/T Shift Position Signal Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
