Wiring Diagrams

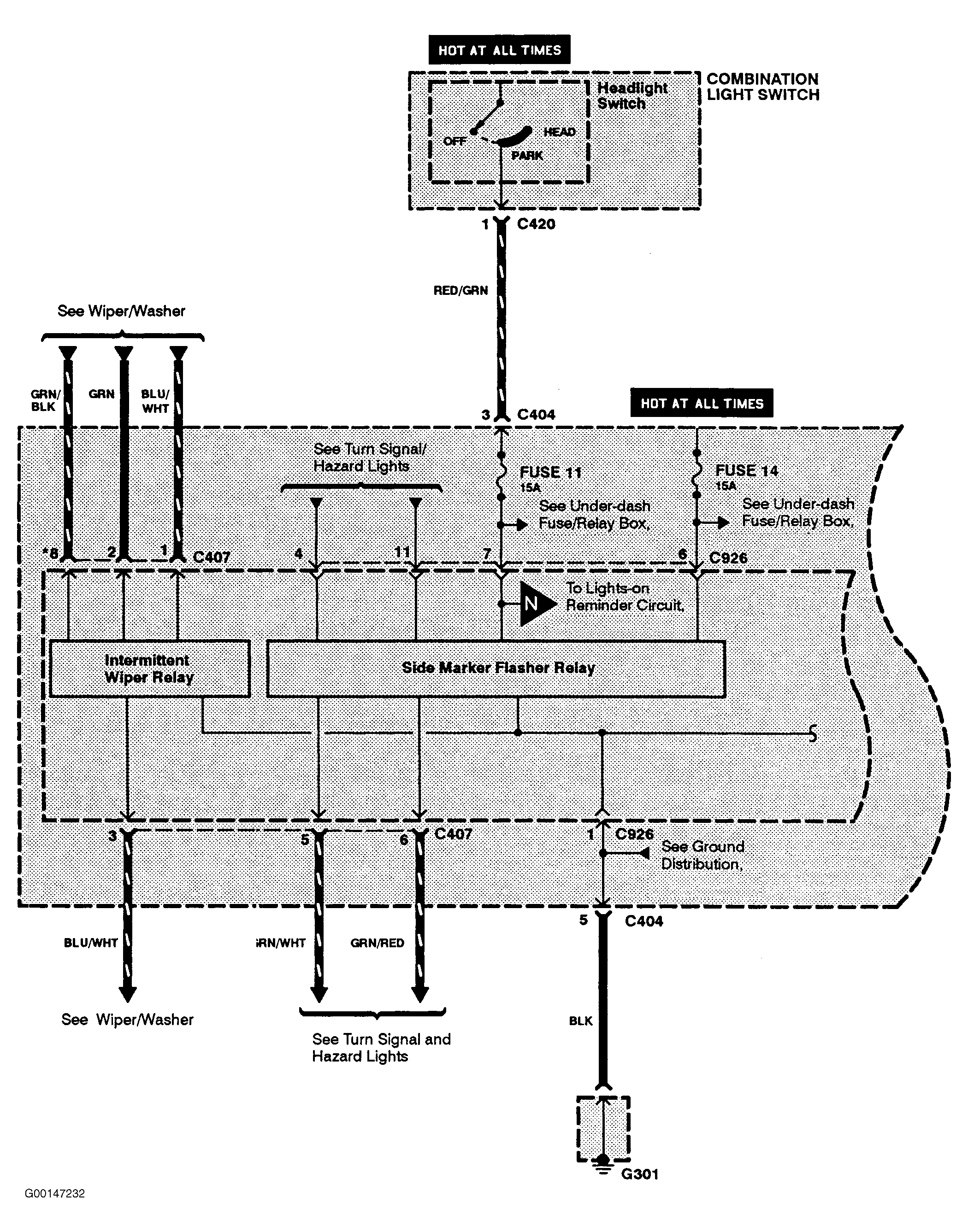

Fig 1: Integrated Control Circuit Wiring Diagram (1993 - 1 Of 3)
G00147232Courtesy of AMERICAN HONDA MOTOR CO., INC.

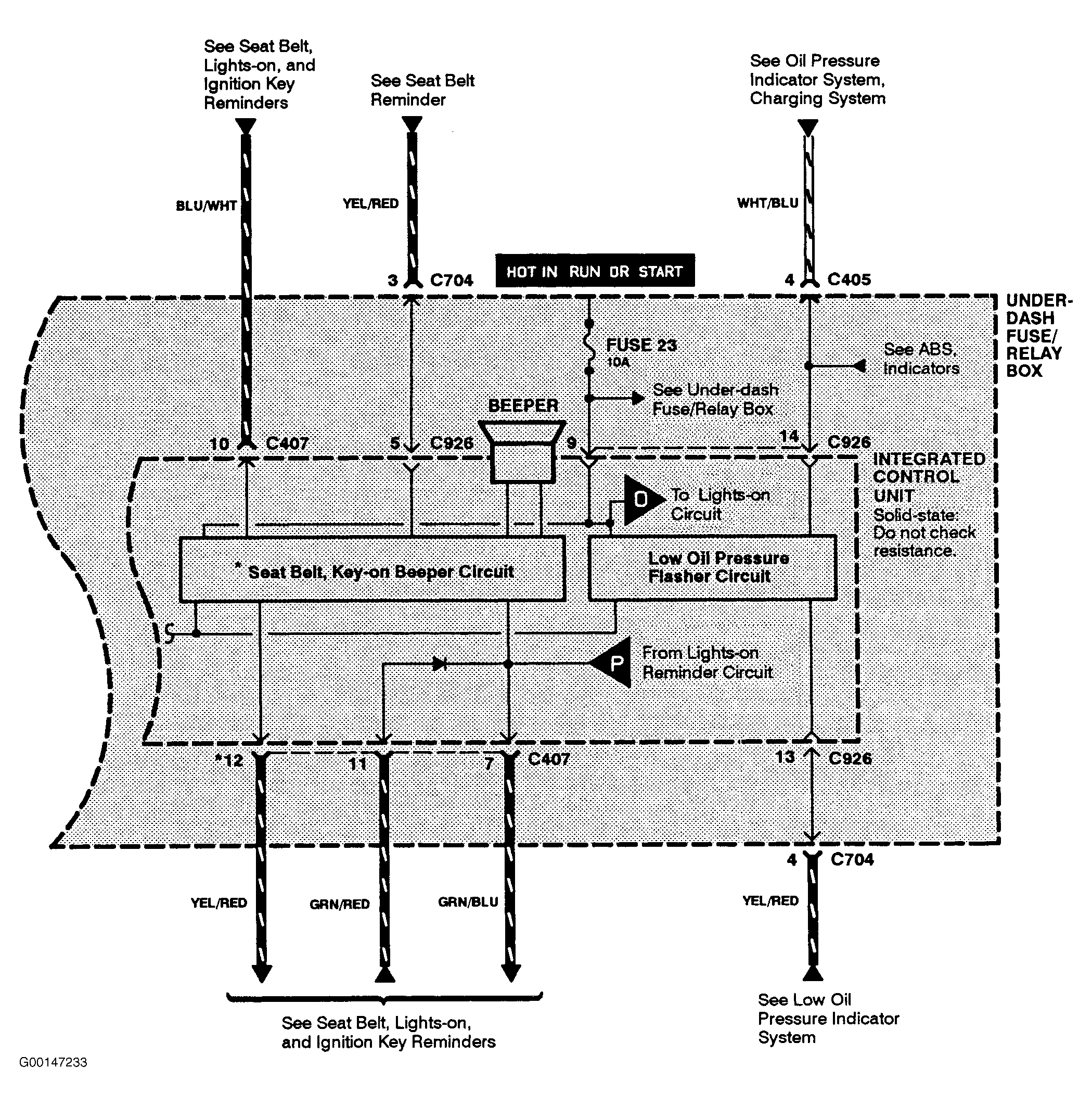

Fig 2: Integrated Control Circuit Wiring Diagram (1993 - 2 Of 3)
G00147233Courtesy of AMERICAN HONDA MOTOR CO., INC.

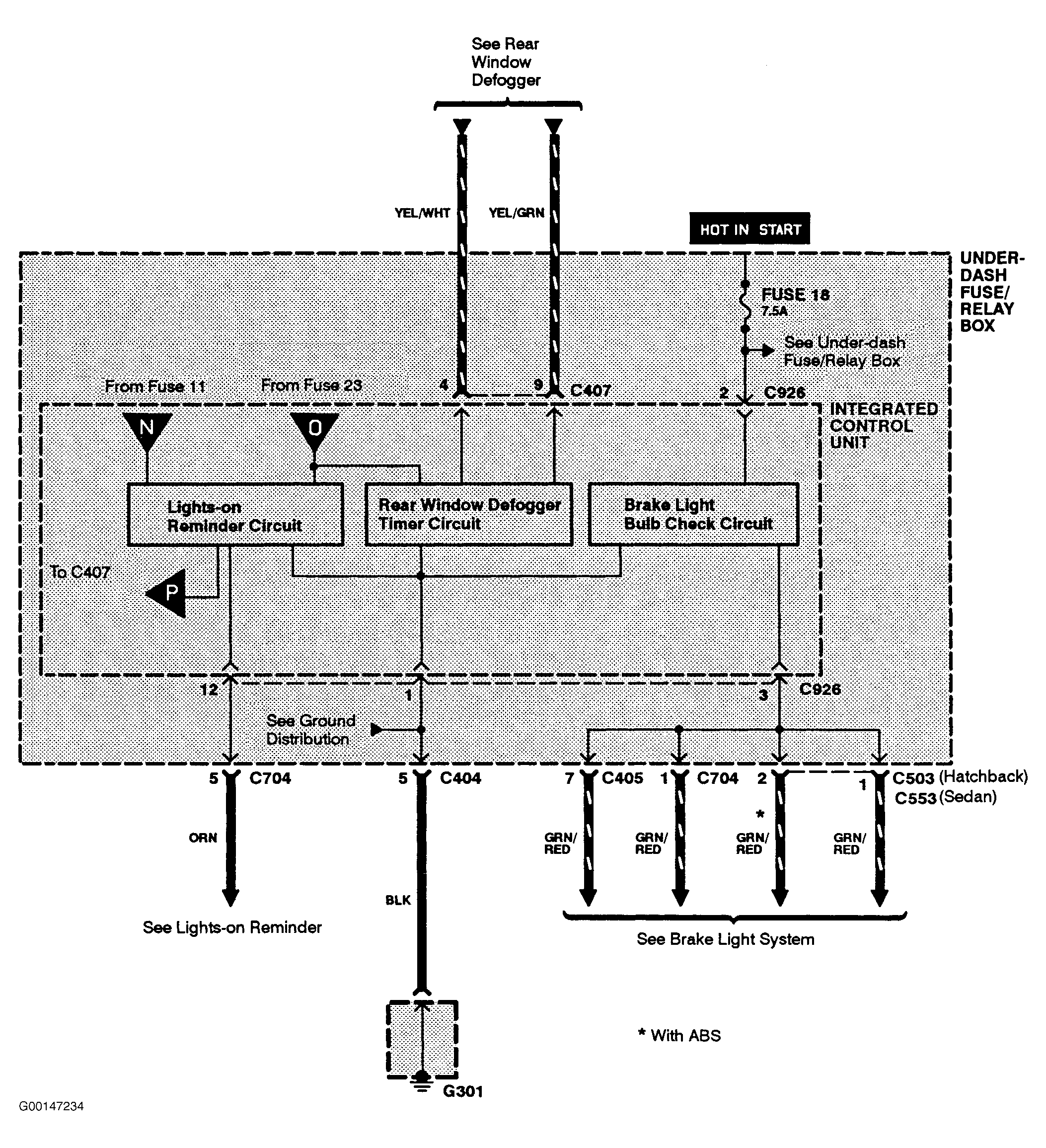

Fig 3: Integrated Control Circuit Wiring Diagram (1993 - 3 Of 3)
G00147234Courtesy of AMERICAN HONDA MOTOR CO., INC.
