Control Units
CONTROL UNITS

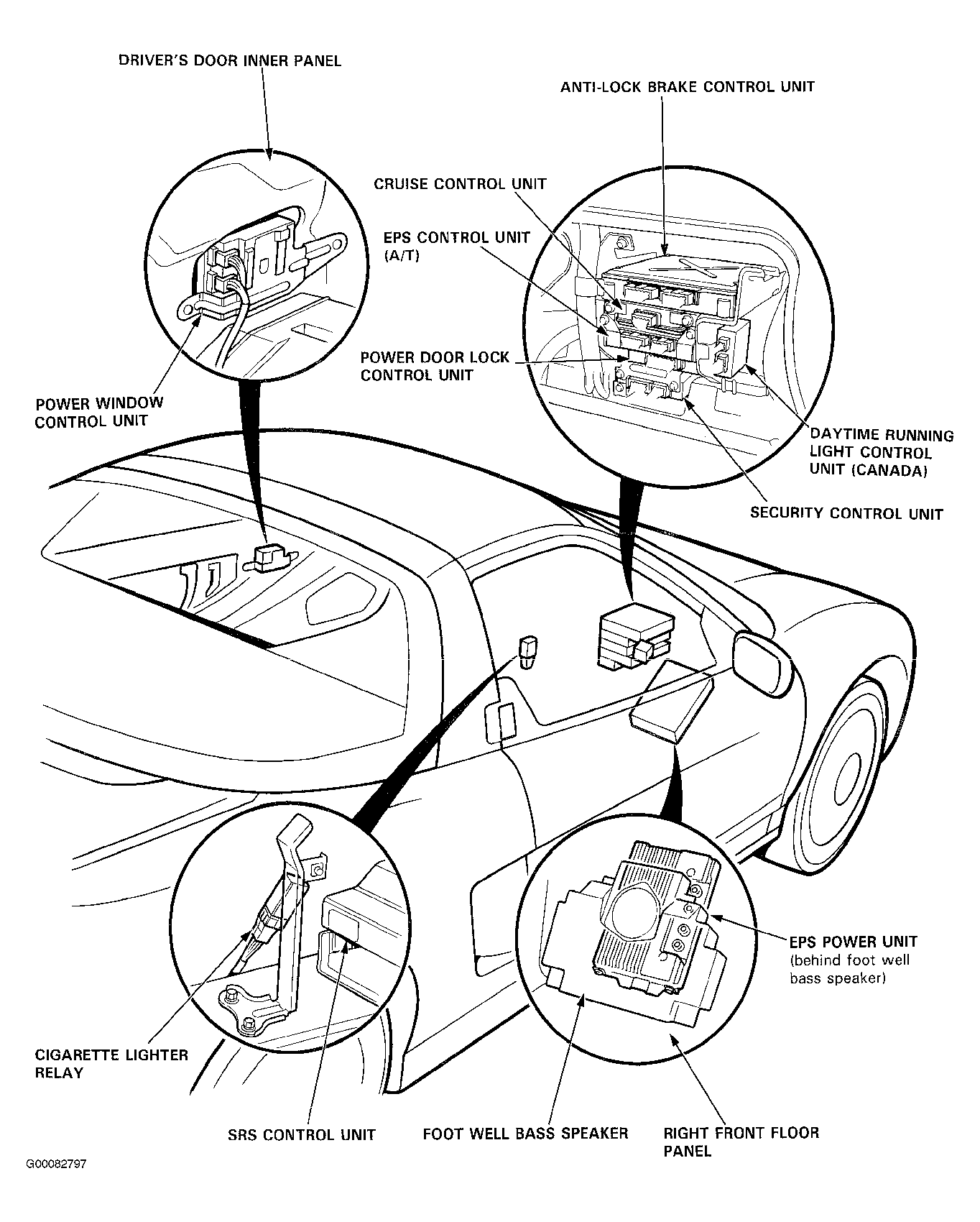

| Component | Component Location |
|---|---|
| Anti-Lock Brake System (ABS) Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Automatic Transmission Control Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure . |
| Cooling Fan Control Unit | Behind Seat, On Center Of Rear Bulkhead, Under Panel. See Figure . |
| Cruise Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind Right Side Of Dashboard. See Figure . |
| Door Lock Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Electronic Power Steering (EPS) Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Interlock Control Unit | Behind Seat, On Center Of Rear Bulkhead. See Figure . |
| Power Door Lock Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Power Window Control Unit | Front Of Driver's Door. See Figure . |
| PGM F/I Control Unit | Behind Seat, On Right Side Of Rear Bulkhead. See Figure . |
| Retractable Headlight Control Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure . |
| Security Control Unit | Behind Right Side Of Dashboard. See Figure . |
| Supplemental Restraint System (SRS) Control Unit | Below Center Of Dashboard, Under Front Of Console. See Figure . |
| Traction Control (TCS) Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure . |
